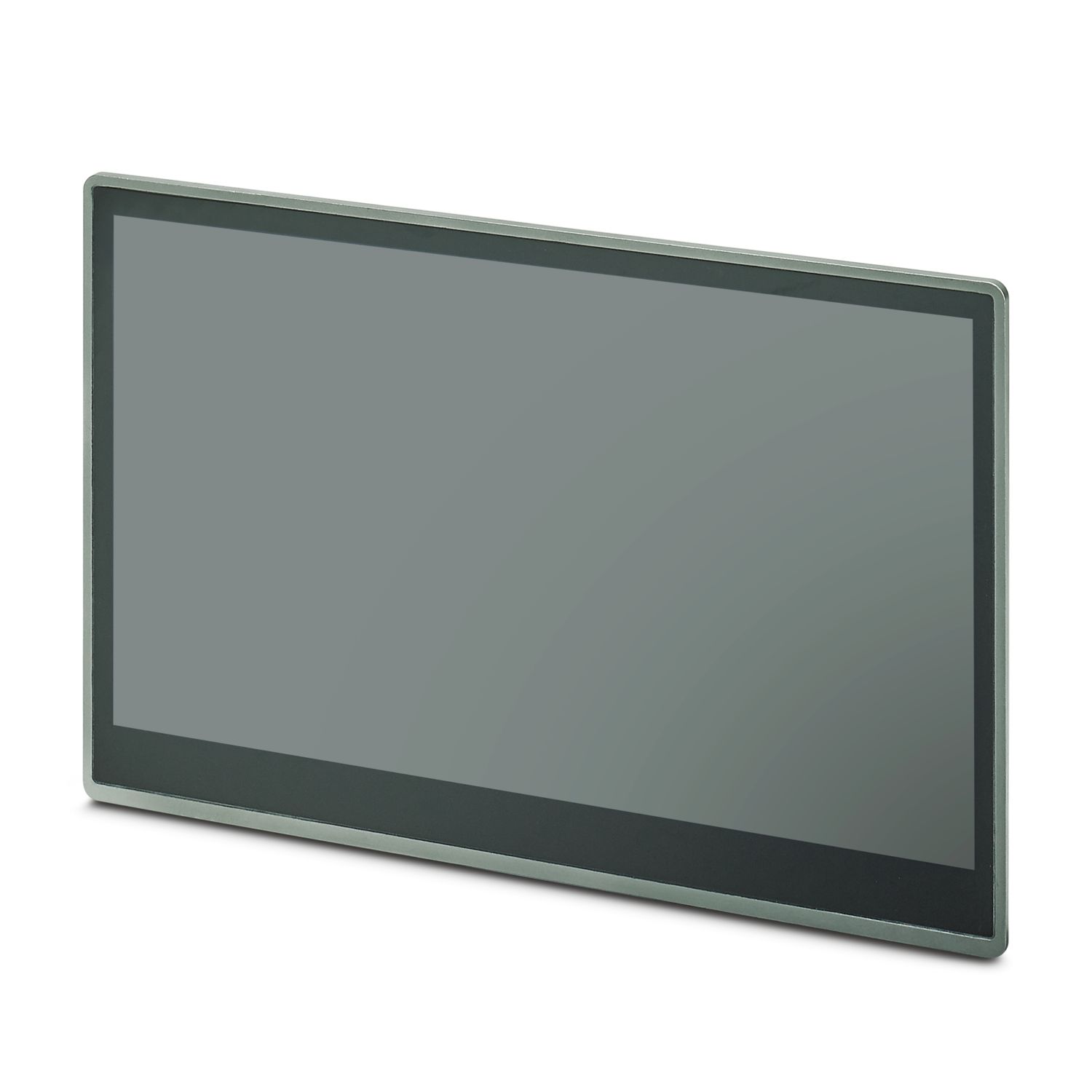

FPM 15.6 69K - Monitor - 1261660

Notes

Order information:	Please note that an adapter listed under “Accessories” is required to operate the device.
Note on application
Note on application	Only for industrial use

Product properties

Product type	Monitor
Computer data
Processor	without processor
Operating system	without operating system
RAM	without RAM
Data storage system	without data storage
Cooling	passive
Slots	without slots
Display
Display type	39.6 cm / 15.6"-TFT
Screen resolution	1920 x 1080 Pixel(s) (Full HD)
Touch technology	projective-capacitive (PCAP)
Display lighting type	LED
Brightness	400 cd/m²
MTBF	50000 h
Color spectrum	16.2 million colors
Reading angle left	90.00 °
Reading angle right	90.00 °
Reading angle top	90.00 °
Reading angle bottom	90.00 °

System properties

User software	without user software

Electrical properties

Supply
Supply voltage	24 V DC
Supply voltage range	18 V DC ... 30 V DC

Interfaces

Interfaces	1x USB 2.0
Optional interfaces	Without optional interface
Monitor output	1x DisplayPort
Network	without network
Bus system	without bus system

Dimensions

External dimensions
Width / Height / Depth	372 mm / 239 mm / 31 mm

Material specifications

Material front plate	Glass (3 mm), hardened and non-reflective
Housing material	Stainless steel, fully enclosed

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP69K
Ambient temperature (operation)	0 °C ... 45 °C
Permissible humidity (operation)	10 % ... 85 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 85 % (non-condensing)
Shock	DIN EN 60068-2-27
Vibration (operation)	DIN EN 60068-2-6

Mounting

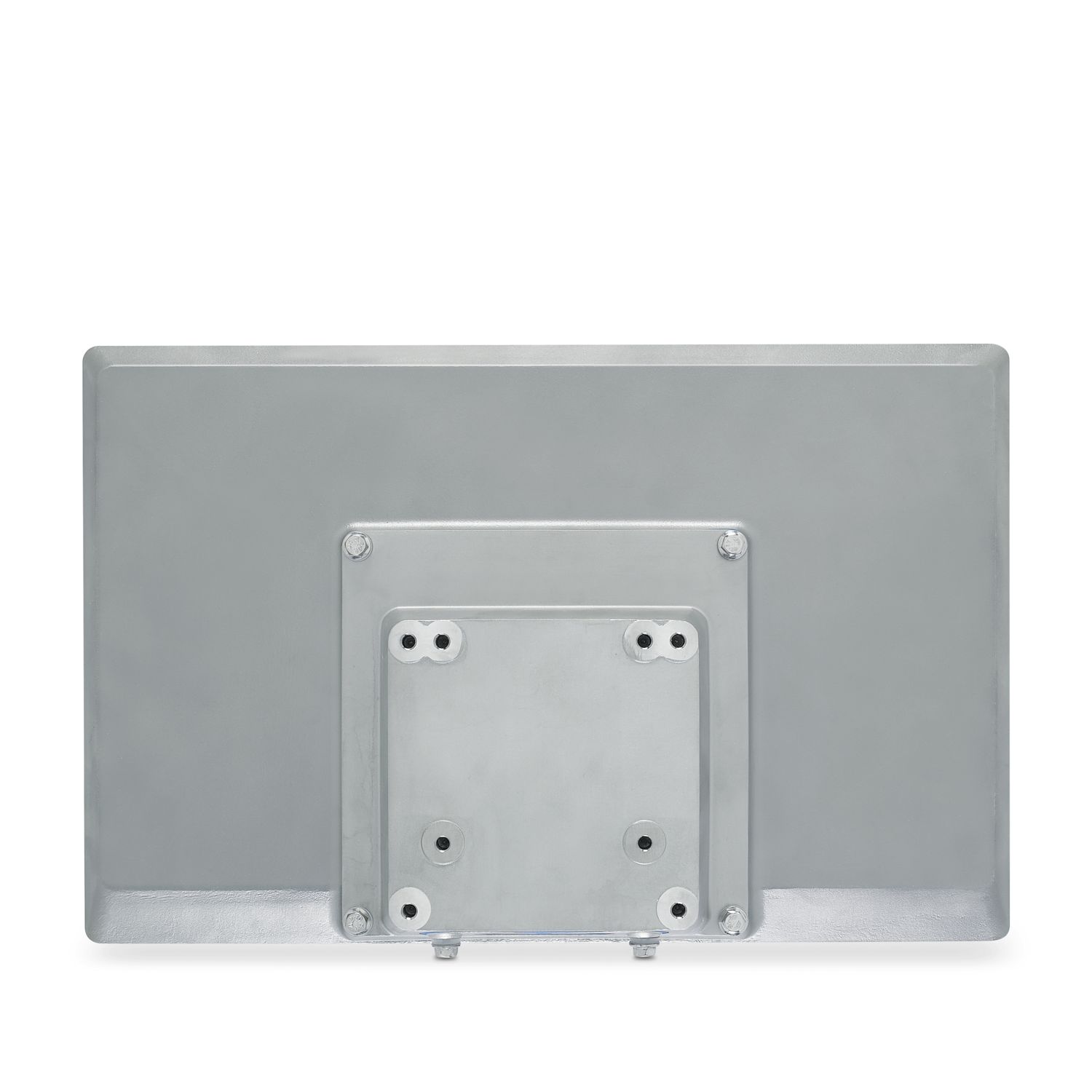

Mounting type	VESA holder (via adapter)

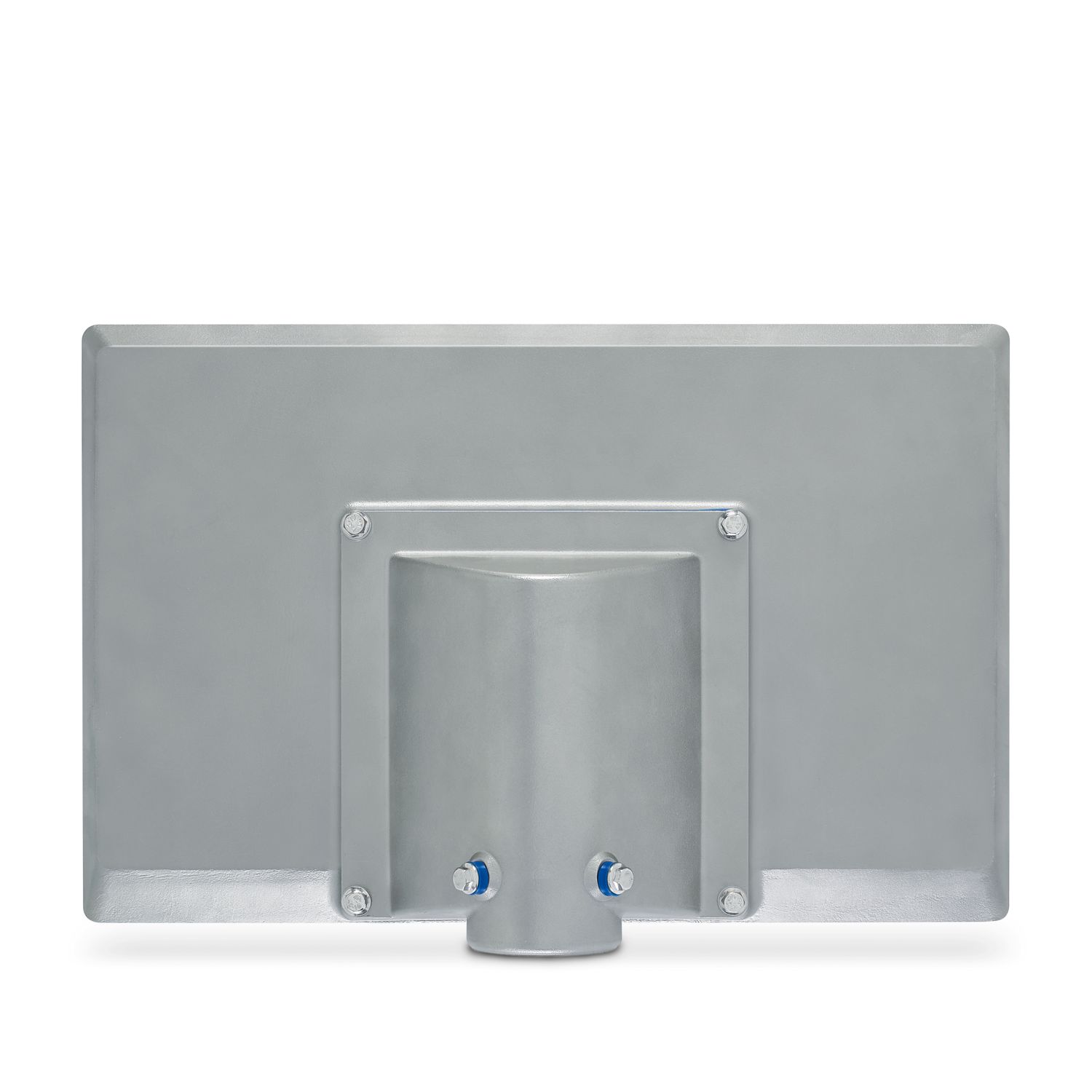

Mounting type		Tube mounting (via adapter)
Holder system	VESA MIS-D 100 C

Item number	1261660
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	DRBBAD
Product key	DRBBAD
GTIN	4063151371562
Weight per piece (including packing)	6 g
Weight per piece (excluding packing)	4.8 g
Country of origin	DE

ECLASS-13.0	19200201
ECLASS-15.0	19200201
