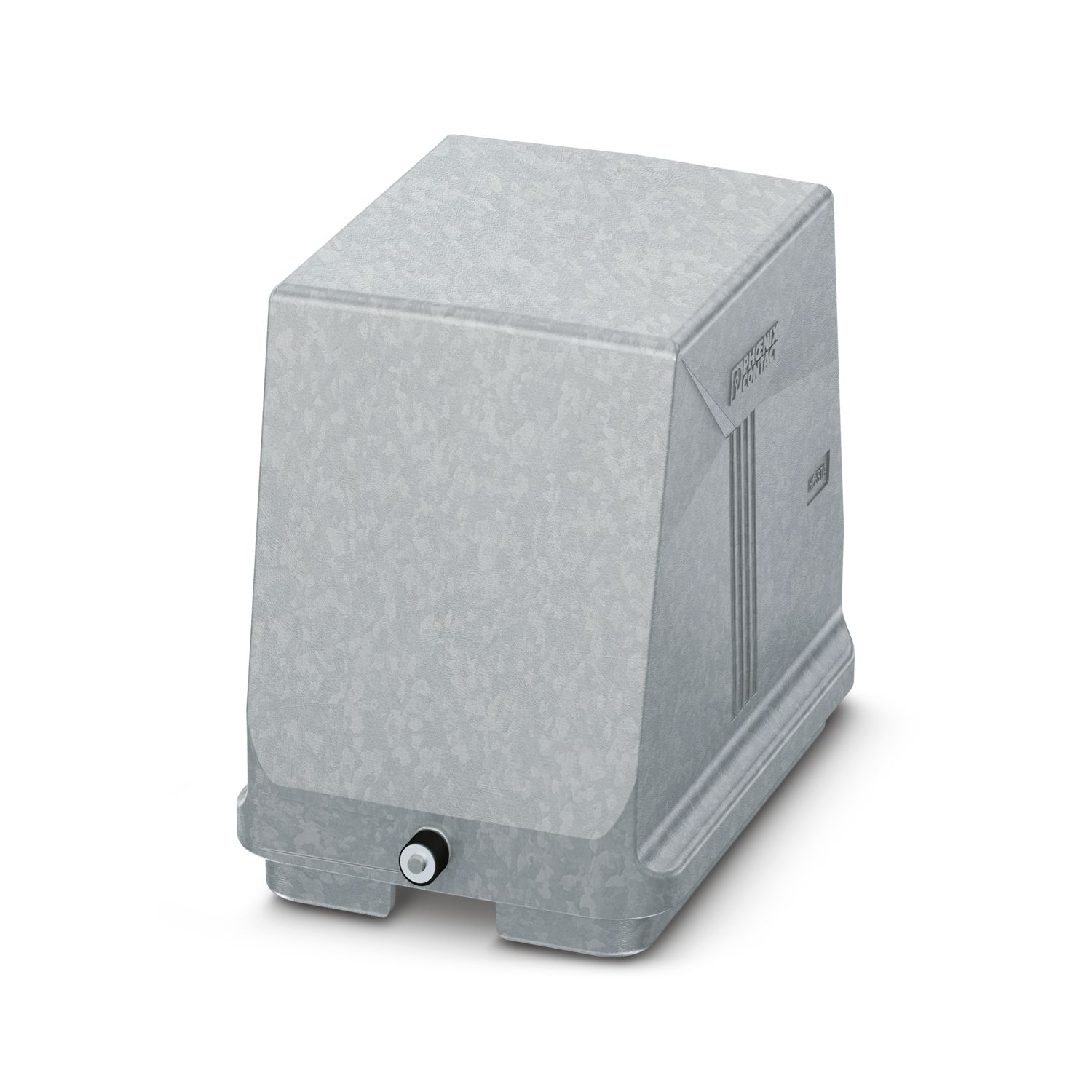

Housing - HC-STA-B48-HHFS-BLANK-EM-AL
1326510

Sleeve housing B48, for single locking latch, material: Die-cast aluminum, salt water resistant, variable, height: 107.5 mm, cable gland: none, Standard


Product Details




Type B48
Product type Housing with locking latch
Application Standard
Housing type Sleeve housing
Locking type for single locking latch
Cable outlet variable
Pg screw connection none

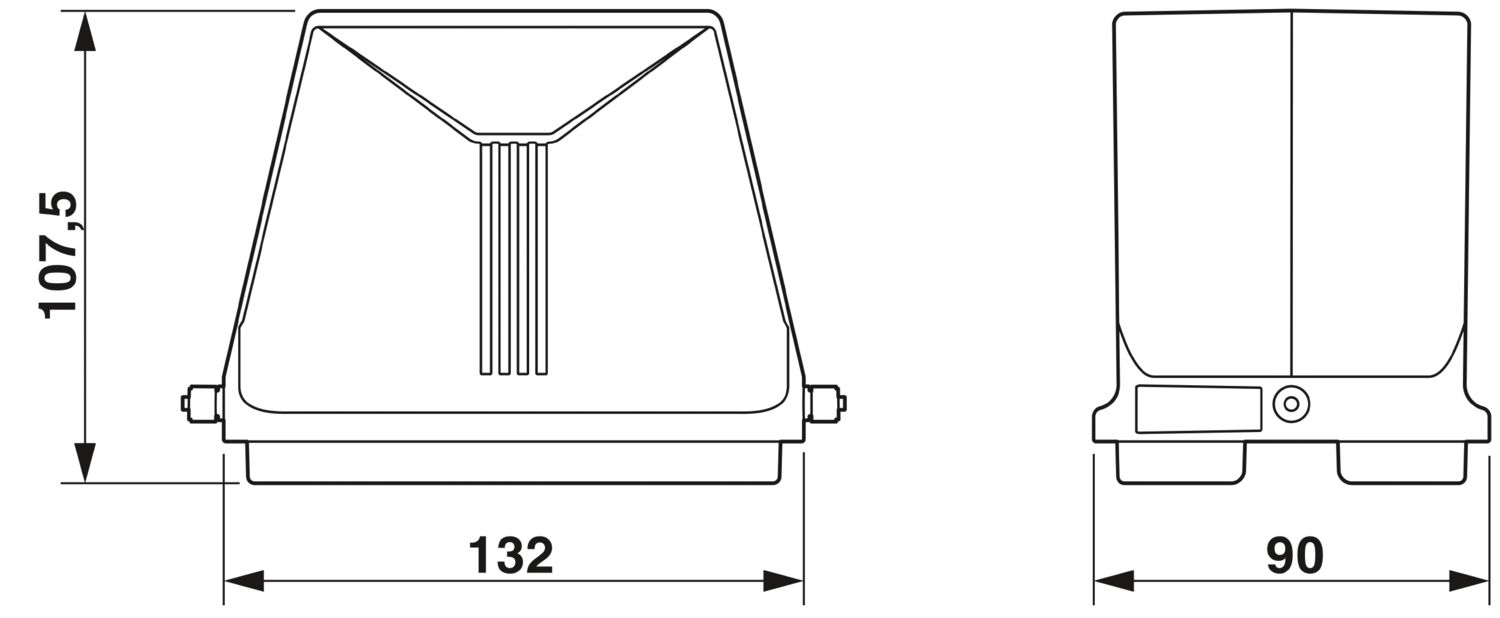

Dimensional drawing
Width 90 mm
Height 107.5 mm
Length 132 mm

Color gray aluminum
Housing surface material uncoated
Impact strength IK08
Housing material Die-cast aluminum, salt water resistant

Degree of protection IP66
IP67
Degree of protection 4 (UL 50e)
4X (UL 50e)
12 (UL 50e)
Impact strength IK08

Mechanical data
Locking type Pin

Item number 1326510
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BF7APB
Product Key BF7APB
GTIN 4063151617424
Weight per Piece (including packing) 609.8 g
Weight per Piece (excluding packing) 609.8 g
Customs tariff number 85389099
Country of origin CN


ECLASS

ECLASS-11.0 27440202

ETIM

ETIM 8.0 EC000437

UNSPSC

UNSPSC 21.0

cUL Recognized

Approval ID: E255026

UL Recognized

Approval ID: E255026

cULus Recognized


China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Your advantages

good shielding in the event of electromagnetic interference
