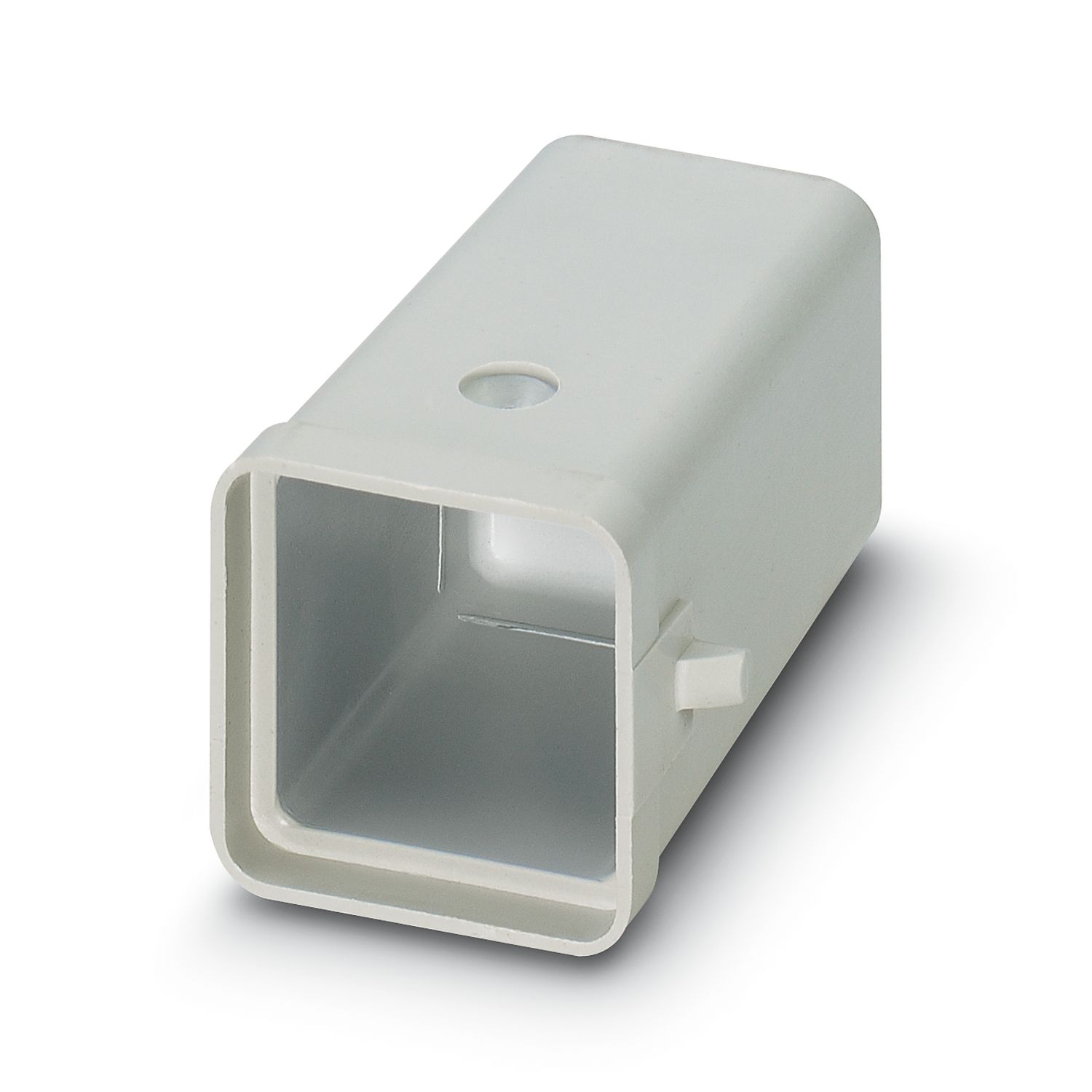

Housing - HC-D 7-TFL-57/O1PG11G/PA
1675450

Sleeve housing D7, for single locking latch, material: PA, cable outlets: 1, straight, 1x Pg11, height: 57 mm, cable gland: none, Standard


Product Details




General for contact inserts HC-A03, A04, D07, D08, Q02, Q03, Q04, Q05, Q07, Q12

Type D7
Product type Housing with locking latch
Application Standard
No. of cable outlets 1
Type of the screw connection 1x Pg11
Housing type Sleeve housing
Locking type for single locking latch
Cable outlet straight
Pg screw connection none

Dimensional drawing
Width 34 mm
Height 57 mm
Length 26.5 mm

Housing surface material PA, light gray
Housing material PA

Degree of protection IP54
IP65 (with sealing screw)
Ambient temperature (operation) -40 °C ... 125 °C

Mechanical data
Type of the screw connection 1x Pg11

Item number 1675450
Packing unit 10 pc
Minimum order quantity 1 pc
Sales Key BF7AAE
Product Key BF7AAE
Catalog Page Page 490 (C-4-2015)
GTIN 4017918150167
Weight per Piece (including packing) 22.49 g
Weight per Piece (excluding packing) 22 g
Customs tariff number 85472000
Country of origin DE


ECLASS

ECLASS-9.0 27440202
ECLASS-11.0 27440202

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
