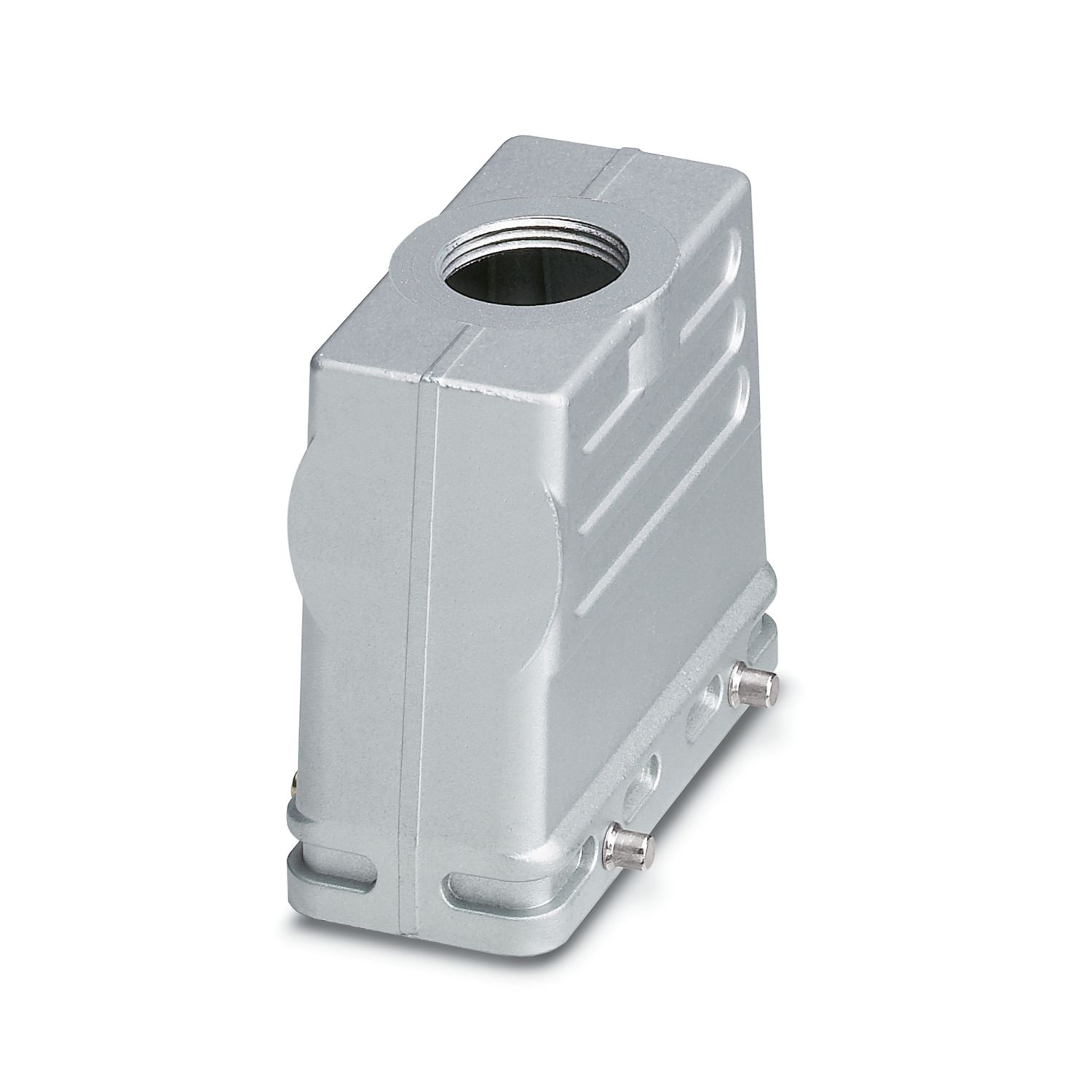

EMC housing - HC-B 16-TFQ-76/O1STM40G-EMV

HEAVYCON sleeve housing B16, for double locking latch, height 76 mm, with thread M40, straight cable outlet, EMC version

Product Details

General For contact inserts HC-B16, BB32, D40, DD72, HS6, M, K

Type B16
Product type Housing with locking latch
Application EMC
No. of cable outlets 1
Type of the screw connection 1x M40
Housing type Sleeve housing
Locking type for double locking latch

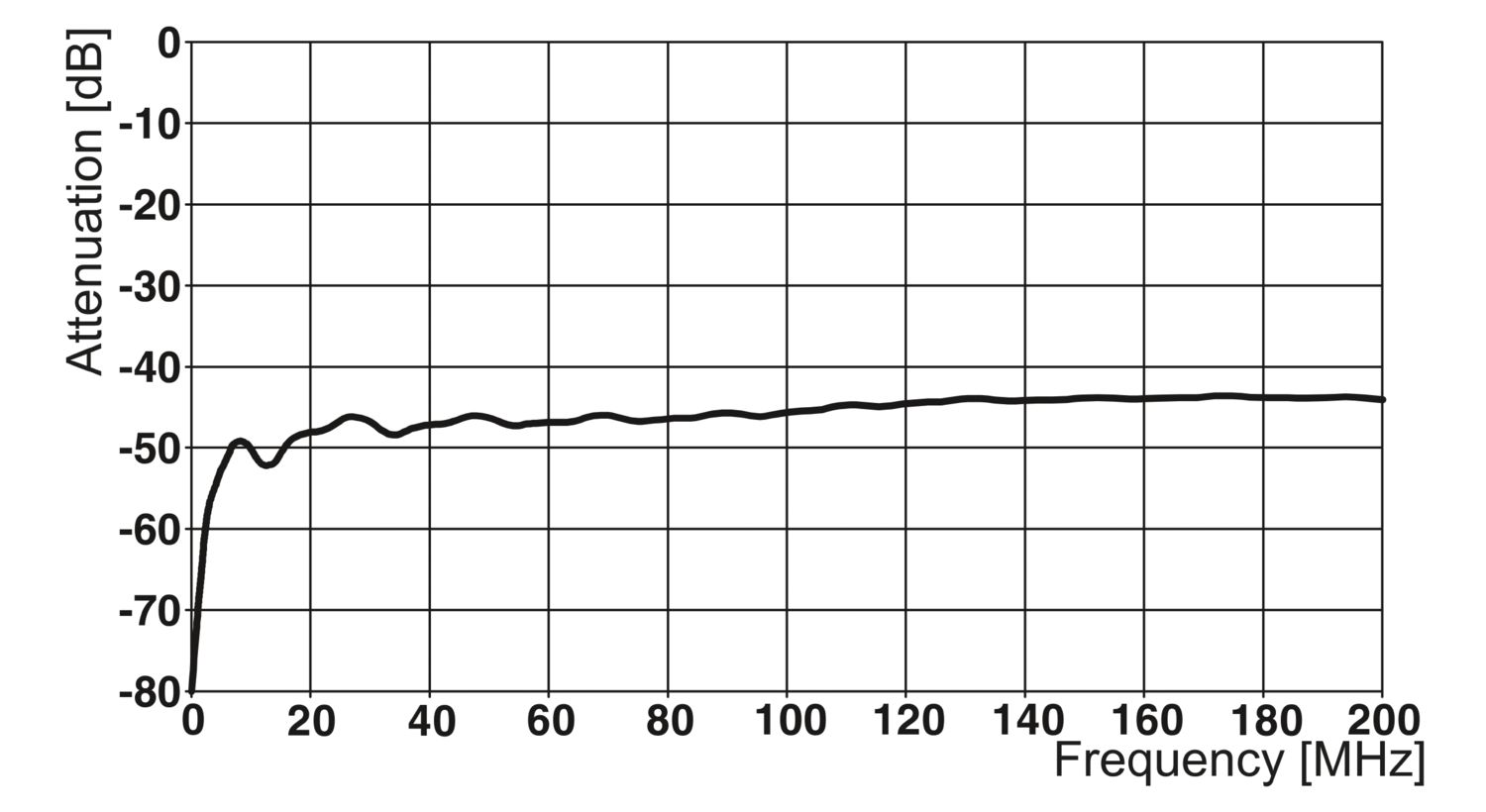

Shielded yes
Cable outlet straight
Pg screw connection none

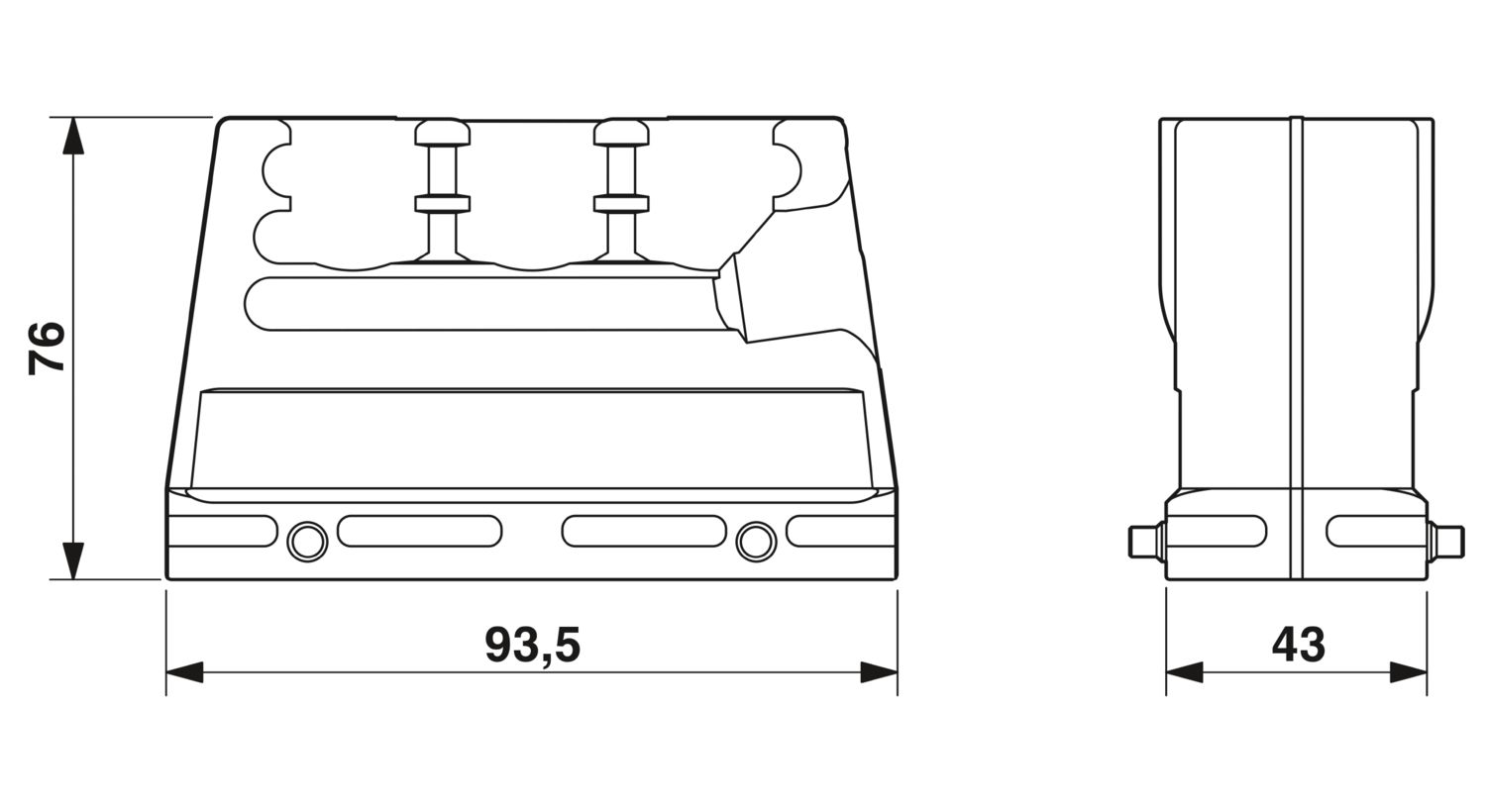

Dimensional drawing
Width 43 mm
Height 76 mm
Length 94 mm

Housing surface material EMC coating, silver
Housing material die-cast aluminum

Degree of protection IP65
Ambient temperature (operation) -40 °C ... 100 °C

Mechanical data
Type of the screw connection 1x M40
Locking type Pin

Assembly instructions Sleeve housing fits on the HC-B 16-AMQ-EMV panel mounting base

Item number 1642603
Packing unit 5 pc
Minimum order quantity 1 pc
Sales Key BF7AAD
Product Key BF7AAD
Catalog Page Page 587 (PC-2011)
GTIN 4046356028516
Weight per Piece (including packing) 216.16 g
Weight per Piece (excluding packing) 189.1 g
Customs tariff number 85389099
Country of origin DE


ECLASS-9.0 27440202
ECLASS-11.0 27440202

China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
