Cable gland - HC-M-KV-M32(19-27)
1646010

Metal screw connection up to 5 bar, thread length: 8 mm, cable diameter: 19 - 27 mm, WAF 43, screw connection: M32


Product Details




Product type Full screw connection
No. of conductors 1
Manufacturer Jacob
Manufacturer Designation 50.625/40 M
Shielded no

Degree of protection IP68 (up to 5 bar)
Ambient temperature (operation) -30 °C ... 100 °C

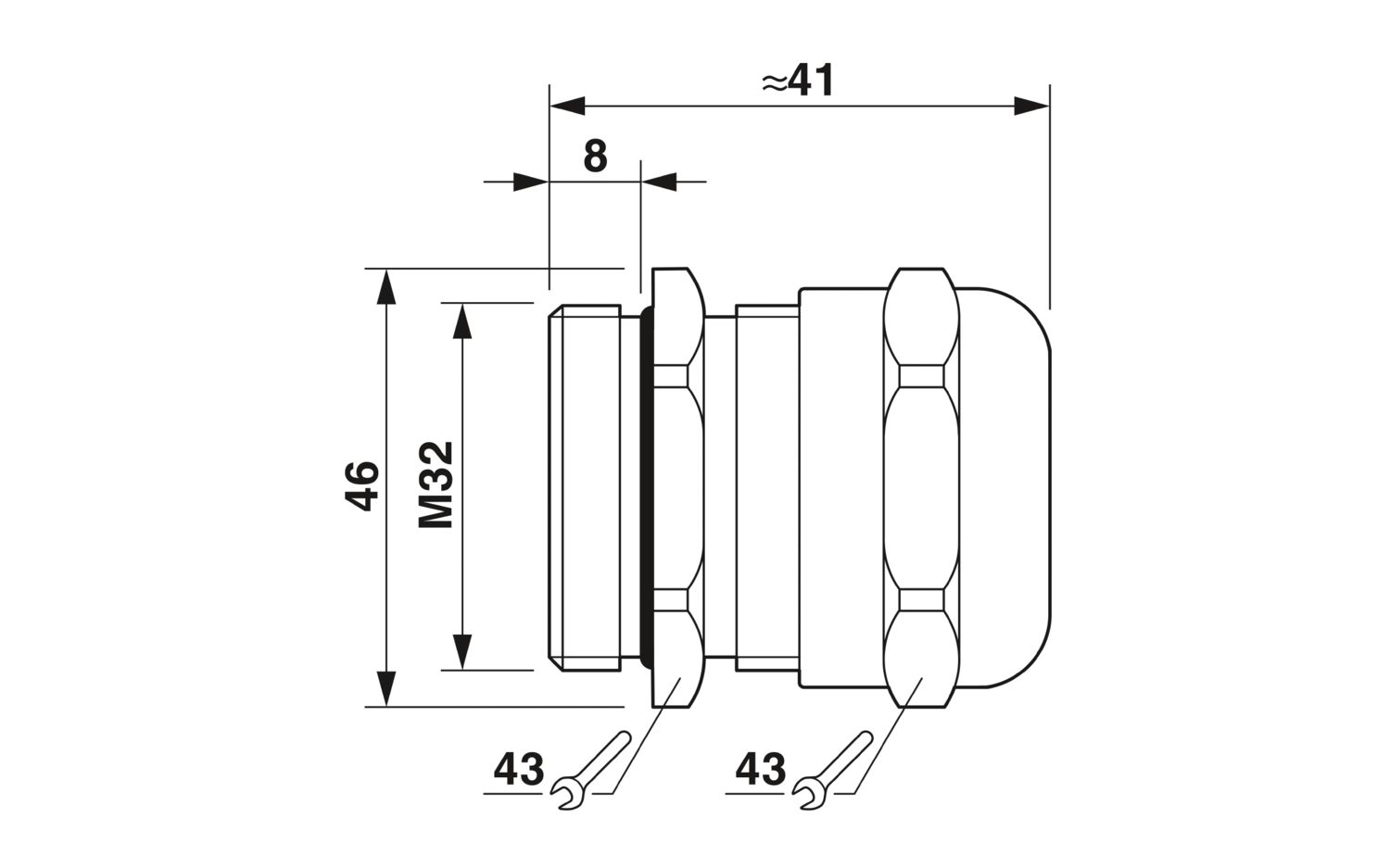

Dimensional drawing
Length 41 mm
Length of the connecting thread 8 mm
Hole diameter 32.1 mm ... 32.3 mm
Wrench size, union nut 43 mm
Wrench size, support 43 mm
Hexagon angular dimension 46 mm
Thread type connection side M32 x 1.5
Thread pitch 1.5 mm

Color silver
Sealing material NBR (O-ring)
Material, insert PA
Cable seal material CR/NBR
Cable gland material Nickel-plated brass

Cable structure
External cable diameter 19 mm ... 27 mm
Ambient conditions
Halogen-free no

Item number 1646010
Packing unit 10 pc
Minimum order quantity 1 pc
Sales Key BF7DAX
Product Key BF7DAX
Catalog Page Page 690 (C-4-2015)
GTIN 4017918941253
Weight per Piece (including packing) 136.42 g
Weight per Piece (excluding packing) 120.5 g
Customs tariff number 74198090
Country of origin DE


ECLASS

ECLASS-9.0 27144432
ECLASS-10.0.1 27144432
ECLASS-11.0 27144432

ETIM

ETIM 8.0 EC000441

UNSPSC

UNSPSC 21.0 39121300

REACh SVHC Lead 7439-92-1
China RoHS Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”

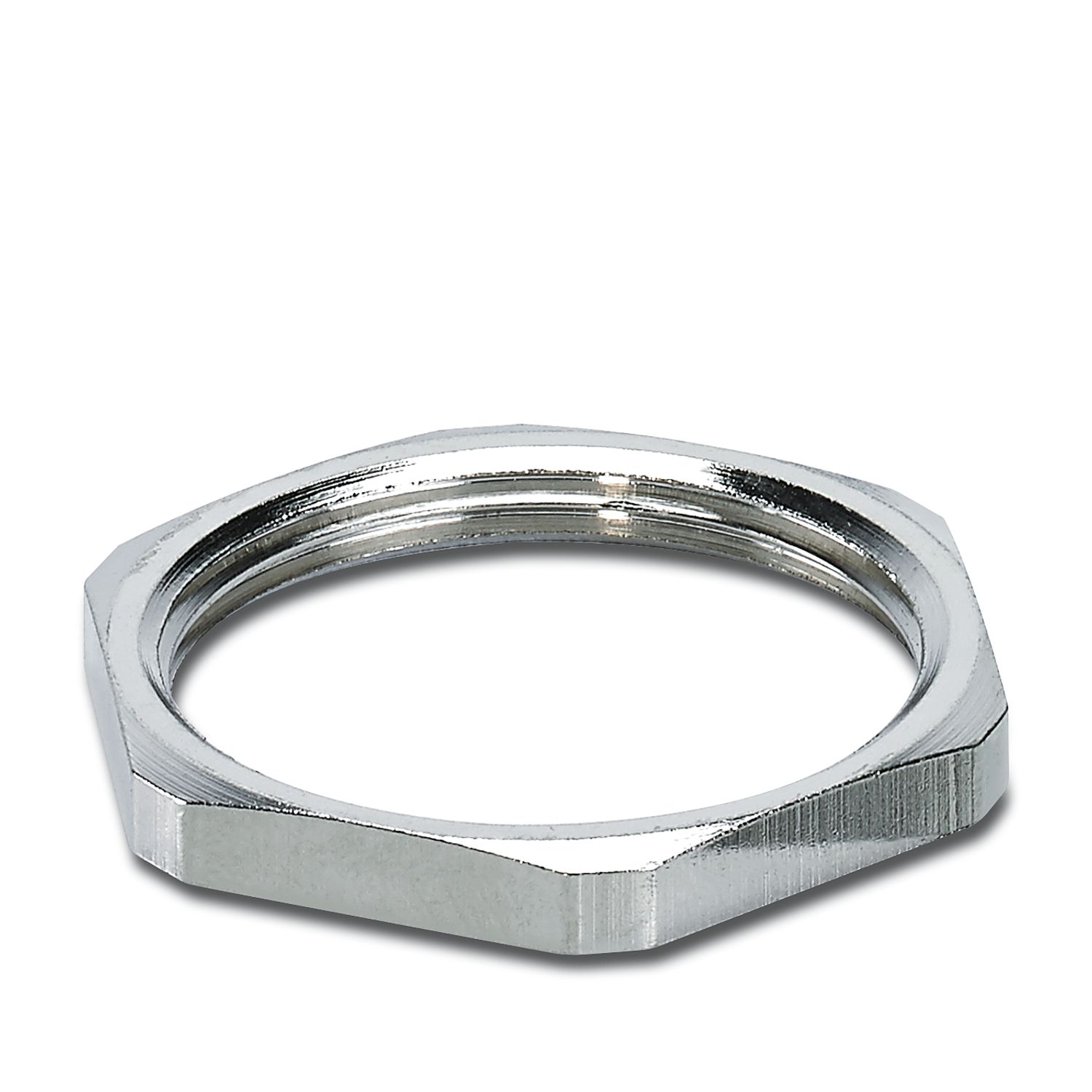

Compatible Products
