G-INB-M40-M68N-NEPDS-S
-
Cable gland
1415185
Cable gland, material for screw connection: Brass, nickel-plated, application: Standard, external cable diameter 16 mm ... 28 mm, shielding: no, connecting thread: M40 x 1.5, color: silver-colored, with bend protection sleeve, with O-ring
Product details
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Type | with bend protection sleeve |
| Manufacturer | WISKA |
| Manufacturer Designation | EMSKVS 40 |
| Shielded | no |
| Execution of the strain relief | A |
| Category of shock impact | 6 |
| Design, Strain relief | A |

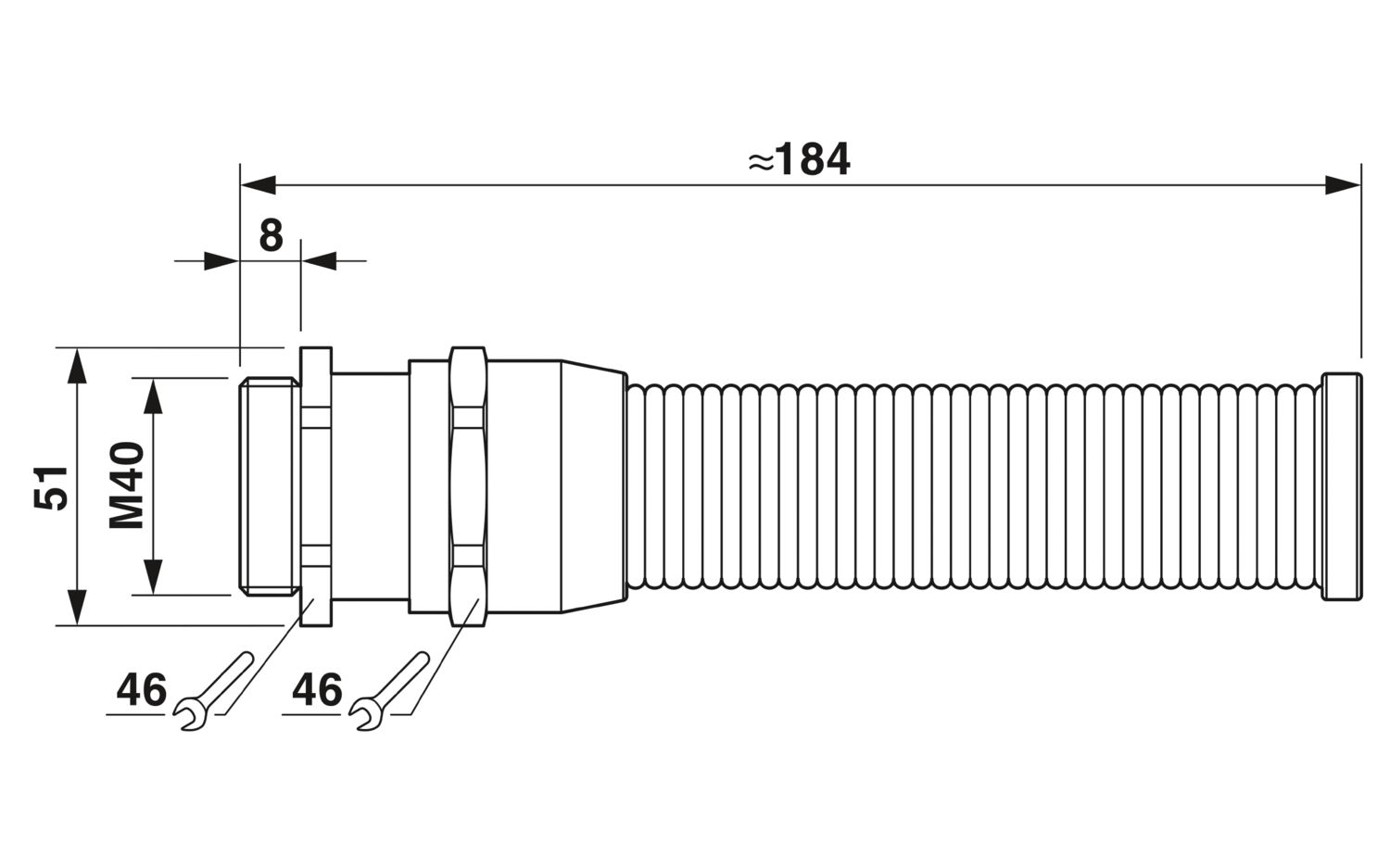

| Dimensional drawing |
|
| Length | 184 mm |
| Length of the connecting thread | 8 mm |
| Hole diameter | 40.1 mm ... 40.3 mm |
| Wrench size, union nut | 46 mm |
| Wrench size, support | 46 mm |
| Hexagon angular dimension | 51 mm |
| Thread type connection side | M40 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 20 Nm (Union nut: EN 62444) |
| 20 Nm (Support: EN 62444) |
| Color | brass color |
| Material | PA (Cable gland insert, halogen-free) |
| Seal material | EPDM |
| EPDM | |
| Material for screw connection | Brass, nickel-plated |
| External cable diameter Cable 1 | 16 mm ... 28 mm |
| External cable diameter | 17.4 mm ... 26.4 mm (for UL 514 B) |
| Halogen-free | yes |
| Ambient conditions | |
| Degree of protection | IP68 (5 bar / 0.5 h) |
| IP69 (DIN EN 60529 / IEC 60529) | |
| Ambient temperature (operation) | -40 °C ... 100 °C (static) |
Your advantages
Weatherproof sealing material
Halogen-free
