FLKM 50/ 4-FLK14/PA-S400 - Front adapter

FLKM 50/ 4-FLK14/PA-S400 - Front adapter

2294429

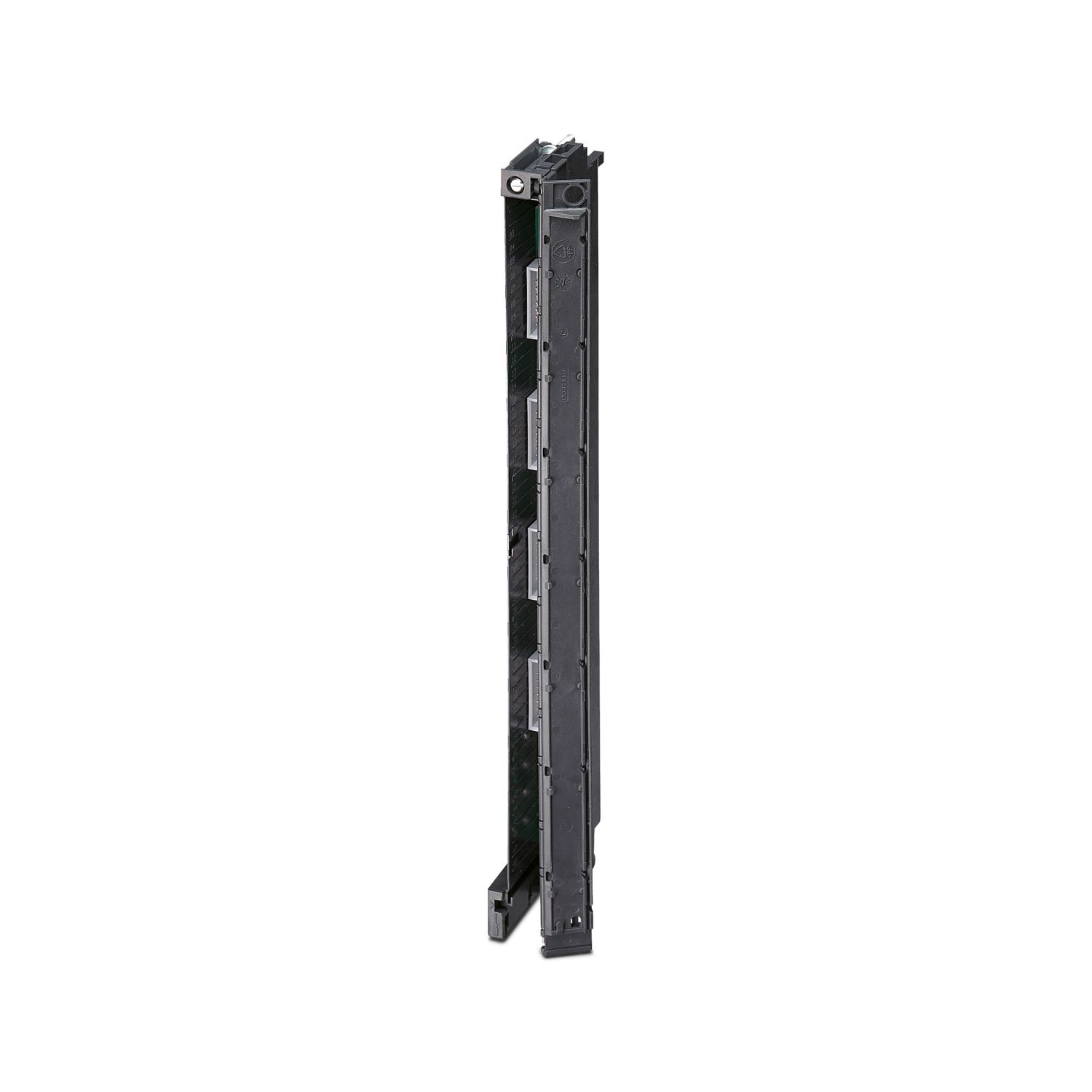

VARIOFACE front adapter, for Siemens SIMATIC® S7-400, 4x 8 channels can be connected

Product details

Expand all Collapse all

Technical data

Product properties

Product type	Front adapter
Insulation characteristics
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Electrical properties

Operating voltage (AC)	≤ 25 V AC
Operating voltage (DC)	≤ 60 V DC
Max. permissible current	8 A (per connection, supply via separate power supply)
Current (Per path)	≤ 1 A
Current (Total current per byte)	≤ 2 A (Feed-in via connector)
Rated insulation voltage	63 V
Rated surge voltage	0.6 kV
Supported controller SIEMENS S7-400
Suitable I/O card	6ES7421-1BL01-0AA0
		6ES7422-1BL00-0AA0
		6ES7422-7BL00-0AB0

Connection data

Field level
Connection method	IDC/FLK pin strip
Number of connections	4
Number of positions	14
Pitch	2.54 mm

Dimensions

Item dimensions
Width	24.2 mm
Height	273.5 mm
Depth	67.6 mm

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP00
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C

Standards and regulations

Standards/regulations	IEC 60664
Standards/regulations		DIN EN 50178

Mounting

Mounting position	any

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2294429
Packing unit	2 pc
Minimum order quantity	2 pc
Sales key	DK231S
Product key	DK231S
GTIN	4017918185398
Weight per piece (including packing)	197.95 g
Weight per piece (excluding packing)	197.95 g
Country of origin	DE

Classifications

ECLASS

ECLASS-13.0

27242292

UNSPSC

UNSPSC 21.0

32151601

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(a), 6(a)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)

Compatible products

Expand all Collapse all

Your advantages

Transmission of a maximum of 32 digital channels via a 14-pos. system cable
