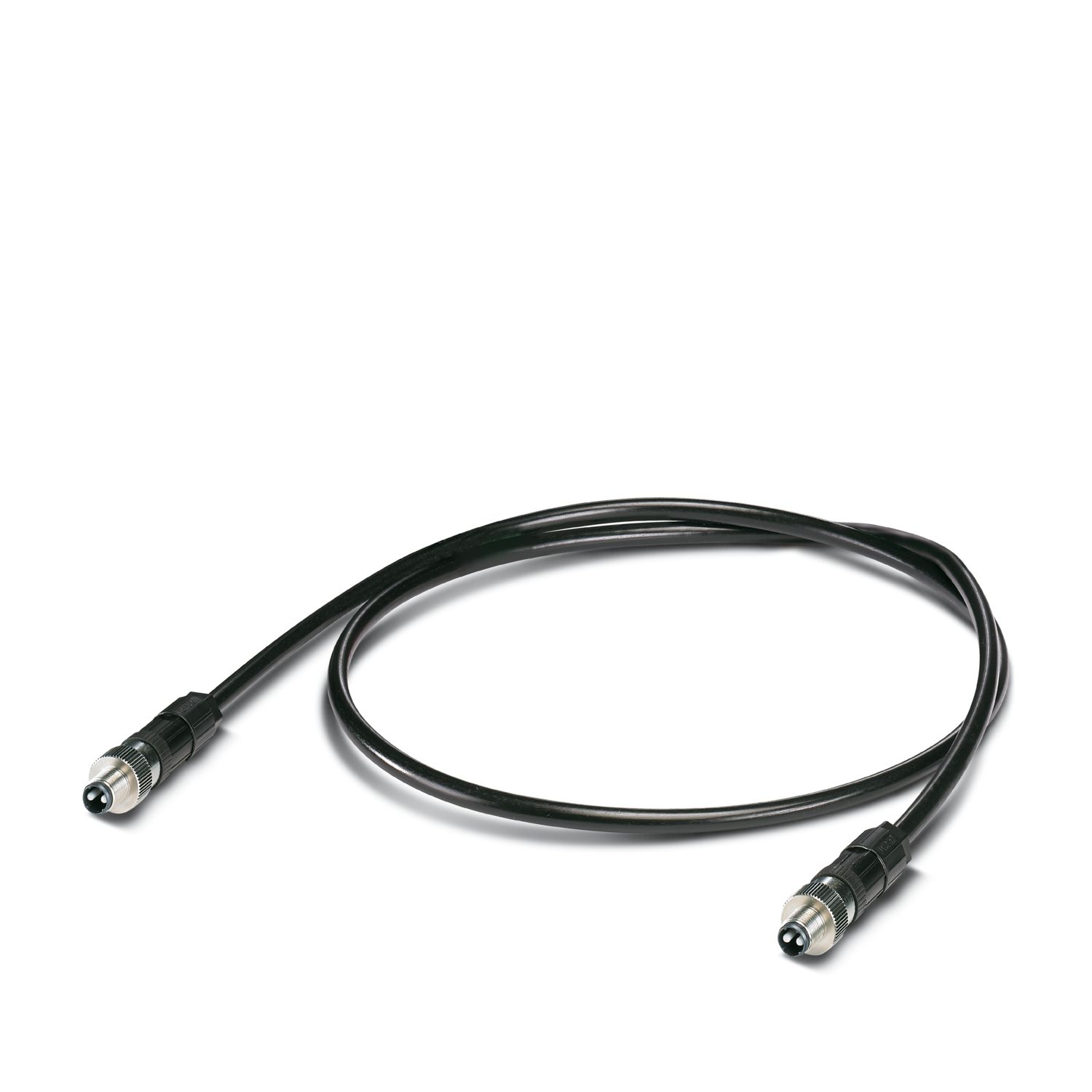

Assembled FO cable, round cable, 50/125 μm GOF-MM fiber, M12 to M12, for installation inside buildings, length: 1 m
FOC-M12-M12-GB02/1
-
FO connecting cable
1408875
Assembled FO cable, round cable, 50/125 μm GOF-MM fiber, M12 to M12, for installation inside buildings
Product details
| Type | Circular connector |
| Connection method | M12 circular connector |
| External dimensions | |
| External diameter min. | 7.5 mm |
| External diameter max. | 8 mm |
| Mechanical characteristics | |
| Ferrule diameter | 2.50 mm |
| Flammability rating according to UL 94 | V0 |
| Ferrule material | Zirconia ceramics |
| Outer sheath, material | PUR |
| Cable weight | 46.00 kg/km |
| Cable type | Outdoor cable |
| Short symbol | 02-G50/FJ(ZN)Z-...22 |
| Cable type | Break-out cable |
| External cable diameter | 7.50 mm |
| Outer sheath, material | PUR |
| External sheath, color | black |
| External sheath, strain relief elements | Non-metallic, aramide fiber |
| Wire diameter incl. insulation | 900 µm |
| Individual wire diameter | 2.2 mm ±0.1 mm |
| Single wire, color | black/orange |
| Tensile strength short-term/long-term | 2000 N / 1000 N |
| Lateral pressure short term | 600.00 N/cm |
| Lateral pressure, long-term | 200.00 N/cm |
| Impact strength | 2,2 J |
| Smallest bending radius, fixed installation | 25 mm |
| Smallest bending radius, movable installation | 40 mm |
| Number of bending cycles | 100000 |
| Bending radius | 70 mm |
| Traversing rate | 0.4 m/s |
| Cable, attenuation | 2.7 dB/km (at 850 nm), 1.0 dB/km (at 1300 nm) |
| Halogen-free | complying with IEC 60754-1/2 |
| Resistance to oil | very good oil and chemical resistance |
| Flame resistance | yes |
| FO cable | |
| Number of fibers | 2 |
| Fiber type | Multimode fiberglass 50/125 µm |
| Duty cycle testing | suitable for drag chain |
| Tensile strength short-term/long-term | 1000 N / 200 N |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| IP65/IP67 | |
| Impact strength | 2 Nm / 10 x |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| -40 °C ... 80 °C | |
| Ambient temperature (storage/transport) | -45 °C ... 85 °C |
| Resistance to UV radiation | yes |
| Testing | |
| Duty cycle testing | suitable for drag chain |
| cable layer type | Indoors |
| Item number | 1408875 |
| Packing unit | 1 pc |
| Minimum order quantity | 1 pc |
| Sales key | ABNGBC |
| Product key | ABNMAY |
| GTIN | 4055626082134 |
| Weight per piece (including packing) | 162.8 g |
| Weight per piece (excluding packing) | 2.22 g |
| Country of origin | DE |
UNSPSC
| UNSPSC 21.0 | 26121607 |
| EU RoHS | |
| Fulfills EU RoHS substance requirements | Yes (No exemptions) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
No hazardous substances above the limits
|
| EU REACH SVHC | |
| REACH candidate substance (CAS No.) | No substance above 0.1 wt% |
