The charges for the calibration process of current transformers that can be calibrated are as per the calibration charges in the Federal Law Gazette and these charges depend on the level of the primary rated current strength.

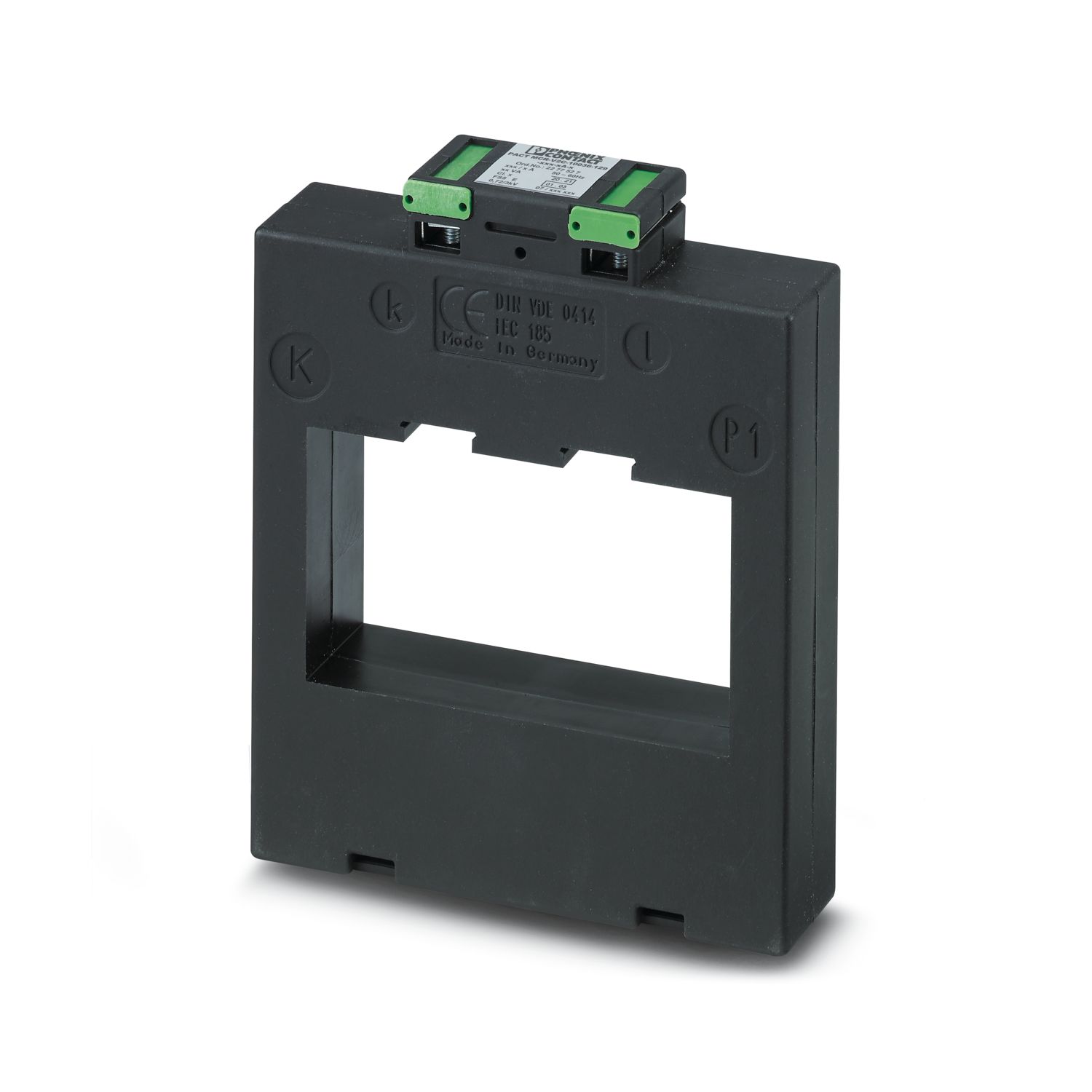

PACT MCR-V2C-10036-129
-
Current transformer
2277527
Window-type current transformer can be verified, primary current can be selected between 500...2500 A AC; 5 A AC secondary current; accuracy class can be selected as 0.2 / 0.2S or 0.5 / 0.5S; rated power can be selected. Optional: Calibration of converter and production of associated certificates.
Product details
| Product type | Current transformer |
| Rated insulation voltage | 1 kV (Phase/neutral conductor) |
| General | |
| Can be calibrated | yes |
| Converter type | Window-type current transformer |
| Current transformer | |
| Rated power | 2.5 VA |
| 5 VA | |
| 10 VA | |
| 15 VA | |
| Thermal rated short-time current | Ith = 60 * In |
| Thermal rated continuous current | Id = 1.2 * In |
| Rated surge current | Idyn = 2.5 * Ith |
| Rated frequency fn | 50 Hz |
| 60 Hz | |
| Primary rated current Ipn | 0 A ... 500 A |
| 0 A ... 600 A | |
| 0 A ... 750 A | |
| 0 A ... 800 A | |
| 0 A ... 1000 A | |
| 0 A ... 1200 A | |
| 0 A ... 1250 A | |
| 0 A ... 1500 A | |
| 0 A ... 1600 A | |
| 0 A ... 2000 A | |
| 0 A ... 2500 A | |
| Can be calibrated | yes |
| Converter type | Window-type current transformer |
| Signal | |
| Secondary rated current Isn | 1 A AC (depends on type) |
| 5 A AC (depends on type) | |
| Surge current limitation factor | FS 5 |
| Accuracy class | 0.2 (depends on type) |
| 0.5 (depends on type) | |
| 1 (depends on type) | |
| 0.2S (depends on type) | |
| 0.5S (depends on type) | |
| Connection method | Screw connection |
| Conductor cross section flexible | 2x 2.5 mm² ... 4 mm² (Secondary terminals) |
| Width | 30 mm |
| Height | 156 mm |
| Depth | 129 mm |
| Width | 129 mm |
| Height | 156 mm |
| Depth | 30 mm |
| Width | 100 mm |
| Height | 12 mm |

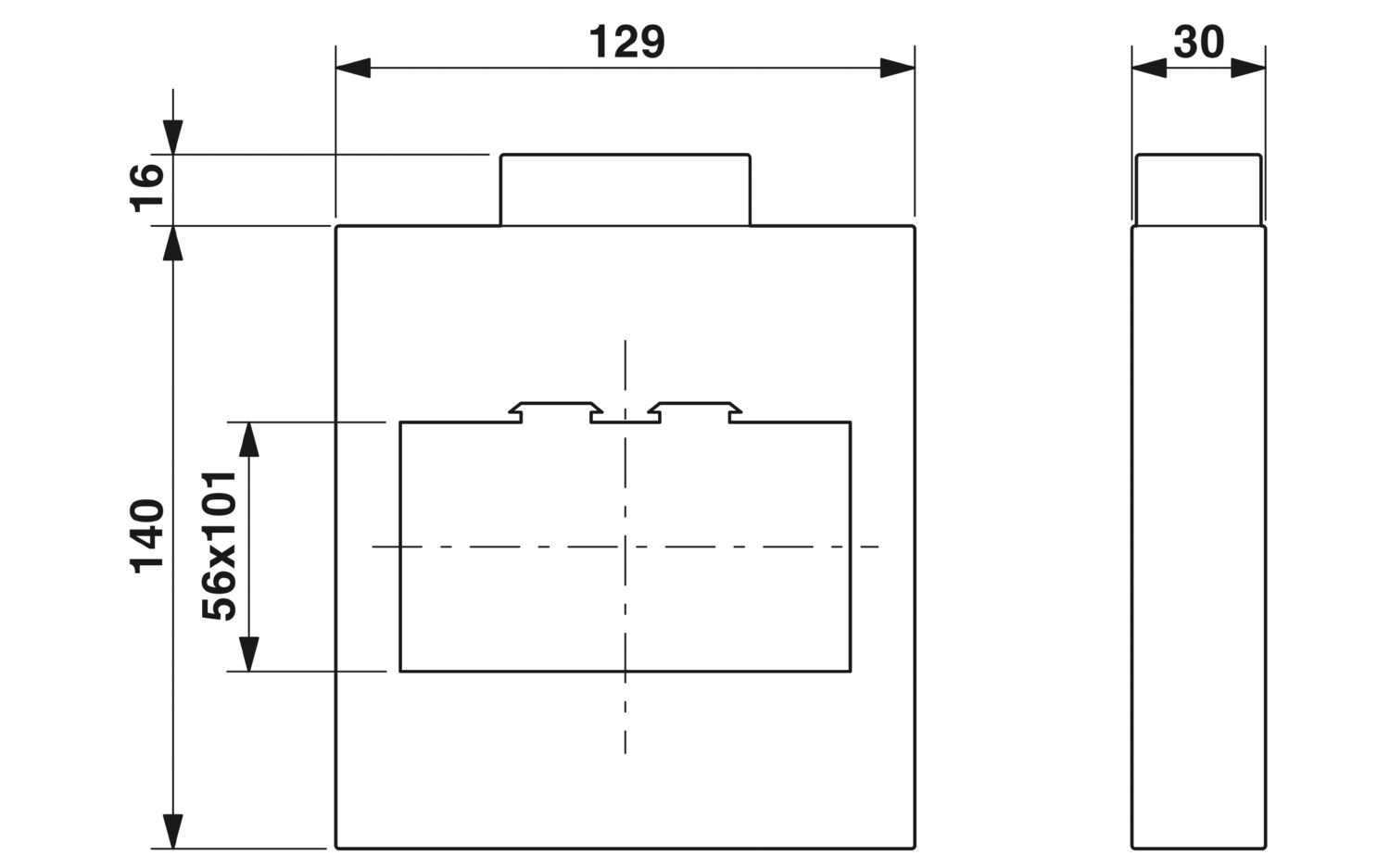

| Dimensional drawing |
|
| Width | 30 mm |
| Height | 156 mm |
| Depth | 129 mm |
| Alternative assembly | |
| Width | 129 mm |
| Height | 156 mm |
| Depth | 30 mm |
| Color | black (RAL 9005) |
| Housing material | PA 6.6 |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 40 °C |
| Ambient temperature (storage/transport) | -25 °C ... 40 °C |
| Permissible humidity (operation) | Use only indoors, non-condensing |
| Insulating material class | E |
| Standards/regulations | EN 50178 |
| EN 61869 |
Compatible products
Your advantages
Primary rated current Ipn: 0 ... (400 ... 4000) A
Rail dimensions: 3x 100 x 12 mm
