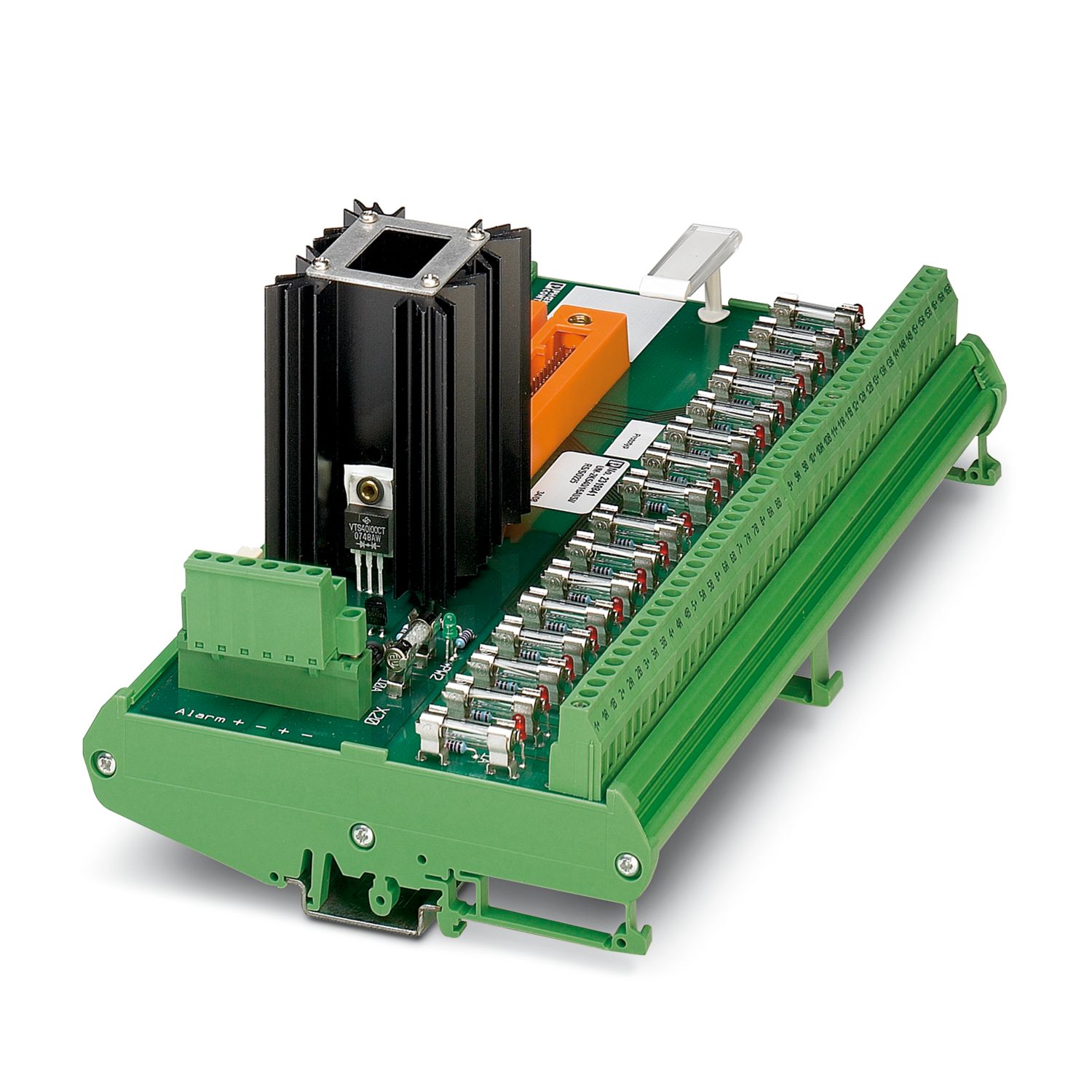

16-channel analog input module with screw connection and redundant voltage supply. Suitable for Yokogawa SAI 143 card.
Product details
Product type
Interface module
Number of positions
40
No. of channels
16
Insulation characteristics: Air clearances and creepage distances
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Nominal voltage UN
30 V DC
Max. current carrying capacity per branch
1 A
Max. total current of all branches
10 A
Air clearances and creepage distances
Rated insulation voltage
50 V
Rated surge voltage
0.5 kV (1.2/50 μs)
Supported controller YOKOGAWA ProSafe-RS
Suitable I/O card
SAI143
Field level
Connection method
Screw connection
Number of positions
48
Conductor cross-section rigid
0.2 mm² ... 4 mm²
Conductor cross-section flexible
0.2 mm² ... 2.5 mm²
Conductor cross-section AWG
24 ... 12
Controller level
Connection method
Yokogawa, KS compatible
Number of connections
2
Number of positions
40
Tightening torque
0.5 Nm
Supply
Connection method
pluggable
Number of connections
1
Number of positions
6
Status display present
yes, if the fuse fails
Item dimensions
Width
250 mm
Height
125.4 mm
Depth
103.55 mm
Color
green (RAL 6021)
Housing insulation material
PVC
Ambient conditions
Degree of protection
IP00
Degree of protection (Installation location)
≥ IP54 (Installation location)
Ambient temperature (operation)
-20 °C ... 55 °C
Altitude
< 2000 m
Air clearances and creepage distances
Standards/regulations
EN IEC 60664-1
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Item number
2319841
Packing unit
1 pc
Minimum order quantity
1 pc
Note
Made to order (non-returnable)
Sales key
DK2A8N
Product key
DK2A8N
GTIN
4046356440325
Weight per piece (including packing)
835 g
Weight per piece (excluding packing)
820 g
Country of origin
DE
ECLASS
ECLASS-13.0
27141152
ECLASS-15.0
27141152
ETIM
ETIM 9.0
EC002780
UNSPSC
UNSPSC 21.0
39121400
EAC
Approval ID: RU*-DE.*08.B.01829*
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
