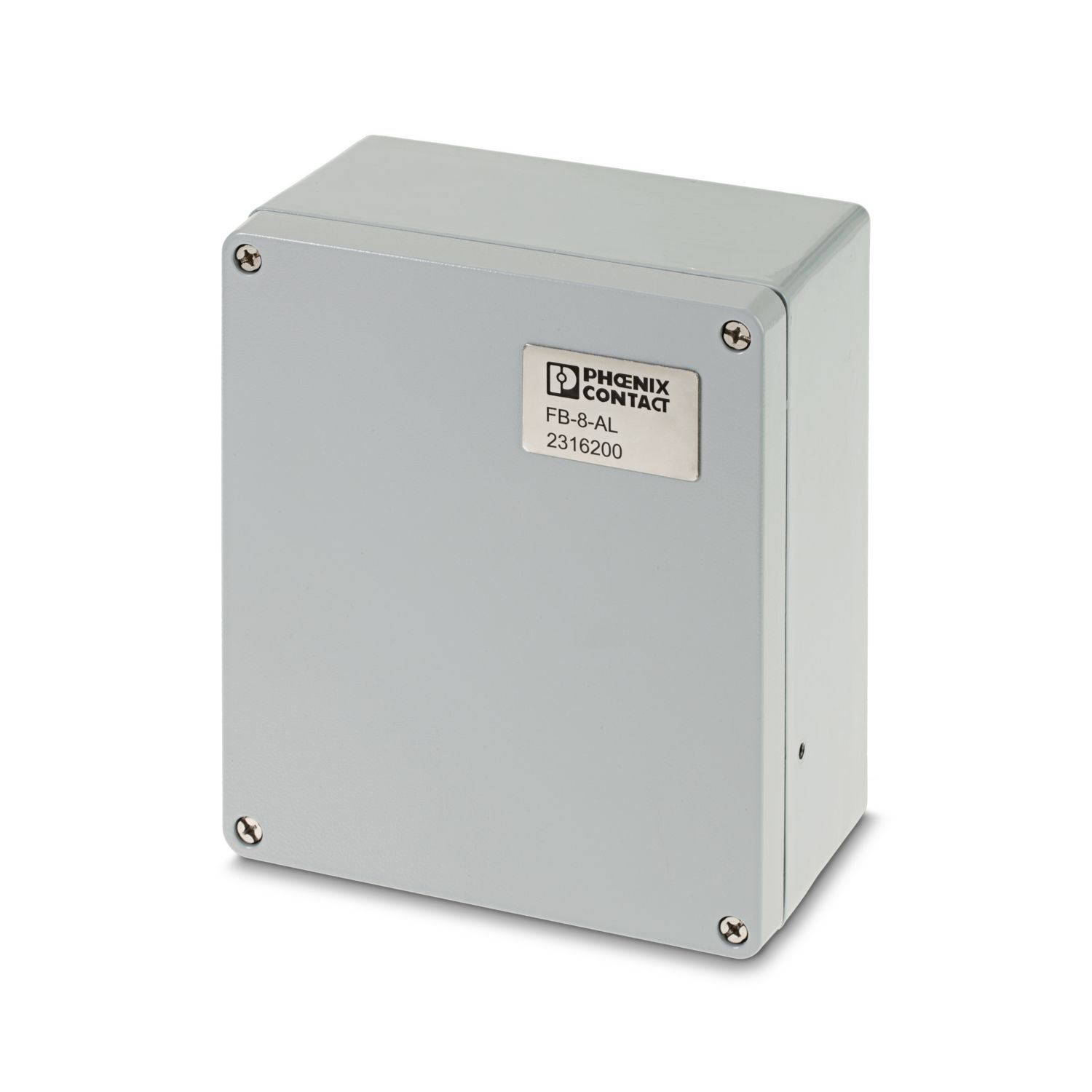

FB-8-AL
-
Junction box
2316200
Aluminum field junction box with 8 ports for use in hazardous locations. Includes FB-ET trunk module, Plugtrab base with option for surge protection plug, and DIN rail space for up to 6 device couplers.
Product details
| Product type | Control box |

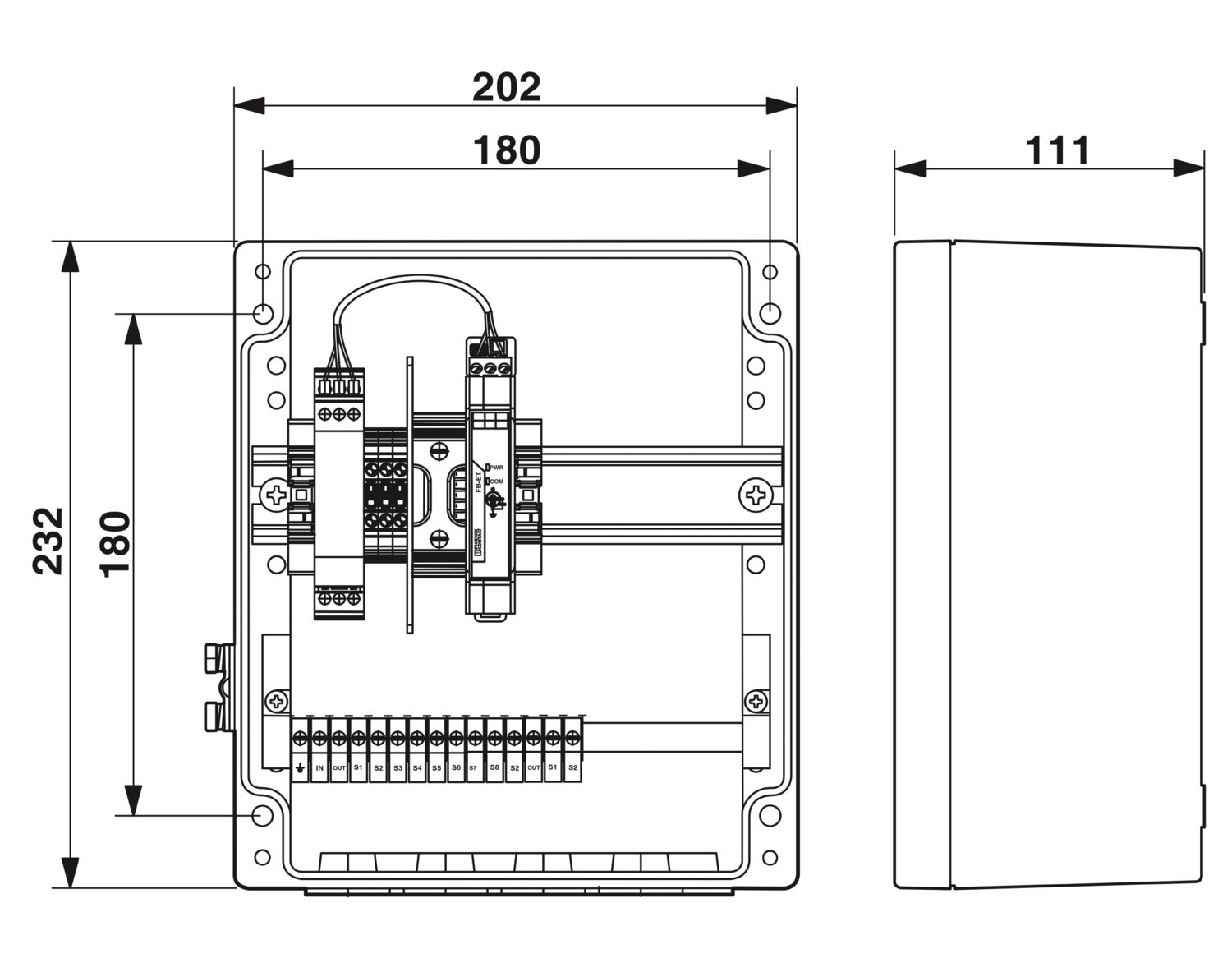

| Dimensional drawing |
|
| Width | 202 mm |
| Height | 232 mm |
| Depth | 111 mm |
| Color | gray aluminum |
| Housing material | Aluminum, die-cast, corrosion resistant, powder-coated |
| Material for screw connection | None |
| Ambient conditions | |
| Degree of protection | IP66 |
| NEMA 4X | |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Conformity/Approvals | |
| ATEX | II 2 G/2 D |
| Mounting position | vertical |
Your advantages
Includes an FB-ET trunk line module and enables the installation of additional couplers and PT plugs
Busbar and shield clamps
Entries for the trunk line (input/output) and breather connections
Cable glands, plugs, and breather must be ordered separately
Developed specifically for field device coupler systems
Each housing has M20 ports and can be configured as desired
