Contact insert - HC-HS 6-ESTS-12

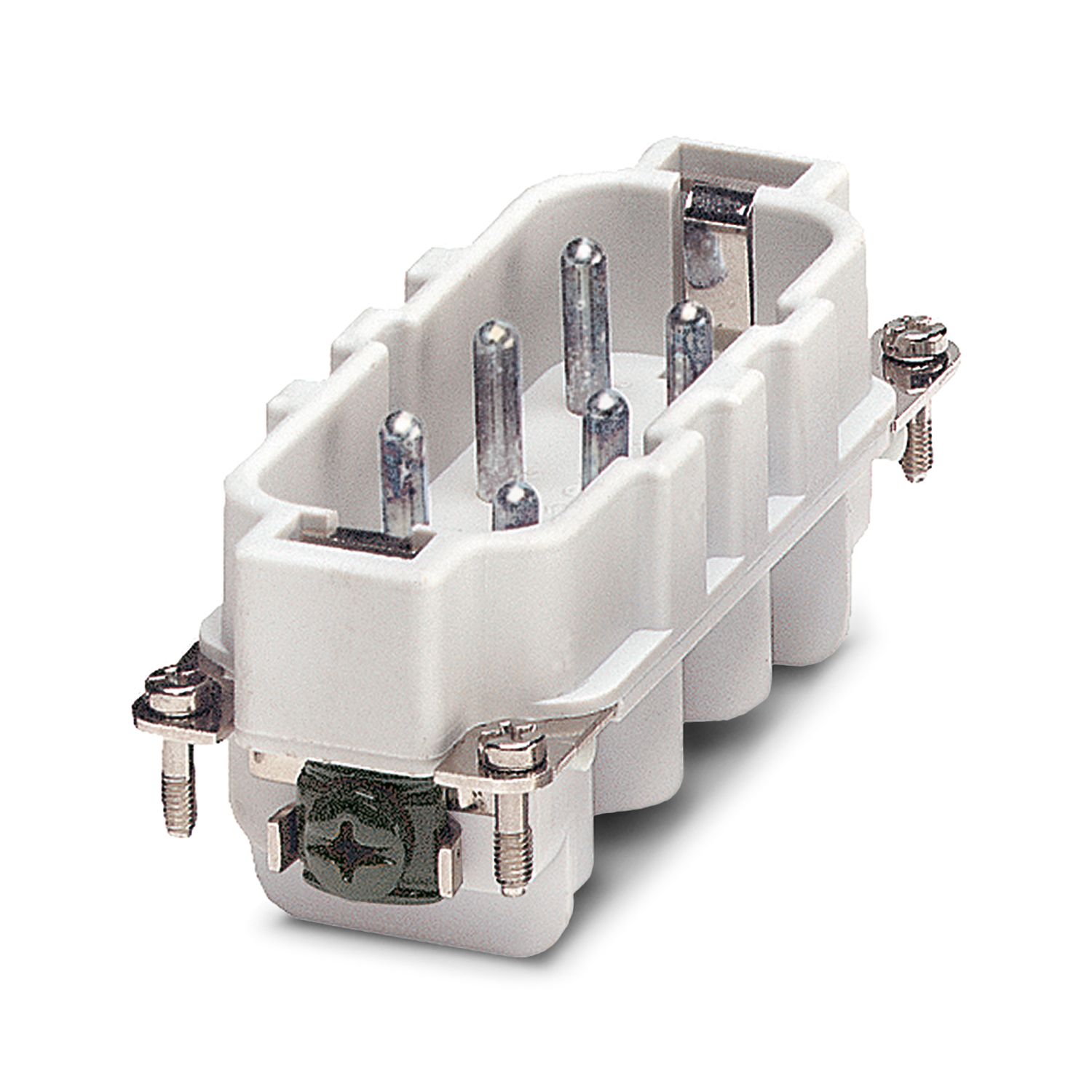

The figure shows version HC-HS 6-ESTS
Male insert

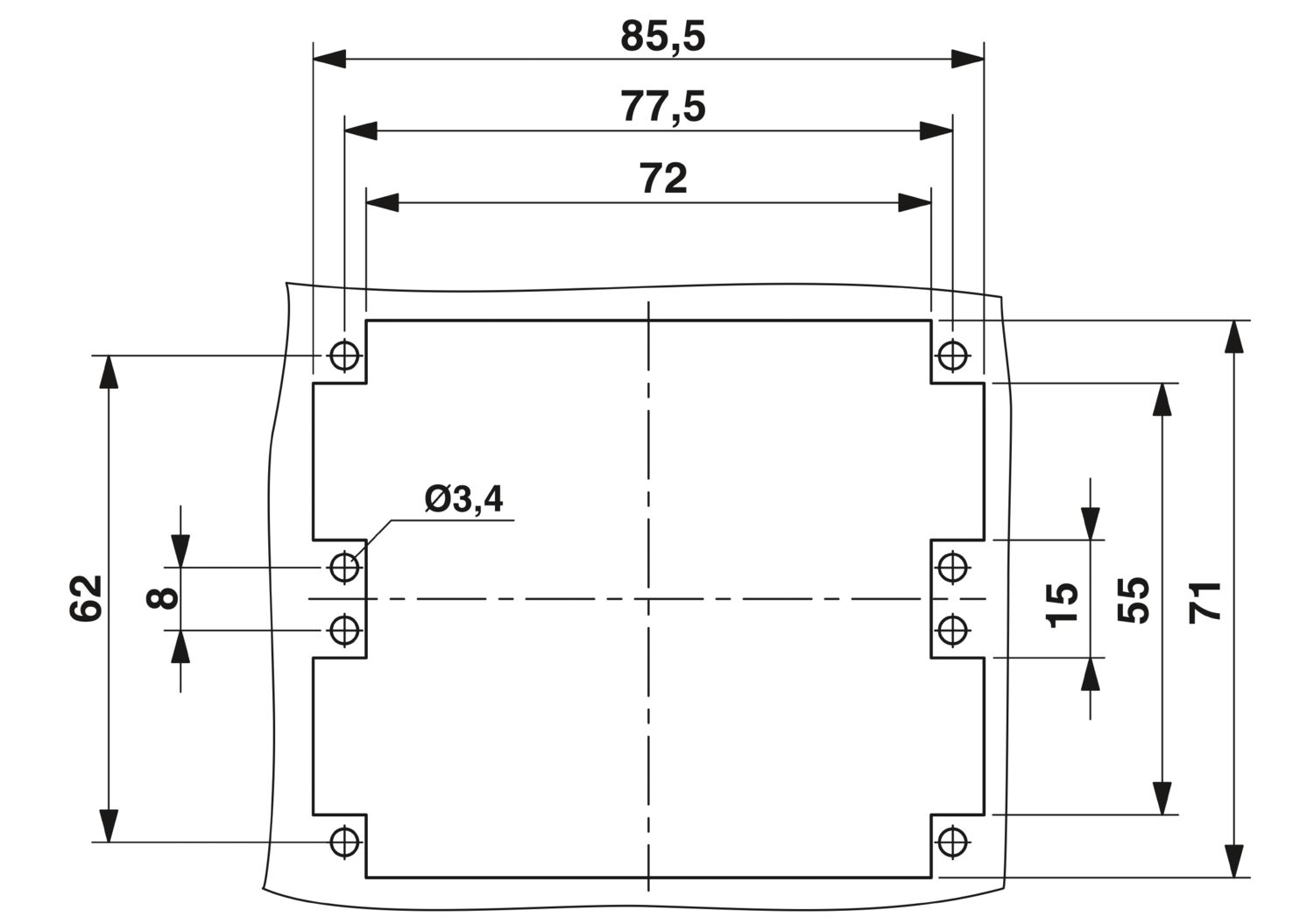

Mounting cutout
Connector pin assignment, connection side

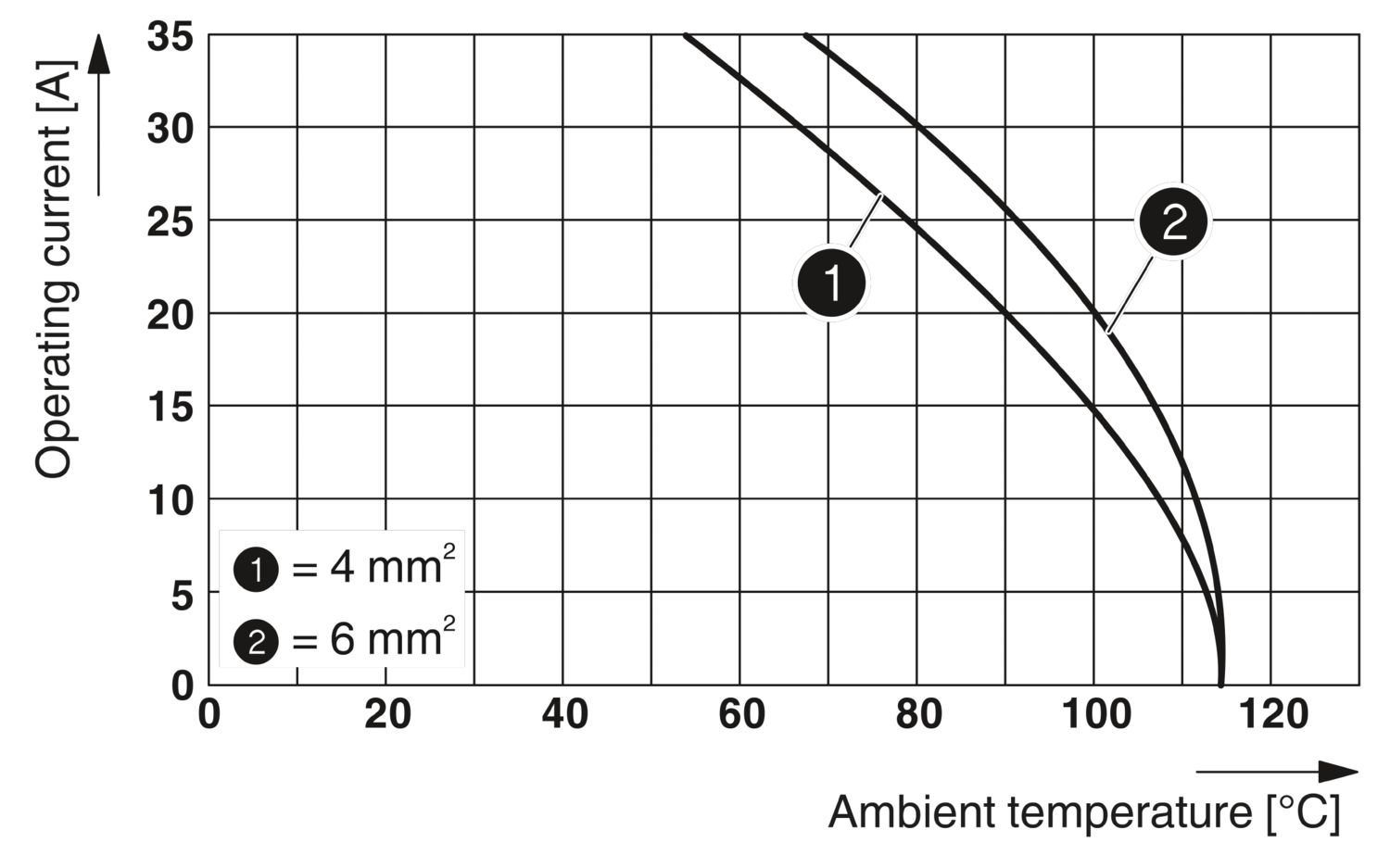

Derating diagram: HC-HS...S series
Contact insert - HC-HS 6-ESTS-12
1674574
HEAVYCON male insert, HS6 series, screw connection, numbering from 7-12
Product Details
Technical Data
Notes
General
For HEAVYCON-ADVANCE housings of B16 type and HEAVYCON housings of B32 type
Product properties
Type
B16
B32
Product type
Contact insert with a fixed no. of positions
Number of positions
6
Connection profile
6+PE
Series
HC-HS
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Connection data
Connection technology
Connection technology
Screw connection
Connection in acc. with standard
IEC / EN
Conductor connection
Conductor cross section
0.5 mm² ... 6 mm²
Connection cross section AWG
20 ... 10
Tightening torque
1.2 Nm
Stripping length of the individual wire
10 mm
Dimensions

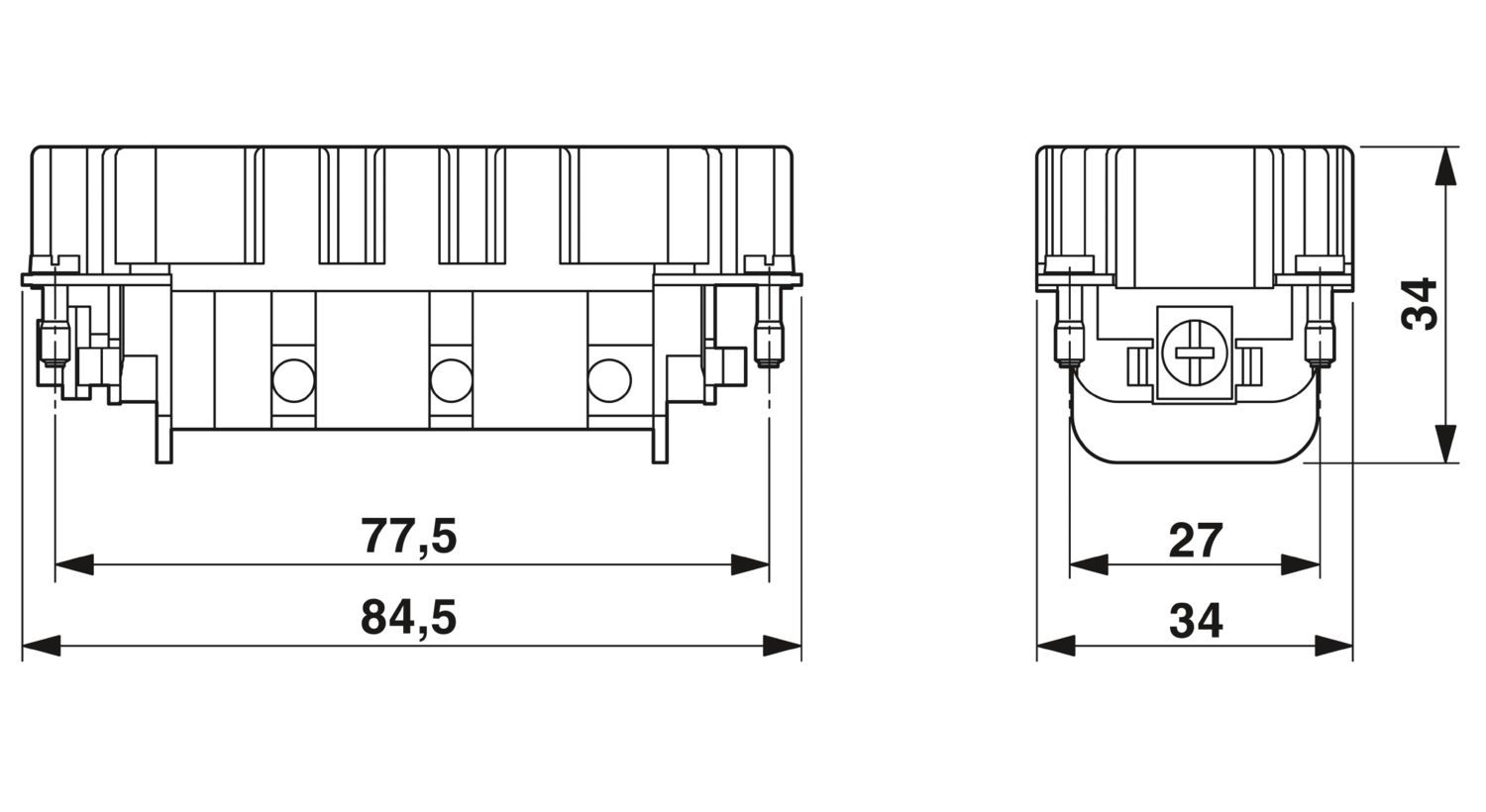

Dimensional drawing
Width
34 mm
Height
34 mm
Length
84.5 mm
Drill hole distance, horizontal
77.5 mm
Electrical properties
Rated voltage (III/3)
500 V
Rated surge voltage
6 kV
Rated current
35 A
Material specifications
Flammability rating according to UL 94
V0
Contact material
Copper alloy
Contact surface material
Ag
Contact carrier material
PA
Connector
Insertion/withdrawal cycles
≥ 500
Cable / line
Cable structure
Stripping length of the individual wire
10 mm
Mounting
Assembly instructions
Connectors may be operated only when there is no load/voltage.
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C (including heating up of contacts)
Standards and regulations
Constructional and testing regulations
DIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
Tests
DIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
Commercial Data
Item number
1674574
Packing unit
10 pc
Minimum order quantity
1 pc
Sales Key
BF7ABI
Product Key
BF7ABI
Catalog Page
Page 459 (C-4-2013)
GTIN
4017918144685
Weight per Piece (including packing)
99.3 g
Weight per Piece (excluding packing)
95.83 g
Customs tariff number
85366990
Country of origin
DE
Classifications
ECLASS
ECLASS-9.0
27440205
ECLASS-11.0
27440205
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50 years
For information on hazardous substances, refer to the manufacturer’s declaration available under “Downloads”
