Contact insert - HC-D 25-EBUC-R
Female insert
Mounting cutout when used without housing
Connector pin assignment connection side: Left pin; right socket
Derating diagram: Series HC-D...C-R
Contact insert - HC-D 25-EBUC-R
1679524

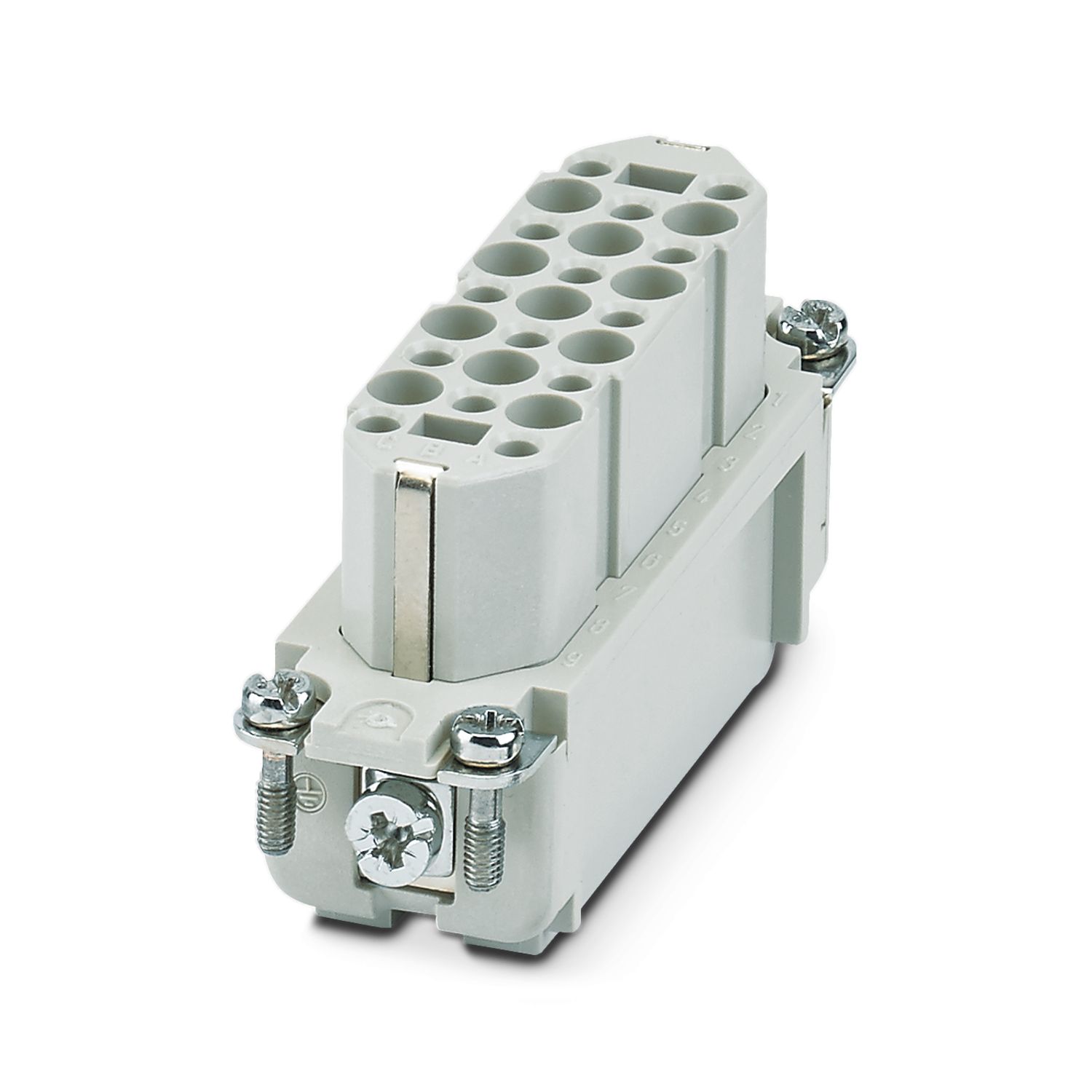

HEAVYCON female insert, D25 series, 25-pos., crimp connection, rolled contacts
Product Details
Technical Data
Notes
General
For HEAVYCON housing of type D25/50, crimp contacts CK1,6-ER / CK1,6-BR (crimp contacts not included in the scope of supply)
Product properties
Type
D25
D50
Product type
Contact insert with a fixed no. of positions
Number of positions
25
Connection profile
25+PE
Contact type
rolled
Series
HC-D
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Connection data
Connection technology
Connection technology
Crimp connection
Connection in acc. with standard
IEC / EN
Conductor connection
Conductor cross section
0.14 mm² ... 1.5 mm²
Connection cross section AWG
26 ... 16
Stripping length of the individual wire
3 mm +0,5 mm (0.14 mm² ... 0.5 mm²)
3.5 mm +1 mm (0.5 mm² ... 1.5 mm²)
Dimensions

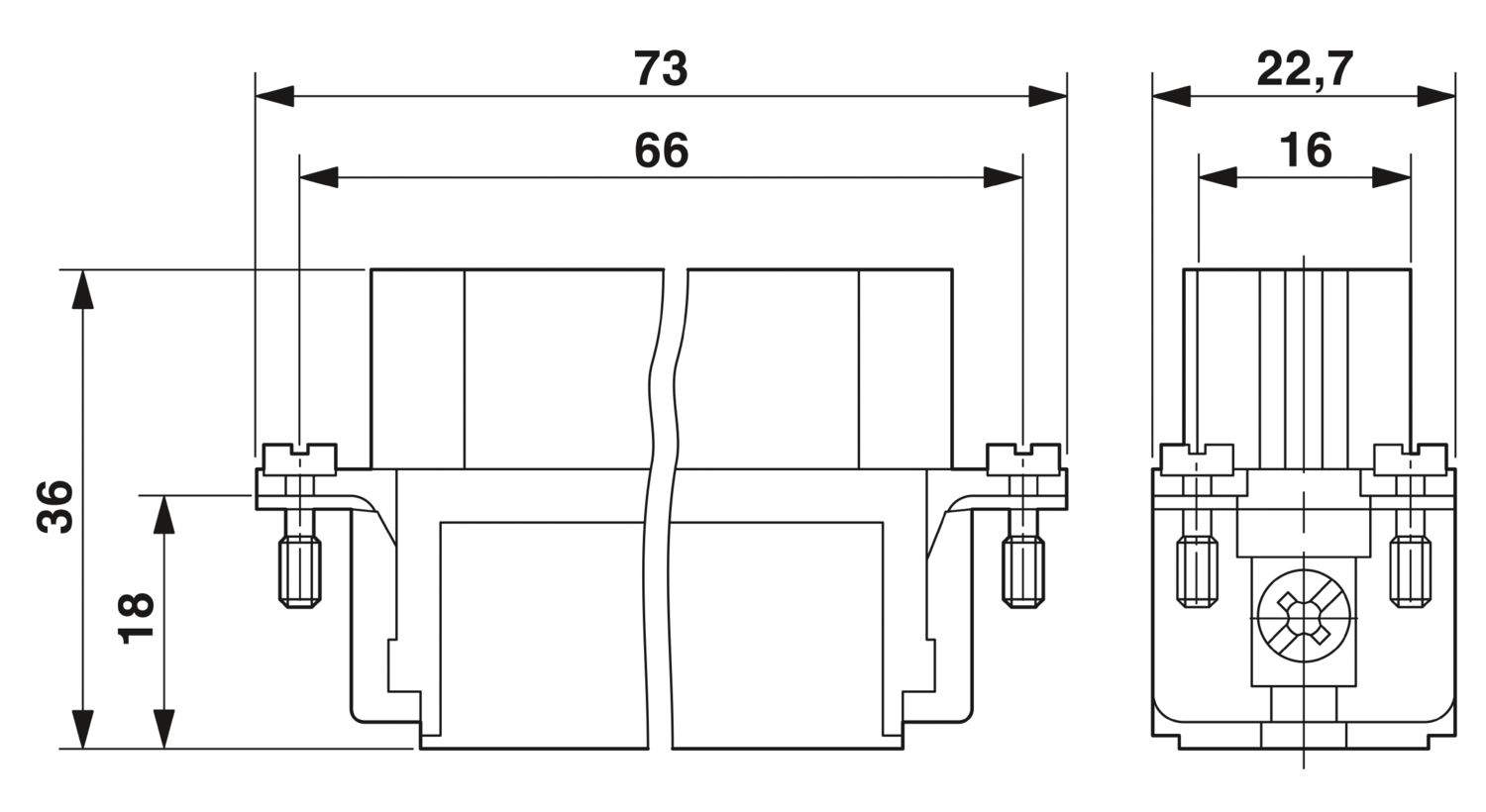

Dimensional drawing
Width
22.7 mm
Height
36 mm
Length
73 mm
Drill hole distance, horizontal
66 mm
Drill hole distance, vertical
16 mm
Mechanical characteristics
Contact diameter
1.6 mm
Electrical properties
Rated voltage (III/3)
250 V
Rated surge voltage
4 kV
Rated current
10 A
Test voltage
4 kV AC
Material specifications
Flammability rating according to UL 94
V0
Contact material
Copper alloy
Contact surface material
Ag (alternatively Au)
Contact carrier material
PC
Connector
Insertion/withdrawal cycles
≥ 500
Cable / line
Cable structure
Stripping length of the individual wire
3 mm +0,5 mm (0.14 mm² ... 0.5 mm²)
3.5 mm +1 mm (0.5 mm² ... 1.5 mm²)
Mounting
Assembly instructions
To ensure correct use, installation in housing with IP54 protection or better is required
Connectors may be plugged in only when there is no load/voltage.
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C (including heating up of contacts)
Standards and regulations
Constructional and testing regulations
DIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
Tests
DIN VDE 0627/86
DIN VDE 0110/02.79
DIN VDE 0110-1/04.97
IEC 60664-1, DIN IEC 60512
IEC 60352
Commercial Data
Item number
1679524
Packing unit
10 pc
Minimum order quantity
10 pc
Sales Key
BF7ABE
Product Key
BF7ABE
Catalog Page
Page 421 (C-4-2013)
GTIN
4017918163754
Weight per Piece (including packing)
45.32 g
Weight per Piece (excluding packing)
45.32 g
Customs tariff number
85366990
Country of origin
CZ
Classifications
ECLASS
ECLASS-9.0
27440205
ECLASS-10.0.1
27440205
ECLASS-11.0
27440205
ETIM
ETIM 7.0
EC000438
UNSPSC
UNSPSC 21.0
39121522
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Compatible Products
Accessories
Screw
HC-A-PES - 1584868
Crimp contact
CK1,6-ER-1,00BU OIC AG - 1004362
Coding element
HC-CST - 1676857
Crimp contact
CK1,6-ER-2,50BU OIC AG - 1004366
Coding element
HC-CBU - 1676860
Crimp contact
CK1,6-BR-1,00BU OIC AG - 1004381
Coding bolt
HC-CB - 1772722
Crimp contact
CK1,6-BR-2,50BU OIC AG - 1004383
Female contact
CK1,6-ED-BU-POF - 1885004
