DC-B 6-ID-7X4-UT
-
Contact insert
1602203
DUPLICON, connector contact insert, 6 x 4 mm2 + PE, 400/690 V, 25 A, screw connection, type B6, IP20 protection
Product details
| Product type | Contact insert with a fixed no. of positions |
| Type | DC-B6 |
| Number of positions | 6 |
| Connection profile | 6+PE |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

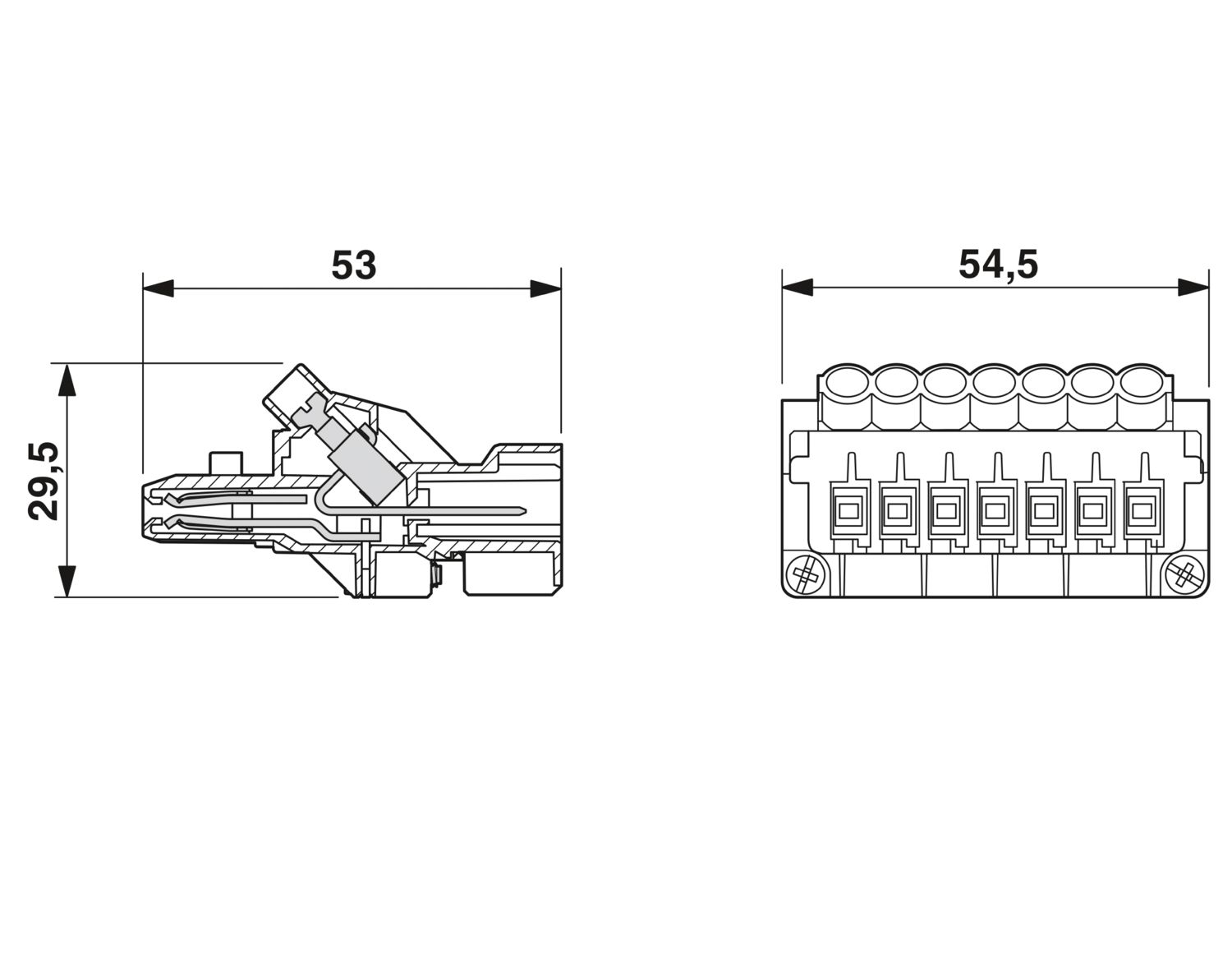

| Dimensional drawing |
|
| Width | 54.5 mm |
| Height | 29.5 mm |
| Length | 53 mm |
| Connection technology | |
| Connection technology | Screw connection |
| Conductor connection | |
| Conductor cross section | 0.2 mm² ... 4 mm² (6 mm² without ferrule) |
| Connection cross section AWG | 24 ... 12 (AWG 10 without ferrule) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Stripping length of the individual wire | 10 mm |
| Rated voltage (III/3) | 400 V (L-PE) |
| 690 V (L-L) | |
| Rated surge voltage | 6 kV |
| Rated current | 25 A |
| 25 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Contact material | Cu |
| Contact surface material | Ag |
| Contact carrier material | PA |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
