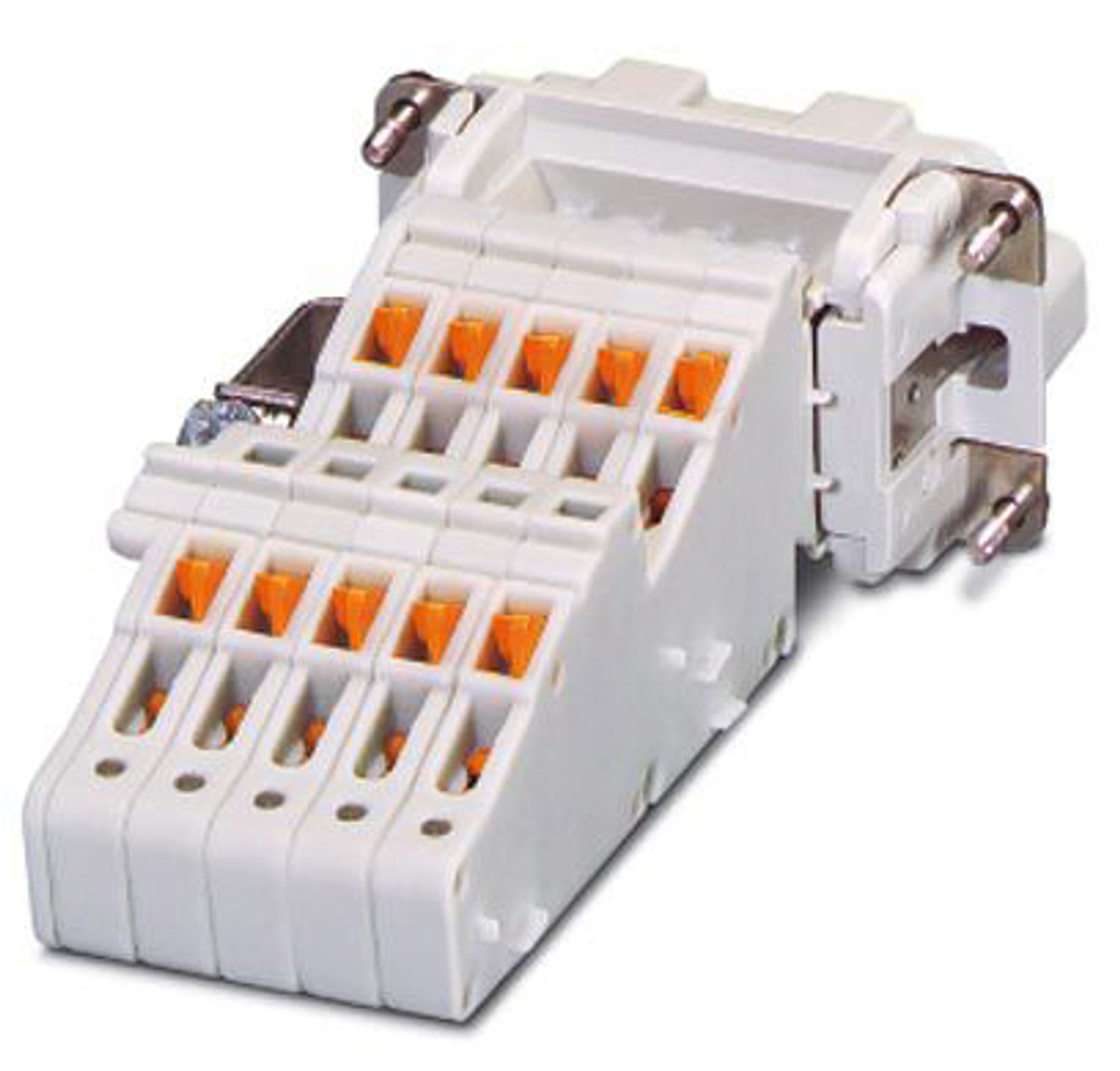

Contact insert - HC-QA-B 16-ST/PEL
1678936

HEAVYCON terminal adapter male insert, B16 series, 16-pos., protective conductor connection on the left for the right side of the control cabinet, QUICKON connection; contact inserts with screw, crimp, push-in and QUICKON connection can be used as mating connectors.


Product Details




General For HEAVYCON ADVANCE panel mounting flange and HEAVYCON panel mounting base of type B16. Contact inserts with screw, crimp, and QUICKON connections can be used as mating connectors.
Connectors may be operated only when there is no load/voltage.

Type B16
Product type Terminal adapter
Number of positions 16
Connection profile 16+PE
Type Male connector for the right side of the control cabinet
Insulation characteristics
Overvoltage category III
Degree of pollution 3

Rated voltage for power contacts 230/400 V
Rated surge voltage 4 kV
Rated current 16 A

Connection technology
Connection technology QUICKON connection
Connection in acc. with standard IEC / EN
Conductor connection
Conductor cross section 0.5 mm² ... 1.5 mm²
Connection cross section AWG 20 ... 16

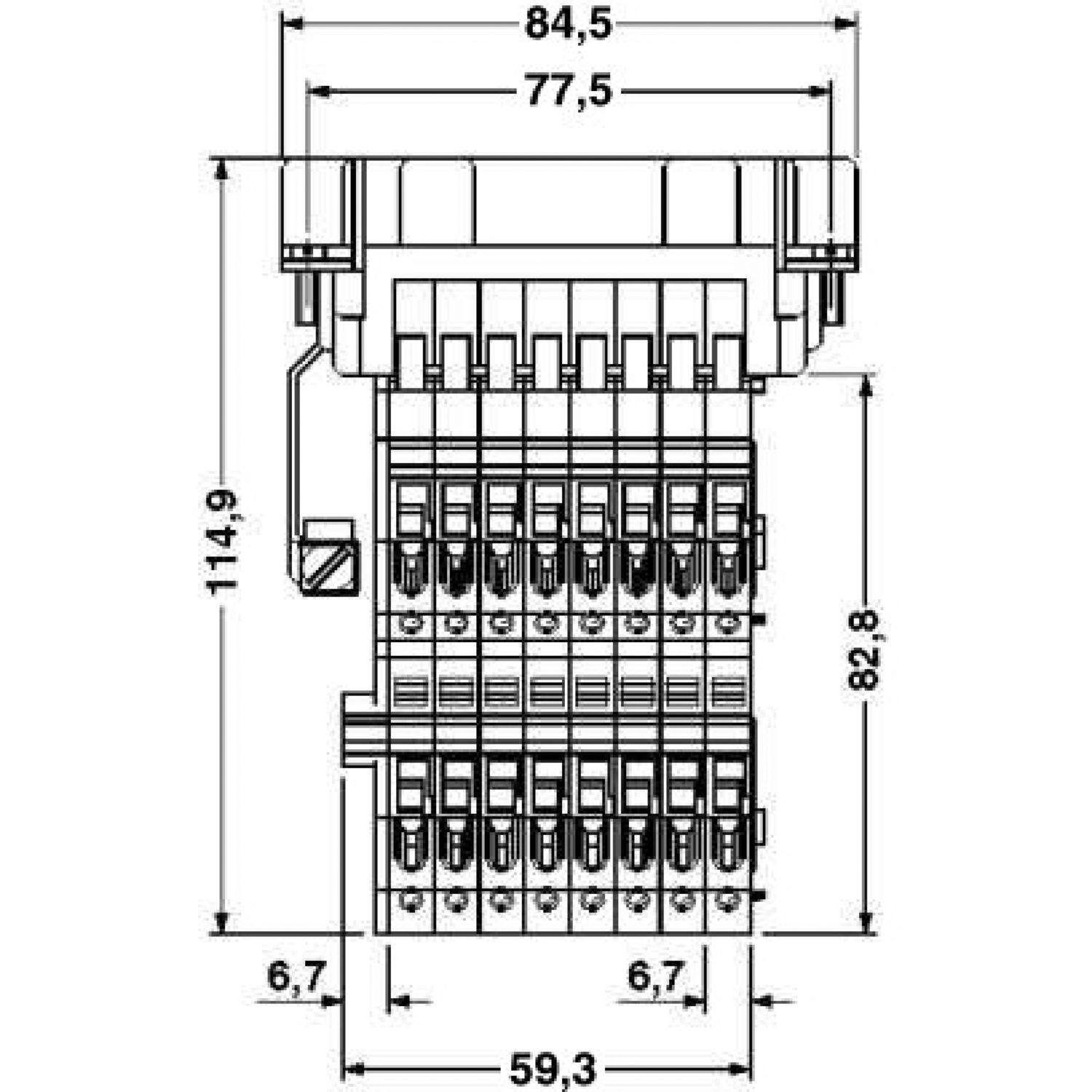

Dimensional drawing
Width 84.5 mm
Terminal adapter width 59.3 mm
Height 34 mm
Length 114.9 mm

Flammability rating according to UL 94 V0
Material wire insulation PVC / PE
Contact material Copper alloy
Contact surface material Ag
Contact carrier material PA / PC

Insertion/withdrawal cycles ≥ 500

Cable structure
Structure of individual litz in acc. with VDE 0295 / smallest wire diameter VDE 0295 Cl.1-5 / 0.2 mm
Wire diameter including insulation 3 mm

Ambient conditions
Ambient temperature (operation) -40 °C ... 125 °C
Temperature when conductor connected -25 °C ... 50 °C

Assembly instructions Cannot be used for mating connectors with spring-cage and Push-in connections. If the conductor contacts again, it must be cut off above the last contact point.

Item number 1678936
Packing unit 5 pc
Minimum order quantity 1 pc
Note Made to Order (non-returnable)
Product Key BF7ADC
Catalog Page Page 381 (PC-2007)
GTIN 4017918168353
Weight per Piece (including packing) 185.33 g
Weight per Piece (excluding packing) 185.33 g
Customs tariff number 85369010
Country of origin DE


ECLASS

ECLASS-9.0 27440205
ECLASS-11.0 27440222
