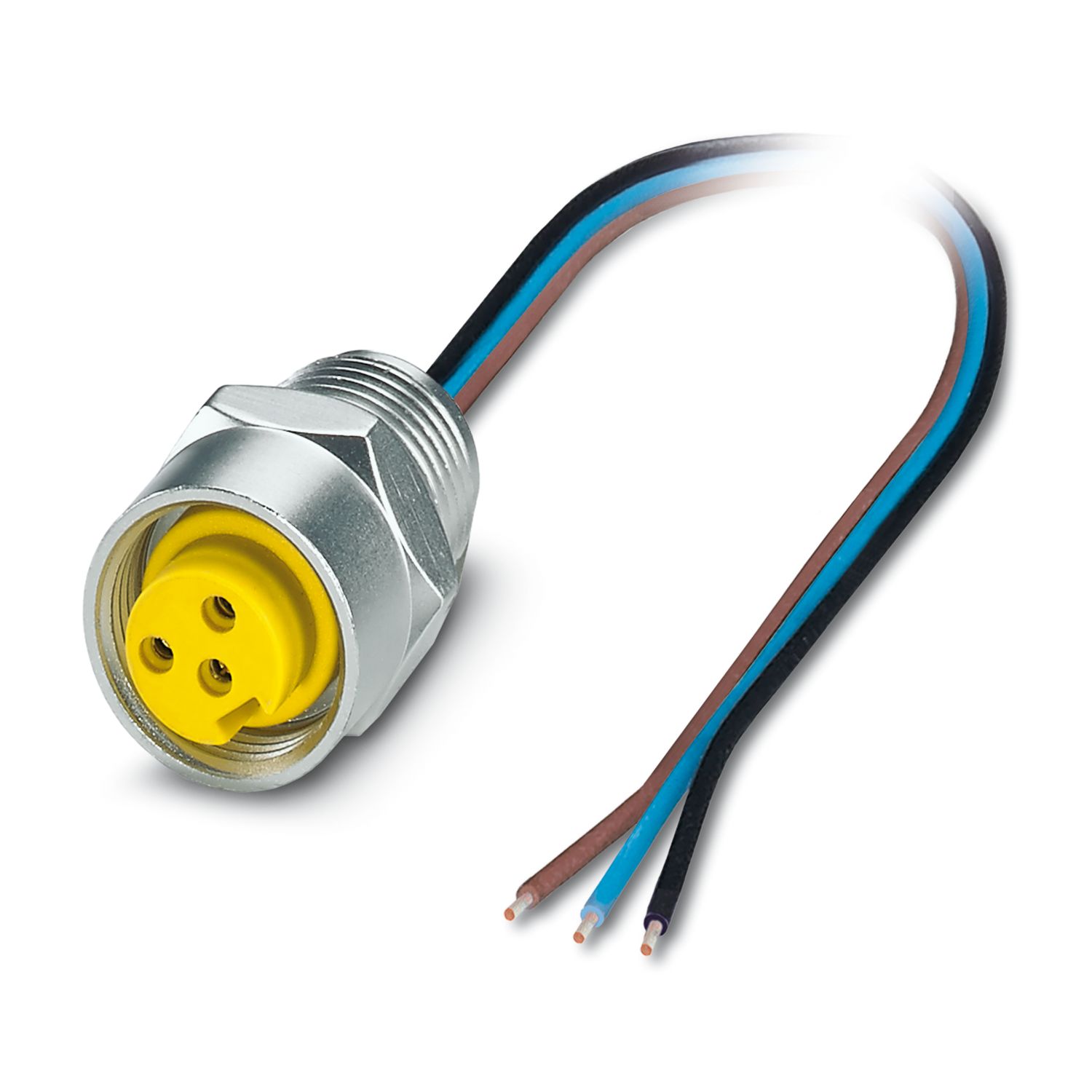

SACC-E-MINF-3CON-NPT12-547/1,0 - Flush-type connector

SACC-E-MINF-3CON-NPT12-547/1,0 - Flush-type connector

1420948

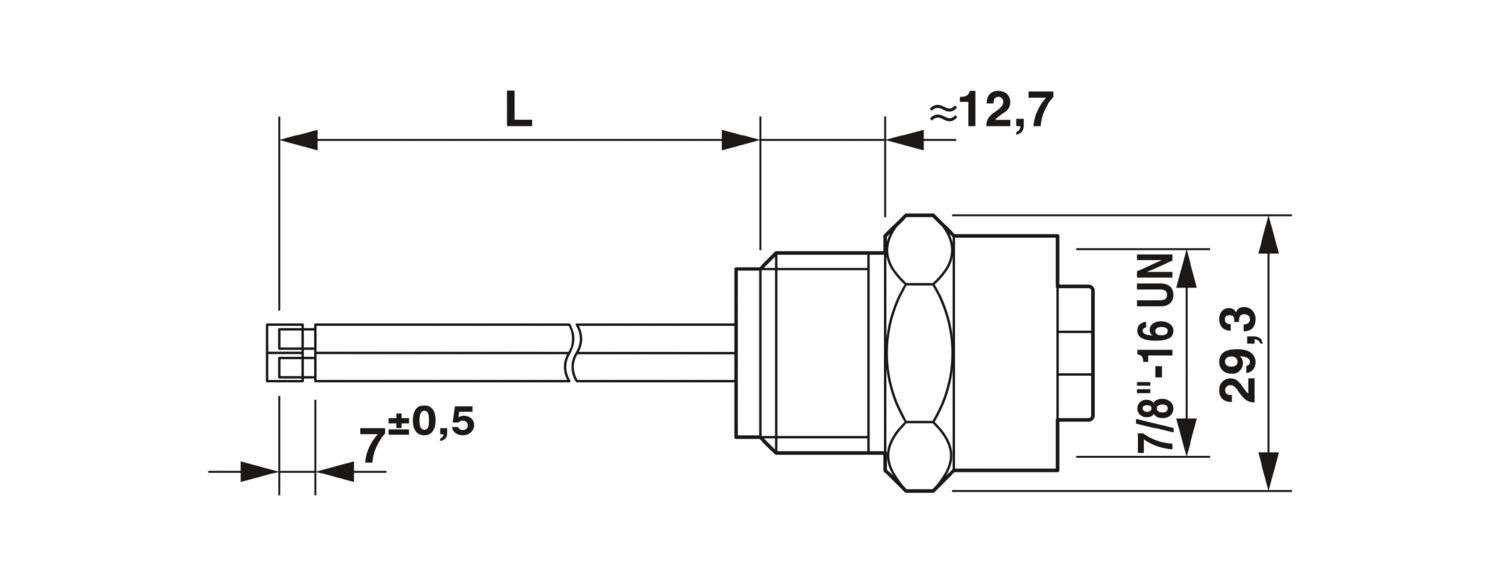

Flush-type connector, 3-position, Socket, straight, 7/8"-16UNF, on free cable end, Front mounting, with 1/2 inch-14 NPT mounting thread, Individual wires, cable length: 1 m, 0.75 mm², PVC litz wire

Product details

Expand all Collapse all

Technical data

Mounting

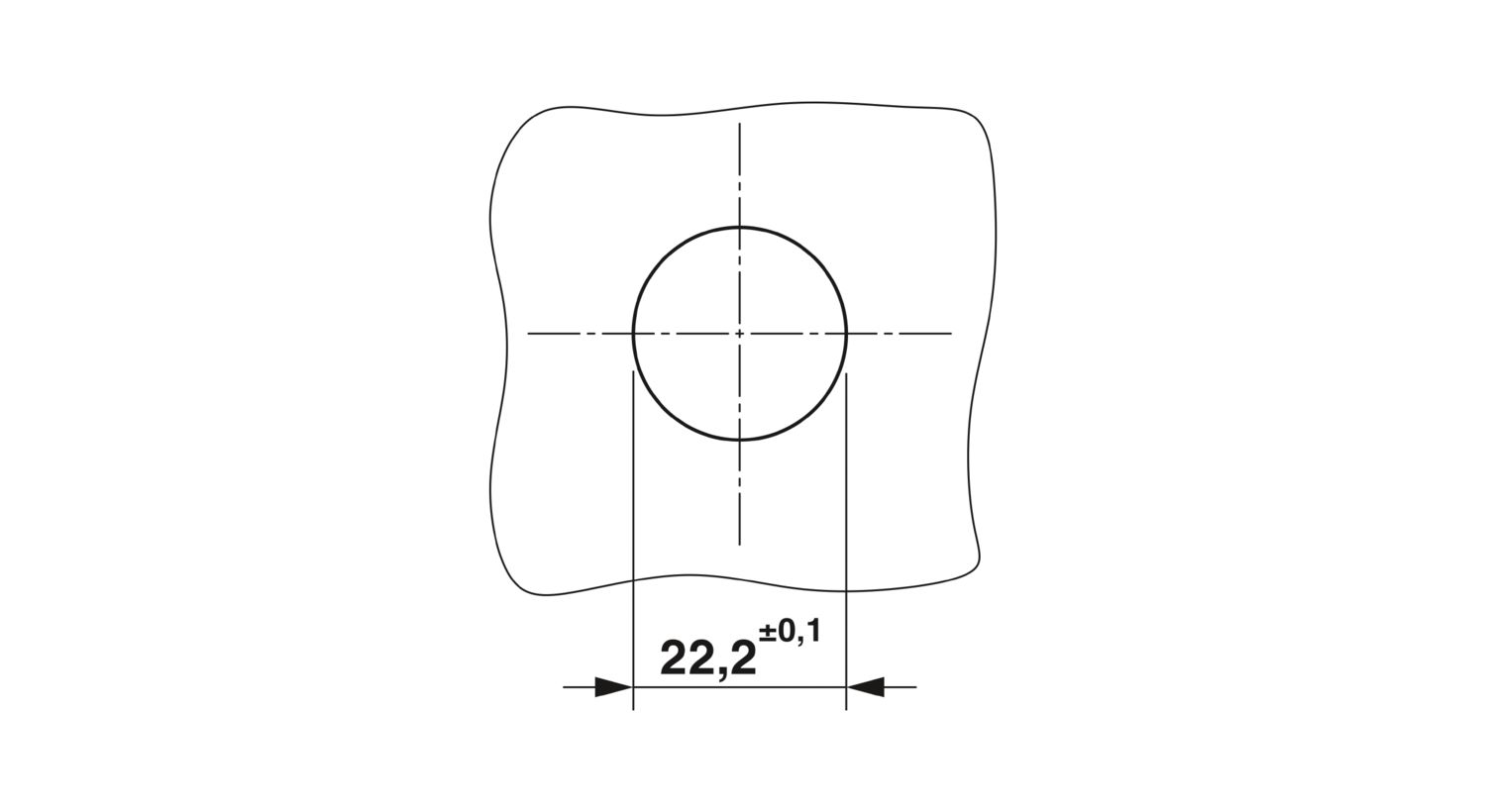

Mounting type	Front mounting, with 1/2 inch-14 NPT mounting thread

Product properties

Product type	Circular connectors (device side)

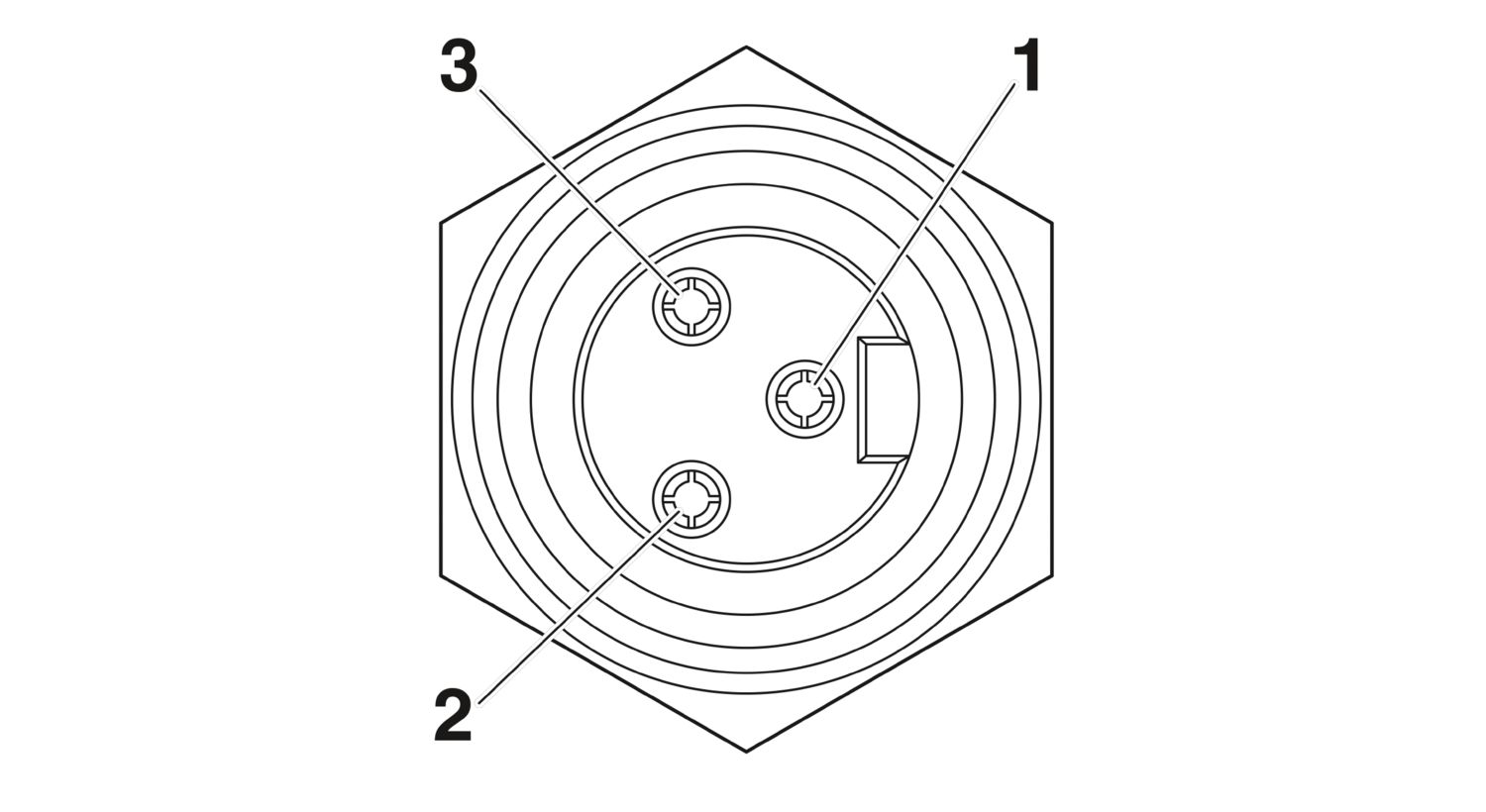

Number of positions	3
No. of cable outlets	1
Shielded	no
Insulation characteristics
Degree of pollution	3

Material specifications

Flammability rating according to UL 94	V-0
Housing surface material	Al anodized
Contact material	Copper alloy
Contact surface material	Au
Contact carrier material	PVC
Material for screw connection	Anodized aluminum

Electrical properties

Insulation resistance	≥ 100 MΩ
Nominal voltage U_N	300 V AC/DC (UL rating)
Nominal voltage U_N		50 V AC/DC (IEC rating)
Nominal current I_N	13 A

Connection data

Conductor connection
Connection method	Individual wires
Contact connection type	Socket
Conductor cross section	0.75 mm²
Tightening torque	10 lb_f-in.
Tightening torque		1.12 Nm

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	> 500

Connector

Connection 1
Head design	Socket
Head cable outlet	straight
Head thread type	7/8"-16UNF
Connection 2
Head design	free cable end

Cable/line

Cable length	1 m
Cable type	PVC litz wire
Wire diameter incl. insulation	1.78 mm

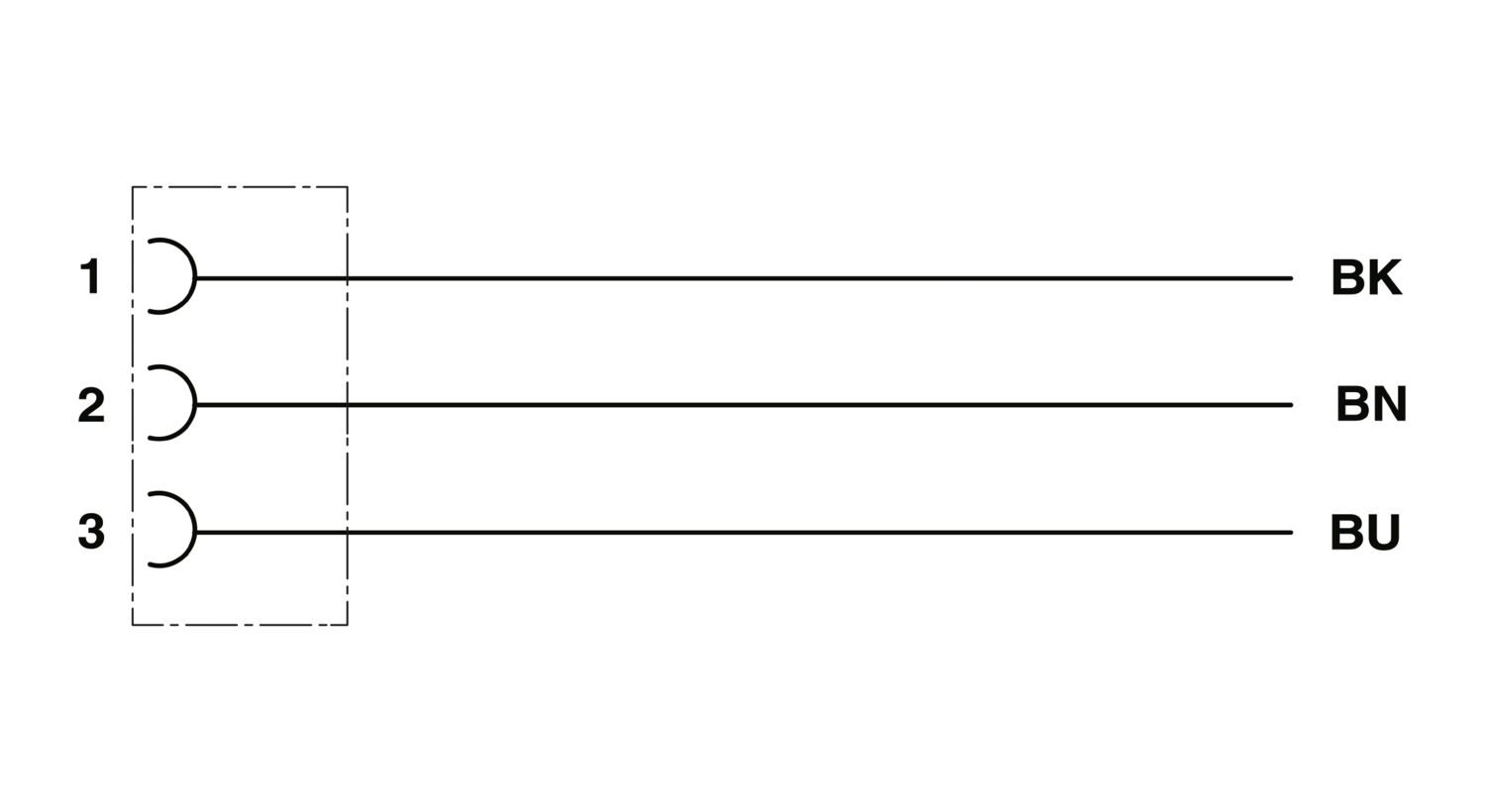

Single wire, color	black 1, brown 2, blue 3
Cable cross section	0.75 mm²
AWG signal line	18
Material wire insulation	PVC
Thickness, insulation	Core insulation

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP68
		IP68
Ambient temperature (operation)	-20 °C ... 80 °C (Plug)
		-20 °C ... 80 °C (cable, fixed installation)

Standards and regulations

Standard designation	7/8" connector
Standards/specifications	UL 2238
Note	Suitable for use in Class I, Division 2 Groups A, B, C, D hazardous locations according to ISA standard 12.12.01-2015, section 8.2 and 8.8.3

Commercial data

Item number	1420948
Packing unit	1 pc
Minimum order quantity	10 pc
Note	Made to order (non-returnable)
Sales key	AF2ICA
Product key	AF2ICA
GTIN	4055626403557
Weight per piece (including packing)	74 g
Weight per piece (excluding packing)	74 g
Country of origin	MX

Classifications

ECLASS

ECLASS-13.0

27440109

ETIM

ETIM 9.0

EC003569

UNSPSC

UNSPSC 21.0

39121400

Approvals



UL Listed

Approval ID: FILE E 221474



cUL Listed

Approval ID: FILE E 221474

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
