Connector - SACC-M12MS-4QO-0,34

Connector, Universal, 4-position, Plug straight M12, Coding: A, Insulation displacement connection, knurl material: Plastic, external cable diameter 3.5 mm ... 6 mm

Product Details

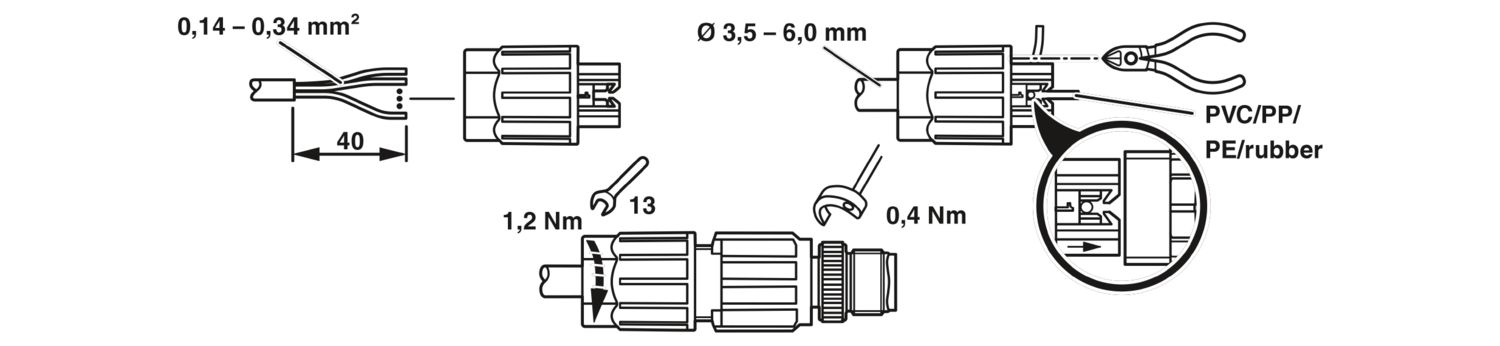

Assembly instruction: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties.

Product type Circular connector (cable-side)
Number of positions 4
No. of cable outlets 1
Shielded no
Coding A - standard
Cable outlet straight
Insulation characteristics
Overvoltage category III
Degree of pollution 3

Degree of protection IP65
Ambient temperature (operation) -25 °C ... 80 °C (Plug / socket)
Ambient temperature (assembly) -5 °C ... 50 °C (During assembly)

Dimensional drawing
Length 54 mm
External dimensions
Outside diameter 3.5 mm ... 6 mm
Diameter housing 16.3 mm

Insertion/withdrawal cycles ≥ 100
Connection 1
Head design Plug
Head cable outlet straight
Head thread type M12
Coding A-coded

Rated surge voltage 2.5 kV
Contact resistance ≤ 5 mΩ
Insulation resistance ≥ 100 MΩ
Nominal voltage UN 125 V AC
125 V DC
Nominal current IN 4 A

Color Handle area black
Flammability rating according to UL 94 V0
Sealing material NBR
Material of grip body PA 6
Contact material CuSn
Contact surface material Ni/Au
Contact carrier material TPU
Cable gland material Plastic
Wire insulation material PVC / PE / PP / rubber

Conductor connection
Connection method Insulation displacement connection
Connection cross section 0.14 mm² ... 0.34 mm²
Connection cross section AWG 26 ... 22
Tightening torque 0.4 Nm (M12 knurl)
1.2 Nm (Pressure nut)
Pin assignment
Contact | Color (signal designation) | Contact (optional) 1 = BN
2 = WH
3 = BU
4 = BK

Assembly instructions AWG 20 conductor cross section upon request

Standards/specifications according to IEC 61076-2-101

Cable structure
Signal type/category Universal
External cable diameter 3.5 mm ... 6 mm

Item number 1641714
Packing unit 1 pc
Minimum order quantity 1 pc
Sales Key BF2CCA
Product Key BF2CCA
Catalog Page Page 20 (C-2-2019)
GTIN 4017918925161
Weight per Piece (including packing) 11.7 g
Weight per Piece (excluding packing) 11.7 g
Customs tariff number 85366900
Country of origin DE


ECLASS-10.0.1 27440102
ECLASS-9.0 27440102
ECLASS-11.0 27440102


ETIM 8.0 EC002635


UNSPSC 21.0 39121400

cUL Recognized

Approval ID: FILE E 118976
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
300 V 4 A

UL Recognized

Approval ID: FILE E 118976
Approval Specification Data
Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2
300 V 4 A


Approval ID: EAC-Zulassung


Approval ID: RU C-DE.BL08.B.00511

cULus Recognized

China RoHS Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Your advantages

Safe use in the field, thanks to a high degree of protection
Insulation displacement connection: innovative and time-saving assembly without stripping the single wire
