Feed-in terminal adapter for TMC 7 two- and three-pos. bus bars
TMC 7 B2/3 TERM
-
Terminal adapter
1022232
Feeder terminal adapter for TMC 72 or TMC 73 circuit breakers, two- or three-phase bus bars. Rated for 600 V AC/DC 115 A. Wire range 10…1/0 AWG. UL 508 Listed for connection to UL 1077 rated circuit breakers.
Product details
| Product type | Circuit breakers |
| Type | Adapter |
| Rated voltage (III/3) | 1000 V AC/DC |
| Tightening torque, min | 5.65 Nm |

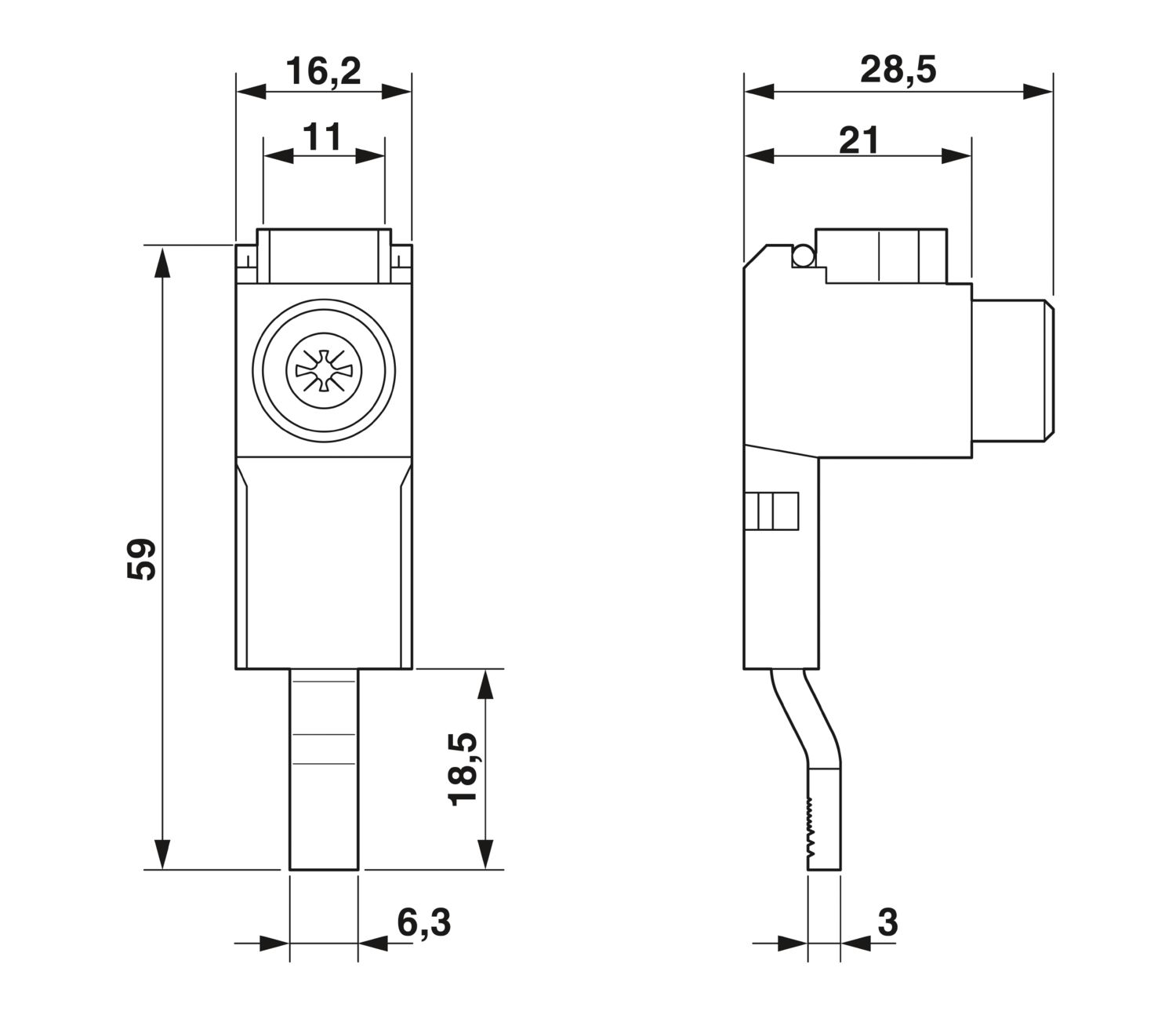

| Dimensional drawing |
|
| Width | 16.2 mm |
| Height | 28.5 mm |
| Color | light gray (RAL 7035) |
| light gray (RAL 7035) |
