EMG 30-SP- 4K7LIN
-
Setpoint adjuster
2940252
Setpoint value potentiometer, to set setpoints individually, resistance value 4,7 kΩ
Product details
| Product type | Setpoint potentiometer |
| Potentiometer | |
| Potentiometer, resistance value | 4.7 kΩ ±20 % |
| Linearity | 5 % (of final value) |
| Potentiometer, current-carrying capacity | 0.5 W |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |

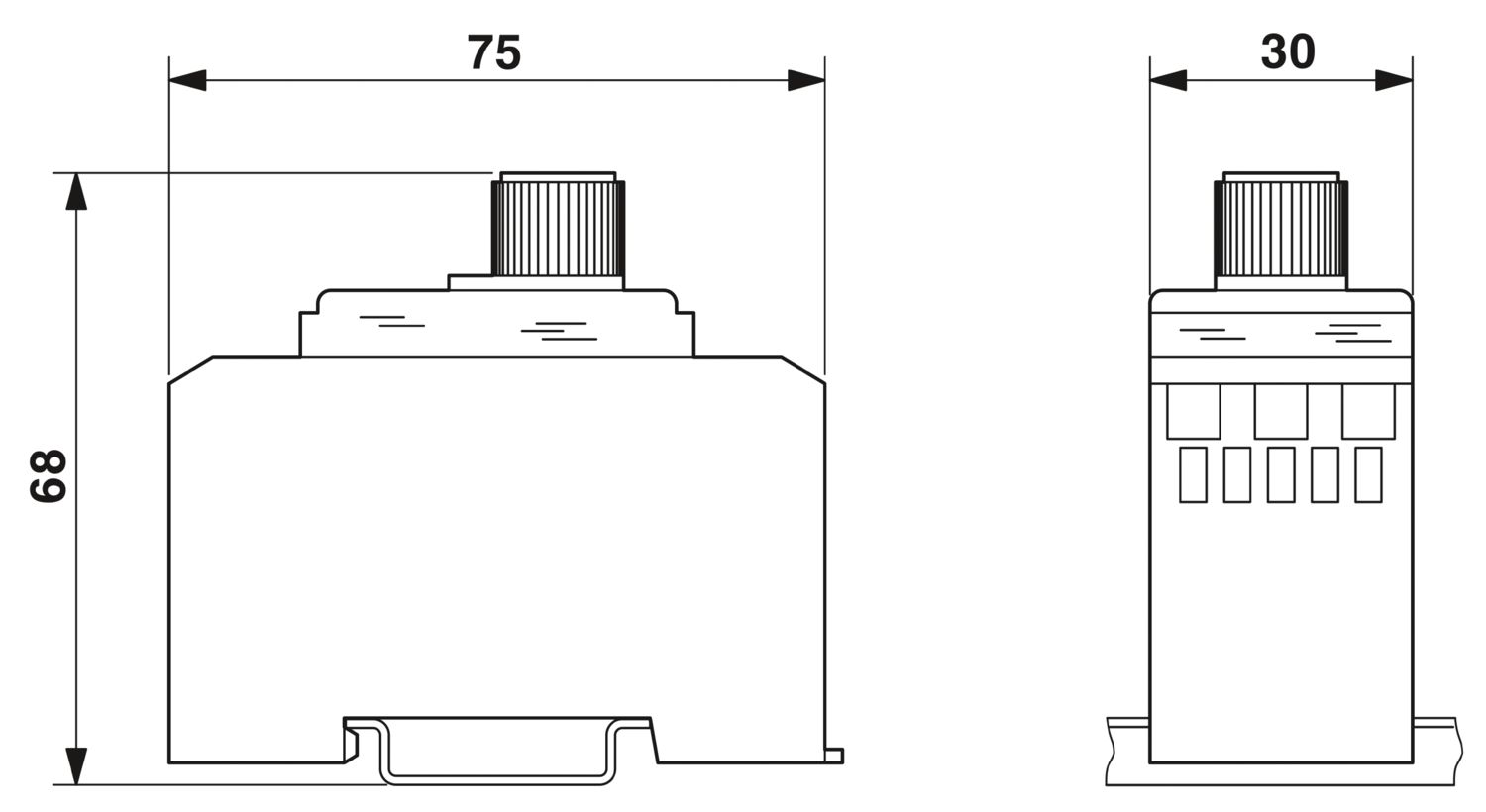

| Dimensional drawing |
|
| Width | 30 mm |
| Height | 75 mm |
| Depth | 68 mm |
| Color | green (RAL 6021) |
| Housing material | Polycarbonate fiber reinforced PC-F |
| Ambient conditions | |
| Ambient temperature (operation) | 0 °C ... 40 °C |
| Mounting type | DIN rail mounting |
| Mounting position | any |
Your advantages
For direct setpoint definition in combination with a constant voltage source
