PLC-BSC-120UC/21HC/SO46 - Relay base

2980432

14 mm PLC basic terminal block with protection against interference currents/voltages on the control side, with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, for high continuous currents, 1 changeover contact, input voltage 120 V AC

This product needs further products for operation. Mandatory accessories

Product details

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product type	Relay socket
Product family	PLC-INTERFACE
Application	Filter to prevent interference
Operating mode	100% operating factor
Compatible components	Miniature relay, REL-MR-110DC/21HC
Insulation characteristics
Pollution degree	3

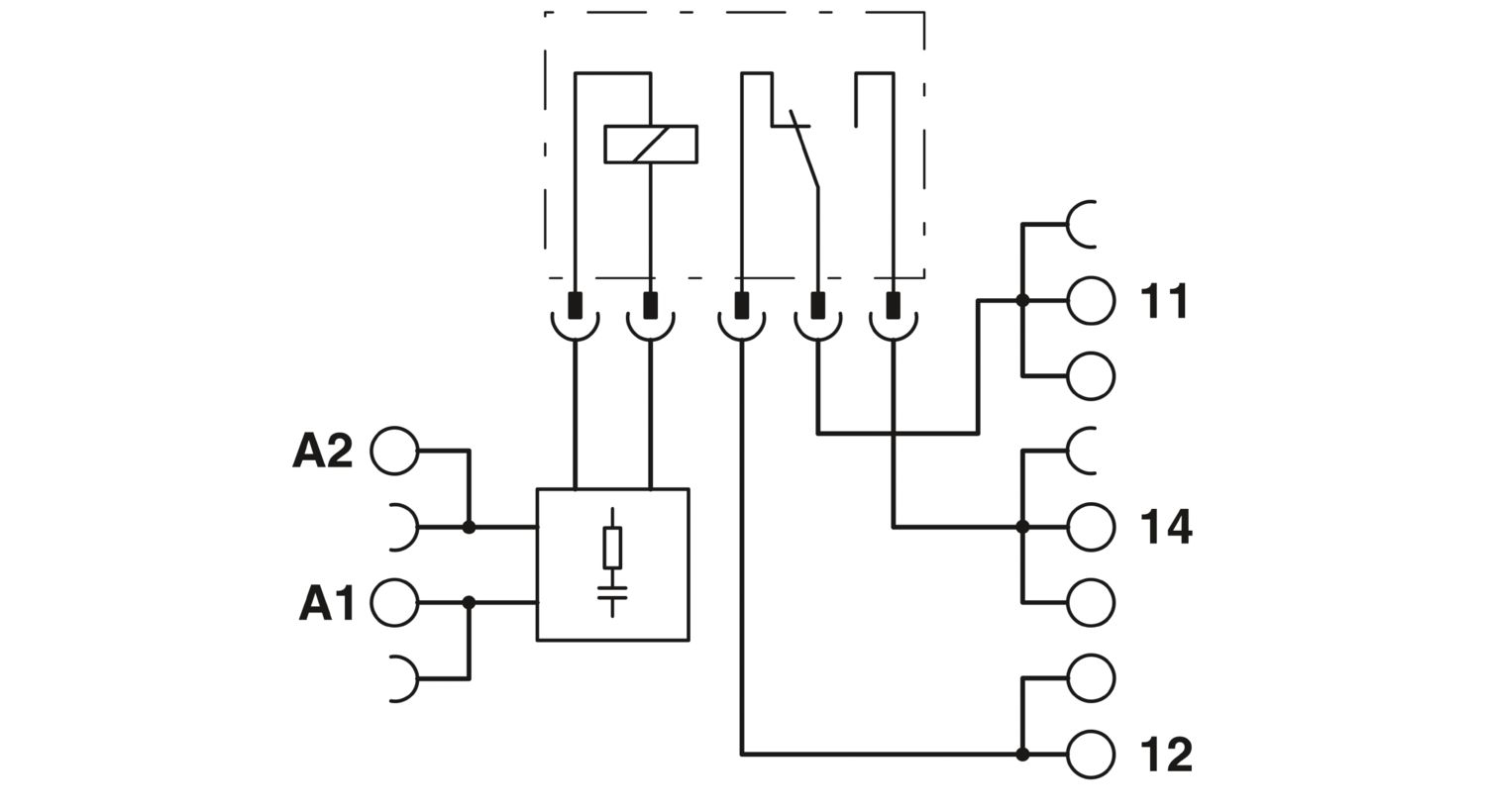

Protective circuit	Bridge rectifier; Bridge rectifier
	RCZ filter; RCZ filter

Nominal input voltage U_N	120 V AC
	The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Input voltage range in reference to U_N	0.85 ... 1.4 (at 20 °C)
Typical input current at U_N	8.5 mA
Typical response time	7 ms
Typical release time	10 ms
Nominal input voltage U_N	120 V AC
	The nominal voltage of the plug-on electromechanical relay or solid-state relay (see necessary accessories) deviates from the nominal input voltage of the base with integrated upstream circuit
Relay assembly
Nominal input voltage U_N	120 V AC
Input voltage range in reference to U_N	0.85 ... 1.4
Typical input current at U_N	8.5 mA (50 Hz)
	9.5 mA (60 Hz)
Typical response time	8 ms
Typical release time	15 ms
Typical release voltage	45 V AC
Operating voltage display	Yellow LED
Protective circuit	Bridge rectifier; Bridge rectifier
	Filter; Filter
Optocoupler assembly
Operating voltage display	Yellow LED
Protective circuit	Bridge rectifier; Bridge rectifier
	Filter; Filter

Compatible components	Miniature relay, REL-MR-110DC/21HC

Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.14 mm² ... 2.5 mm²
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
	0.2 mm² ... 2.5 mm² (Single ferrule)
	2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
Conductor cross section AWG	26 ... 14
Tightening torque	0.6 Nm ... 0.8 Nm

Status display	LED

Width	14 mm
Height	80 mm
Depth	94 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0 (Housing)

Ambient conditions
Ambient temperature (operation)	-40 °C ... 55 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C

CE
Certificate	CE-compliant
UKCA
Certificate	UKCA-compliant
Shipbuilding approval
Certificate	TAE0000196
Corrosive gas test
Identification	ISA-S71.04. G3 Harsh Group
	EN 60068-2-60
Shipbuilding data
Temperature	D
Humidity	A
Vibration	B/C
EMC	B
Enclosure	Required protection according to the Rules shall be provided upon installation on board

Electromagnetic compatibility	Conformance with EMC directive
Low Voltage Directive	Conformance with Low Voltage Directive

Mounting type	DIN rail mounting
Assembly note	in rows with zero spacing
Mounting position	any

Commercial data

Item number	2980432
Packing unit	10 pc
Minimum order quantity	1 pc
Sales key	08
Product key	DK623M
Catalog page	Page 389 (C-5-2019)
GTIN	4017918921224
Weight per piece (including packing)	66.5 g
Weight per piece (excluding packing)	58.88 g
Customs tariff number	85366990
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Mandatory accessories

Accessories

Your advantages

High relay release voltage

Resistant to interference currents

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Hexahydromethylphthalic anhydride (CAS: n/a)
REACH candidate substance (CAS No.)		Lead (CAS: 7439-92-1)
SCIP	c1a16e73-4005-4969-8ce3-4400c56baf56
