IB IL TEMPCON 300 UTH-B-PAC
-
Inline function terminal
2819613

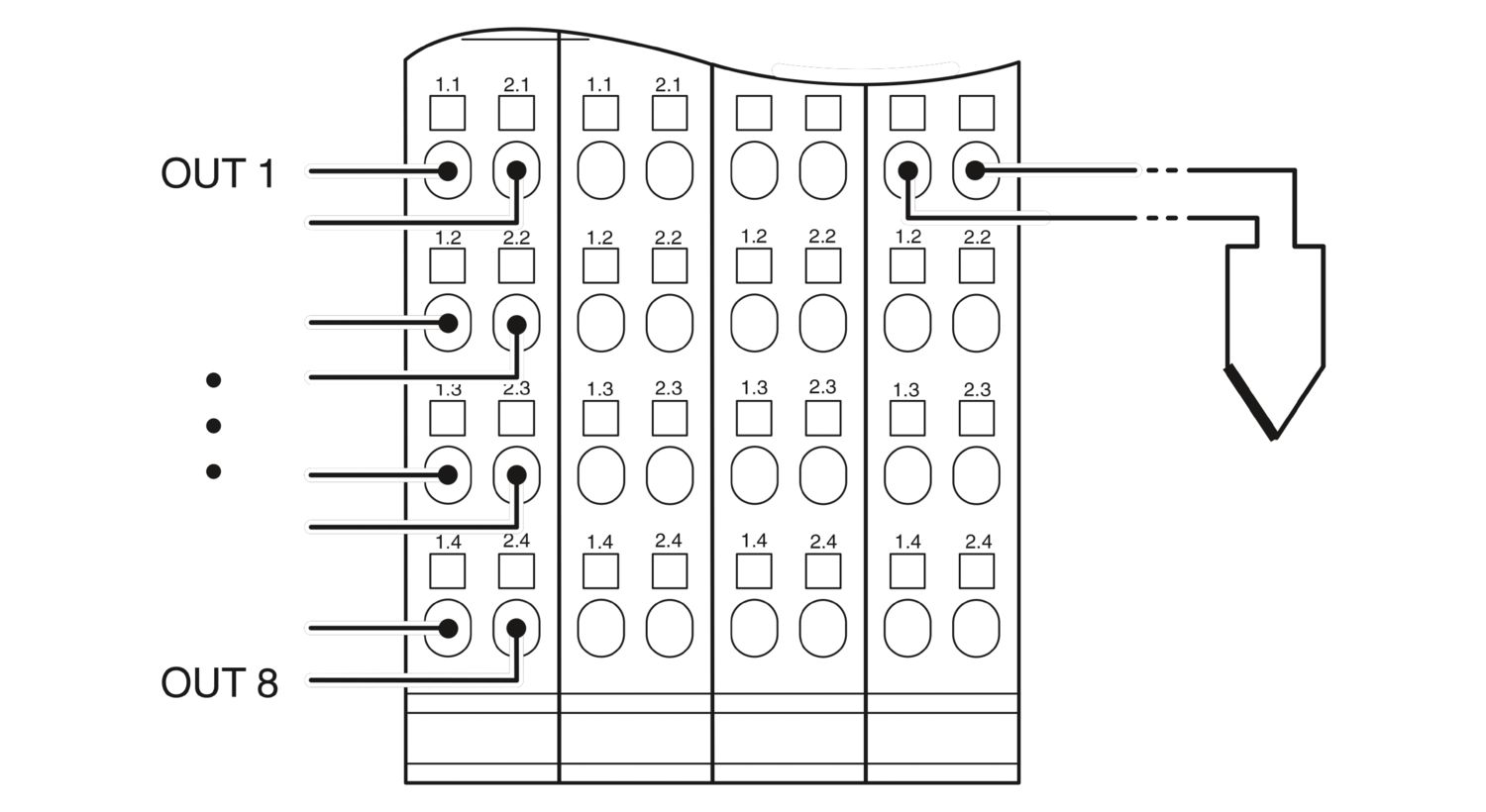

Inline temperature controller, compact, complete with accessories (connector and labeling field) with 4 channels, 4 thermocouple inputs, 8 binary outputs (24 V, 70 mA), 1 input for recording the total current of heating elements, limited to 4 channels.
Product details
| Dimensional drawing |
|
| Width | 48.8 mm |
| Height | 119.8 mm |
| Depth | 71.5 mm |
| Inline local bus | |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Configuration interface | |
| Connection method | V.24 |
| Module | |
| ID code (dec.) | 221 |
| ID code (hex) | DD |
| Length code (hex) | 06 |
| Length code (dec) | 06 |
| Process data channel | 32 bit |
| Input address area | 4 Byte |
| Output address area | 4 Byte |
| Register length | 96 bit |
| Required parameter data | 1 Byte |
| Required configuration data | 5 Byte |
| Output voltage | 24 V DC |
| Output current | 70 mA (short-circuit-proof) |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| No. of channels | 4 |
| Number of plugs | 4 |
| Test section | 7.5 V supply (bus logics)/24 V supply (I/O) 500 V AC 50 Hz 1 min |
| 24 V supply (I/O) / functional ground 500 V AC 50 Hz 1 min | |
| Supply | |
| Supply voltage | 24 V DC |
| Max. current consumption | 600 mA |
| Typical current consumption | 90 mA |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 75% average, 85% seldom |
| Permissible humidity (storage/transport) | 75% average, 85% seldom |
| Mounting type | DIN rail mounting |
Your advantages
The Inline multi-channel temperature controller is a freely parameterizable slave for the Inline installation system.
Limited to 4 closed-loop control circuits
Transmission speed 500 kbps
