The bus coupler is designed for use within a third generation Sercos network and represents the link to the Axioline F system.
Up to 63 Axioline F devices can be connected to an existing Sercos network using the bus coupler.

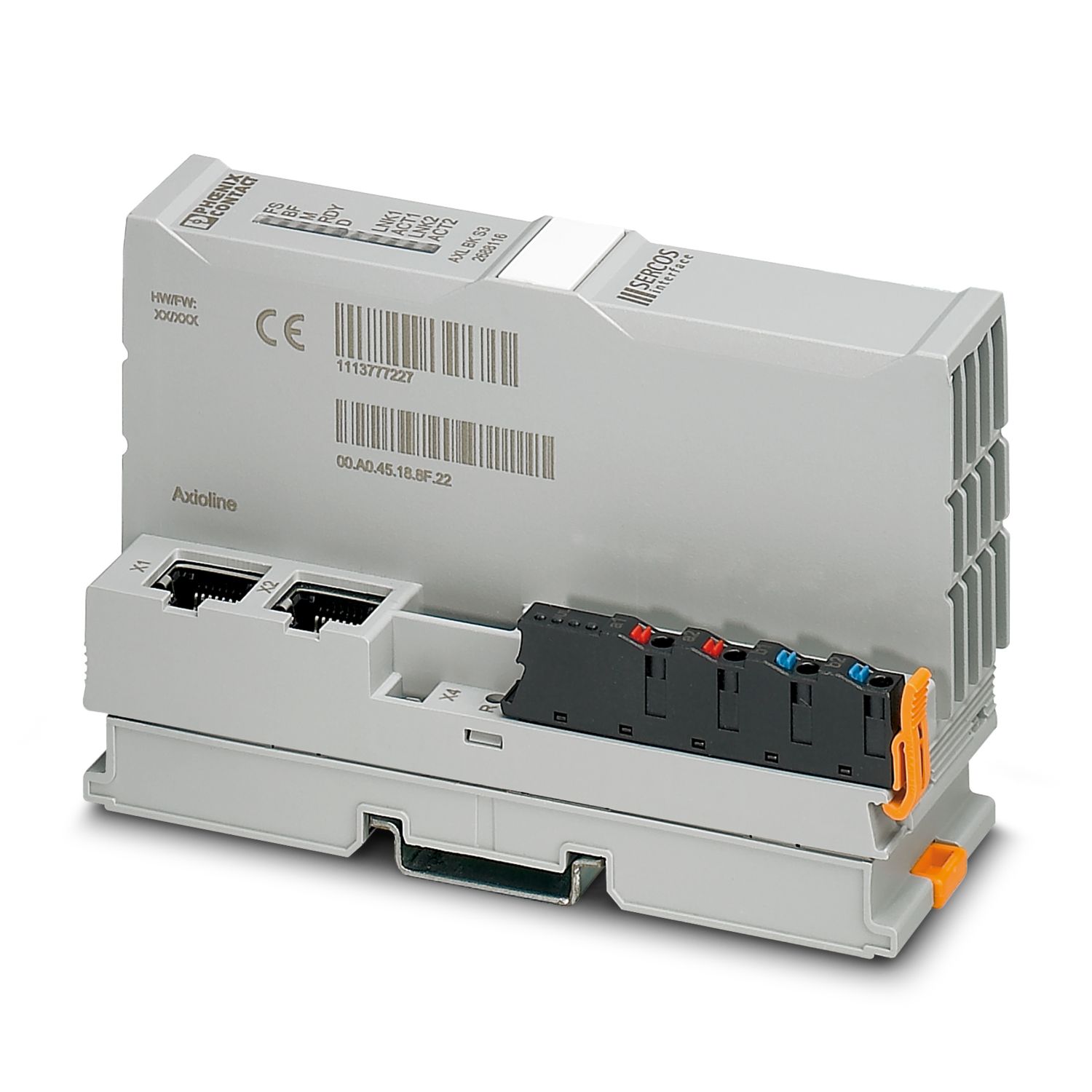

AXL BK S3
-
Bus coupler
2688116
Axioline bus coupler for Sercos (including bus base module and connector)
Free download available.
Downloads
Product details
| Dimensional drawing |
|
| Width | 40 mm |
| Height | 123.6 mm |
| Depth | 75 mm |
| Note on dimensions | The depth applies when a TH 35-7.5 DIN rail is used (in accordance with EN 60715). |
| Color | gray |
| Sercos | |
| No. of channels | 2 |
| Connection method | RJ45 jack |
| Note on the connection method | Autonegotiation |
| Transmission speed | 100 Mbps (Full duplex) |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Axioline F local bus | |
| Connection method | Connection for bus base module |
| Transmission speed | 100 Mbps |
| Service | |
| No. of channels | 1 |
| Connection method | IFS-USB-PROG-ADAPTER |
| Fieldbus: Local bus gateway | |
| Max. number of local bus devices | 63 |
| Sercos | |
| Equipment type | Sercos slave |
| System limits | |
| Number of supported devices | max. 63 (per station) |
| Number of local bus devices that can be connected | max. 63 |
| Product type | I/O component |
| Type | block modular |
| Protective circuit | Surge protection, protection against polarity reversal of the supply voltage |
| Potentials | |
| Protective circuit | Surge protection of the supply voltage; Electronic |
| Polarity reversal protection of the supply voltage; Electronic | |

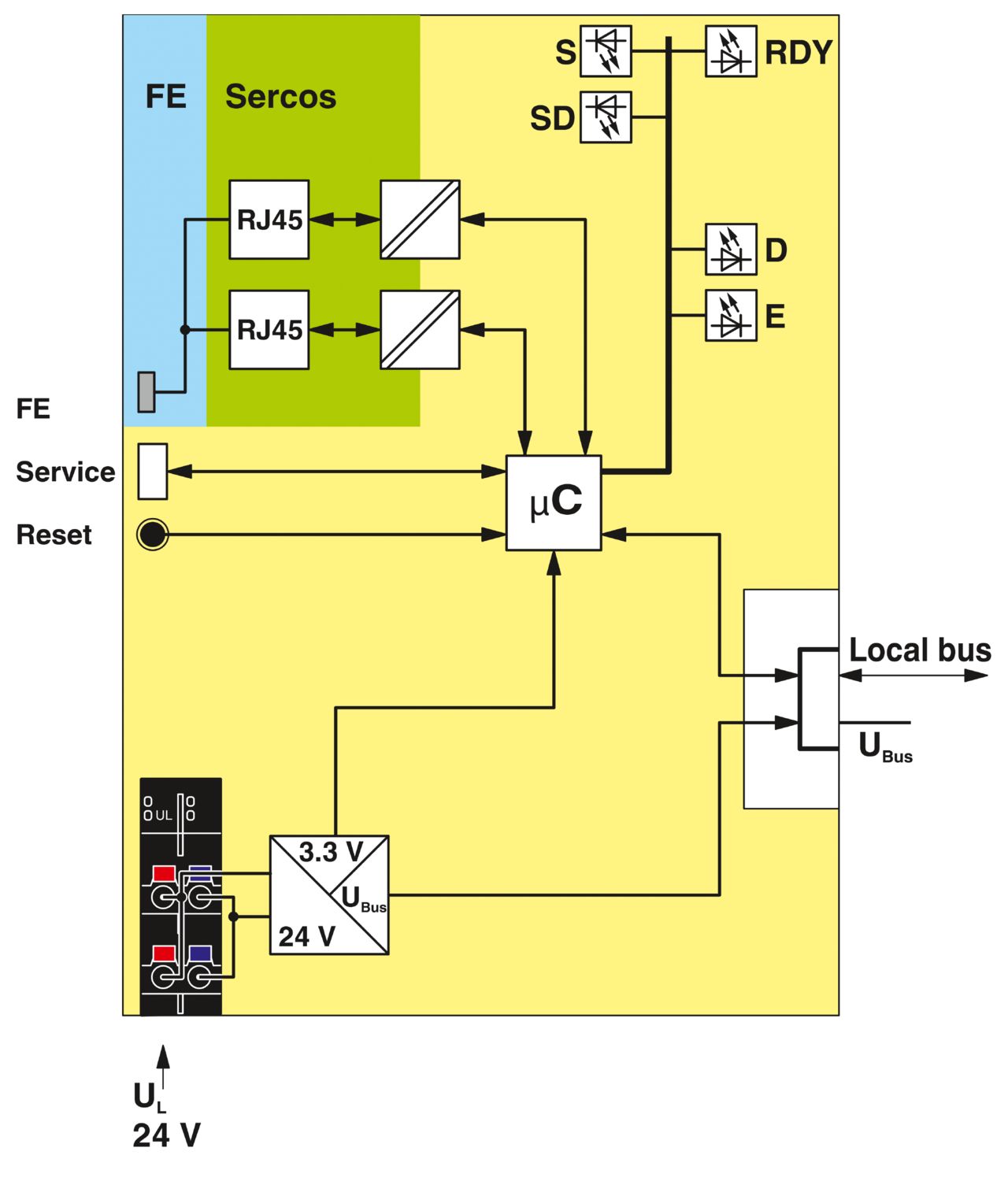

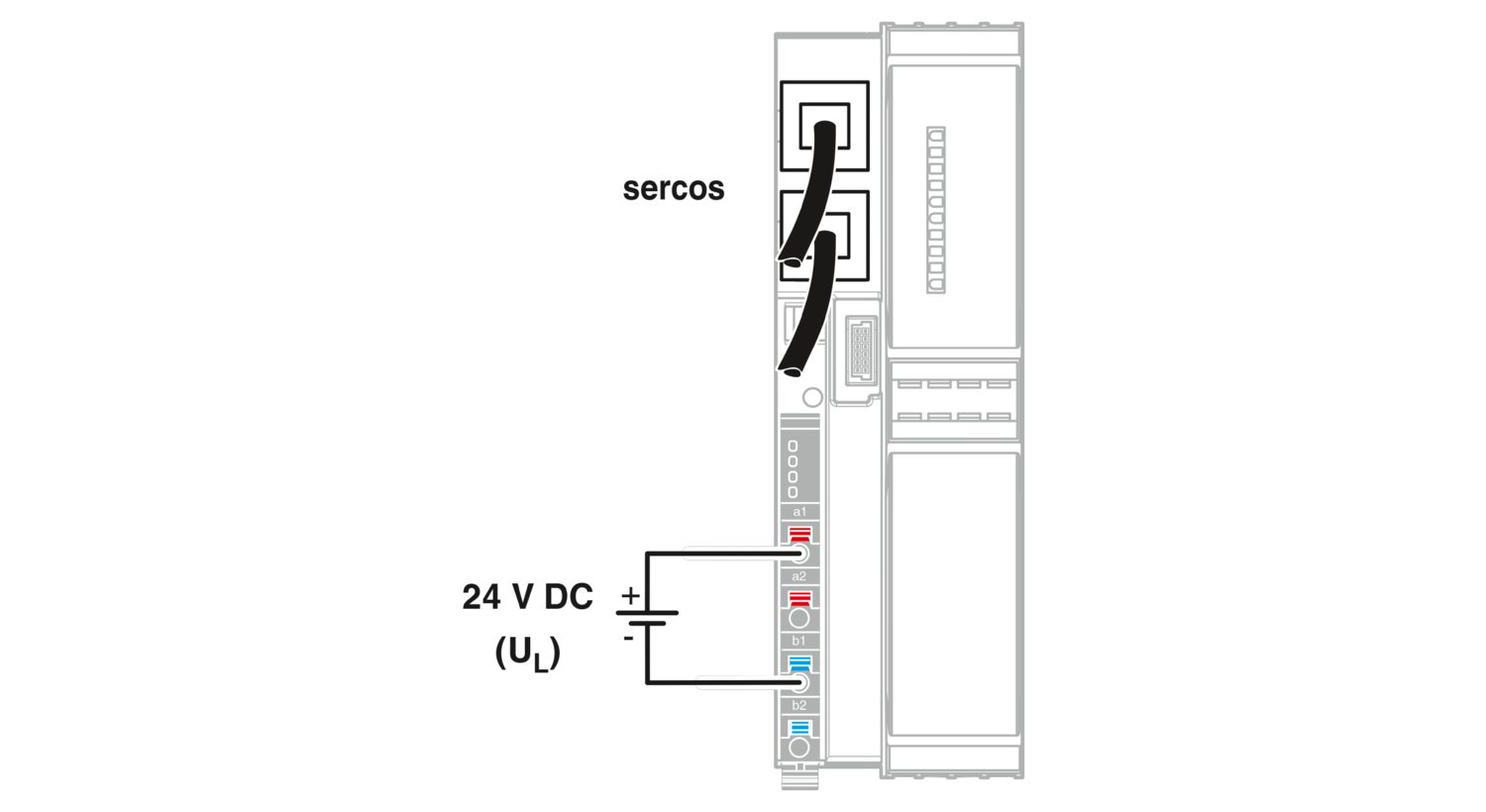

| Potentials: Communications power UL feed-in (the supply of the Axioline F local bus UBus is generated from UL) | |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30 V DC (including all tolerances, including ripple) |
| Current draw | max. 600 mA (with 2 A at UBus for the I/Os and UL = 24 V) |
| Power consumption | max. 14.4 W (2.0 A on UBus, UL = 24 V) |
| Potentials: Axioline F local bus supply (UBus) | |
| Supply voltage | 5 V DC (via bus base module) |
| Power supply unit | 2 A |
| Connection technology | |
| Connection name | Axioline F connector |
| Note on the connection method | Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual. |
| Conductor connection | |
| Connection method | Push-in connection |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Axioline F connector | |
| Connection method | Push-in connection |
| Note on the connection method | Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual. |
| Conductor cross section, rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG | 24 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (according to DIN EN 61131-2) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Your advantages
Typical cycle time of the Axioline F local bus is around 10 μs
Sercos III
2 RJ45 connections
Diagnostic and status indicators
Runtime in bus coupler is negligible (almost 0 µs)
Up to 63 additional Axioline devices can be connected
Firmware can be updated
Minimum Sercos III cycle time of 31.25 µs
