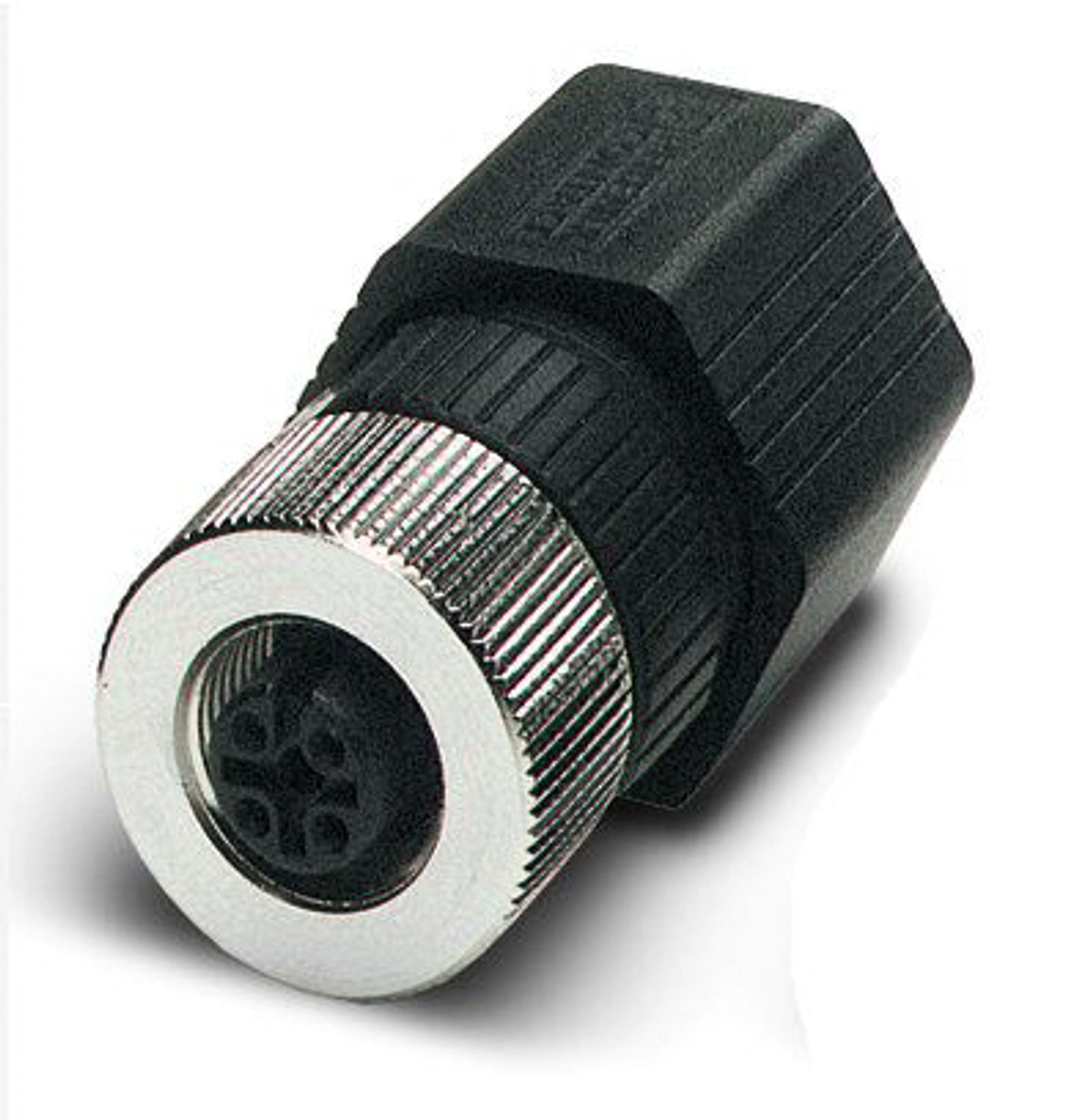

Sensor connector, 4-pos., female connector, straight version, with metal knurl, with LOOP nut
Product details
Product type
Circular connector (cable-side)
Number of positions
4
Flammability rating according to UL 94
V2
Contact material
Cu alloy
Contact surface material
Pre-nickel plated and tin-plated
Wire insulation material
PVC / PE
Nominal current IN
4 A
Ambient conditions
Degree of protection
IP65
IP67
Ambient temperature (operation)
-25 °C ... 80 °C
-25 °C ... 50 °C (temperature when conductor connected Specifications of the cable manufacturer must be observed)
Item number
1640427
Packing unit
1 pc
Minimum order quantity
1 pc
Sales key
02
Product key
AF2CCA
GTIN
4017918173203
Weight per piece (including packing)
31.38 g
Weight per piece (excluding packing)
31.38 g
Customs tariff number
85366990
Country of origin
DE
ECLASS
ECLASS-13.0
27440116
China RoHS
Environment friendly use period (EFUP)
EFUP-50
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
