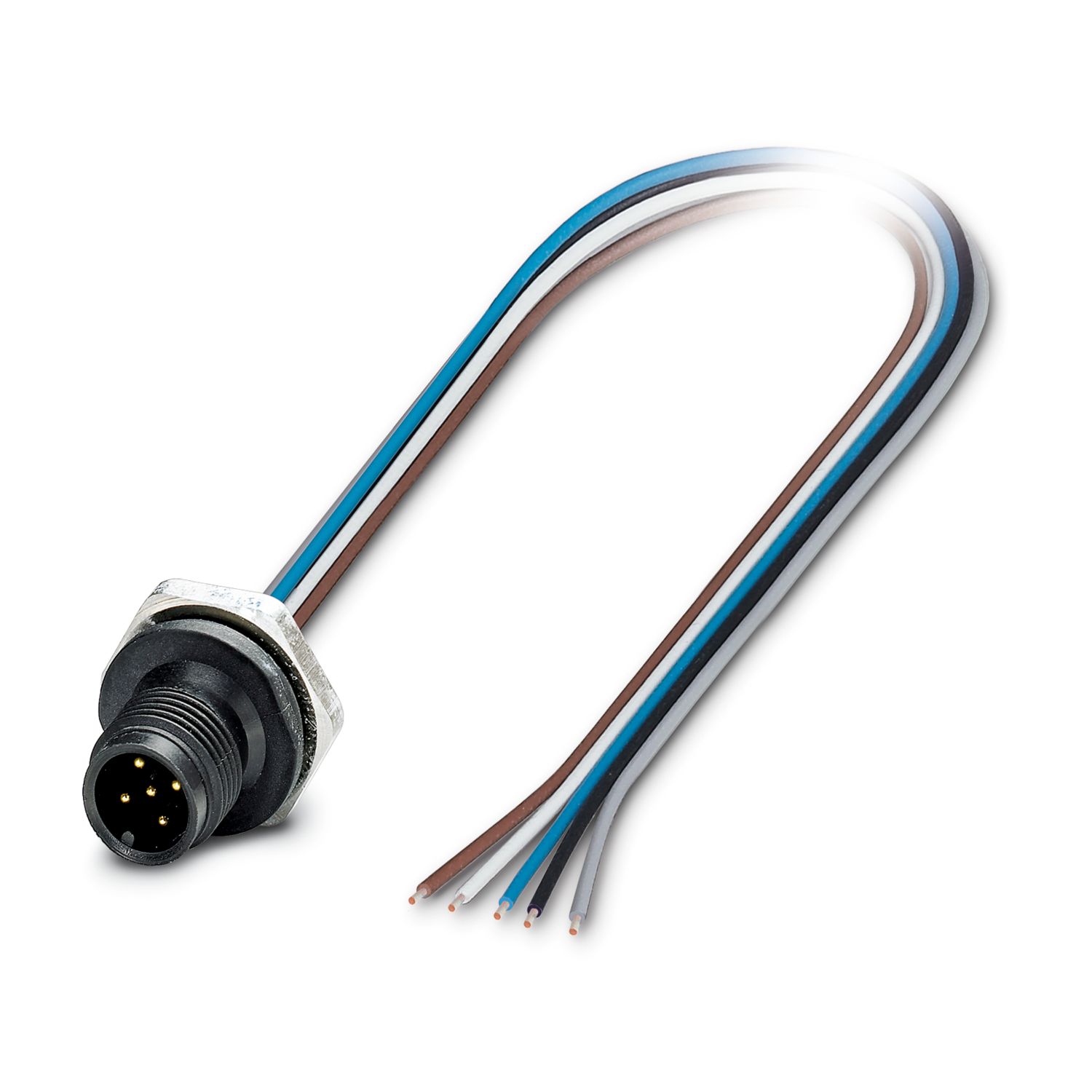

Circular connectors (device side) - SACC-E-M12MS-5CON-M16/0,5 P
M12 flush-type connector
Housing cutout for M12 fastening thread, mounting panel with feed-through hole (alternative with surface as protection against rotation)
Pin assignment M12 male connector, 5-pos., A-coded, male side

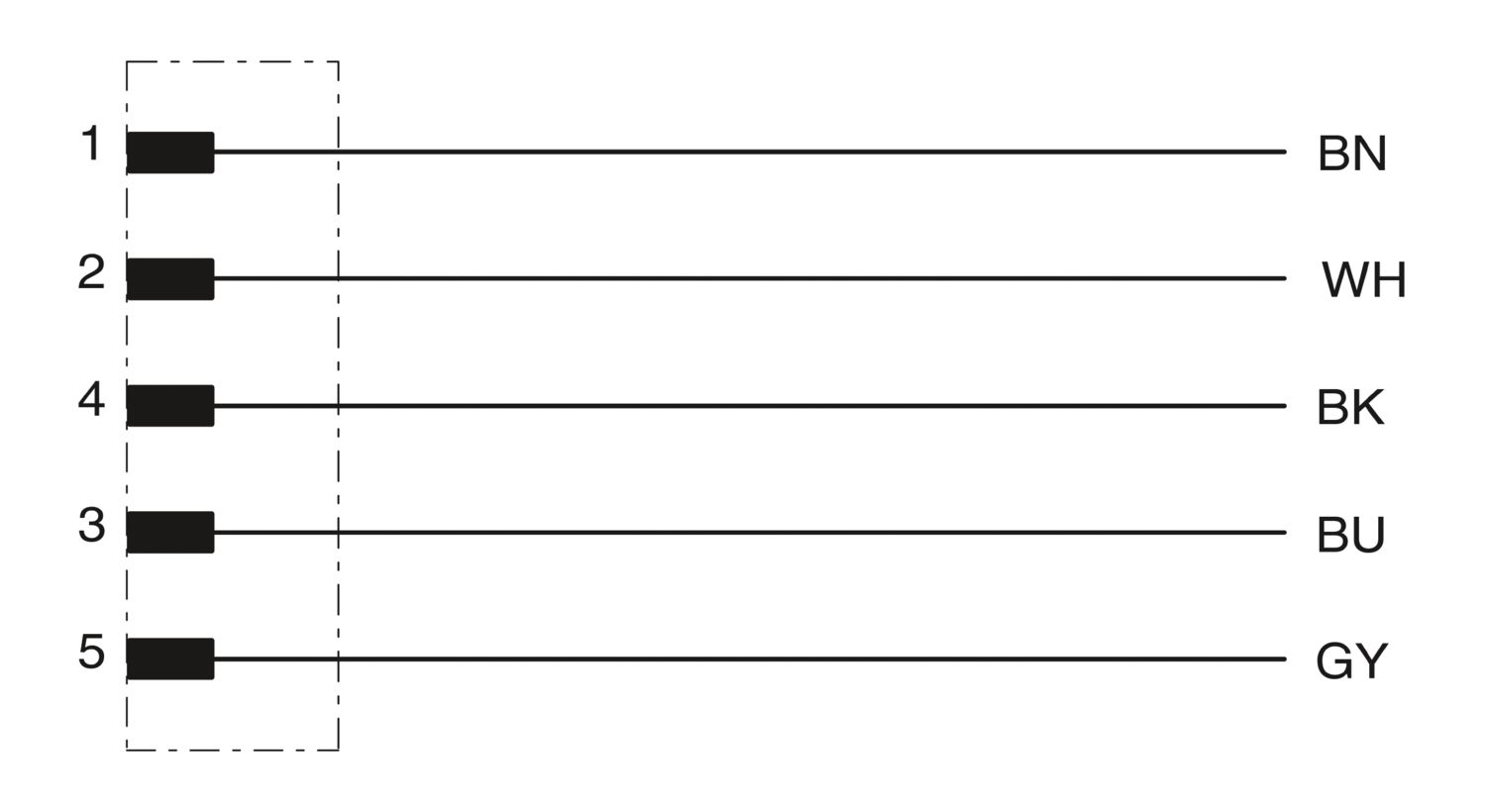

Contact assignment of the M12 plug
Circular connectors (device side) - SACC-E-M12MS-5CON-M16/0,5 P
1436411
Sensor/Actuator flush-type connector, male, 5-pos., M12, A-coded, front/screw mounting with M16 thread, with 0.5 m TPE litz wire, 5 x 0.25 mm2, plastic version
