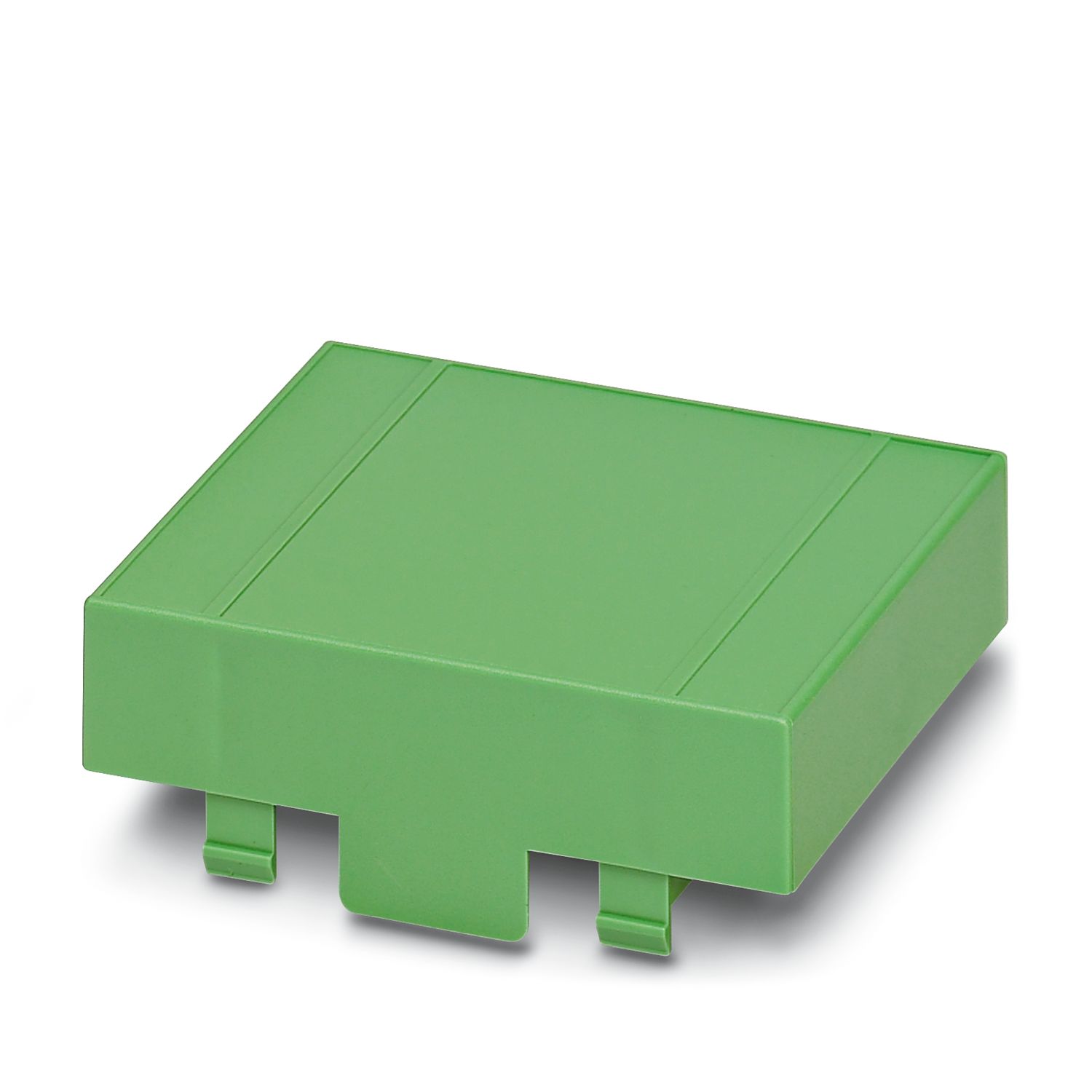

EG 67,5-AG/PC GN
-
Upper housing part
2764946
Upper housing part, color: green ,Component housing, Cover, closed, color: green, width: 67.5 mm, height: 17.5 mm
Product details
| Product type | Upper housing part |
| Housing type | Component housing |
| Product family | EG..-A |
| Number of positions | 26 |
| Type | Cover, closed |

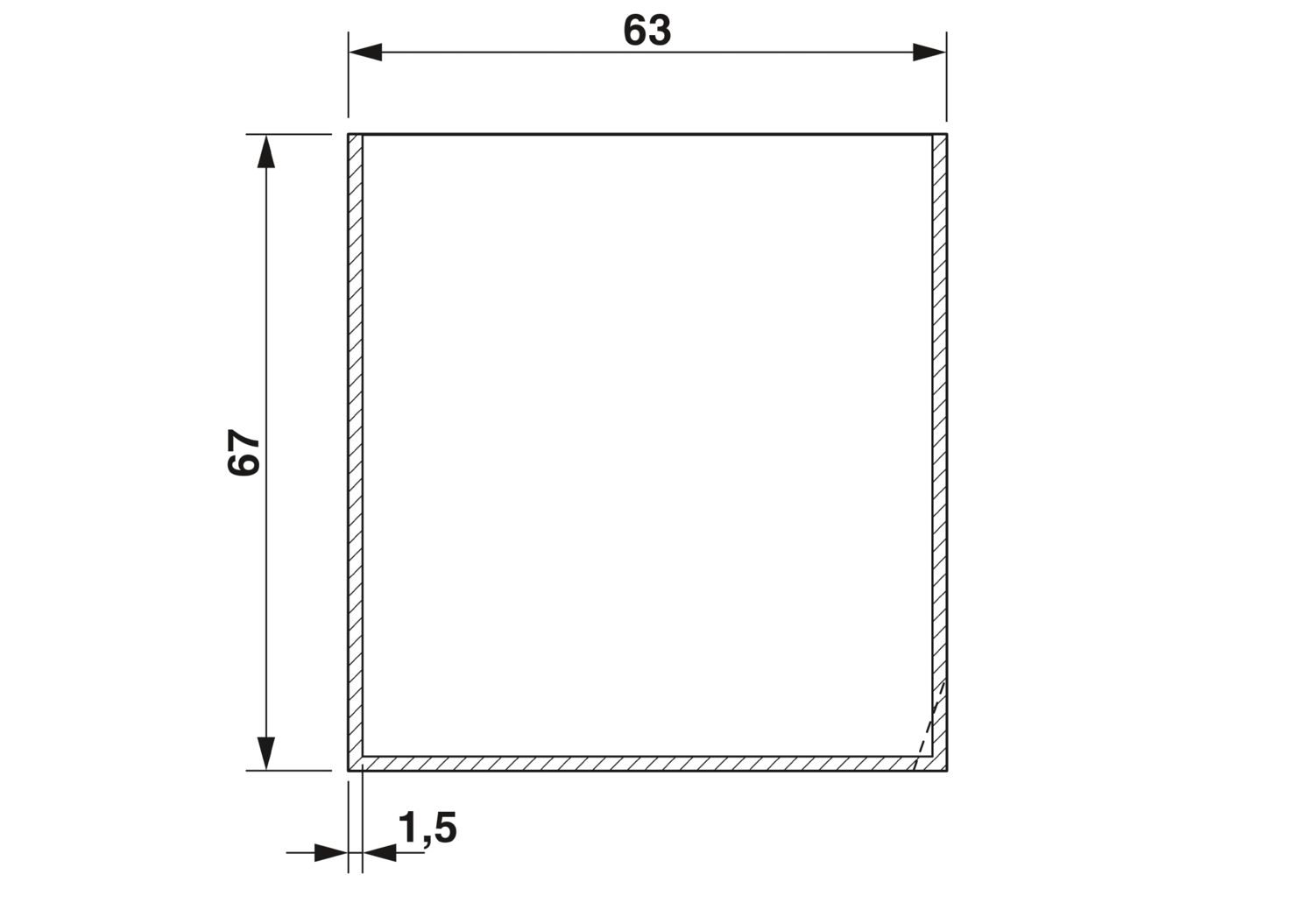

| Dimensional drawing |
|
| Width | 67.5 mm |
| Installed height | 17.5 mm |
| Depth | 75 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Surface characteristics | untreated |
| Mounting type | Snap in |
