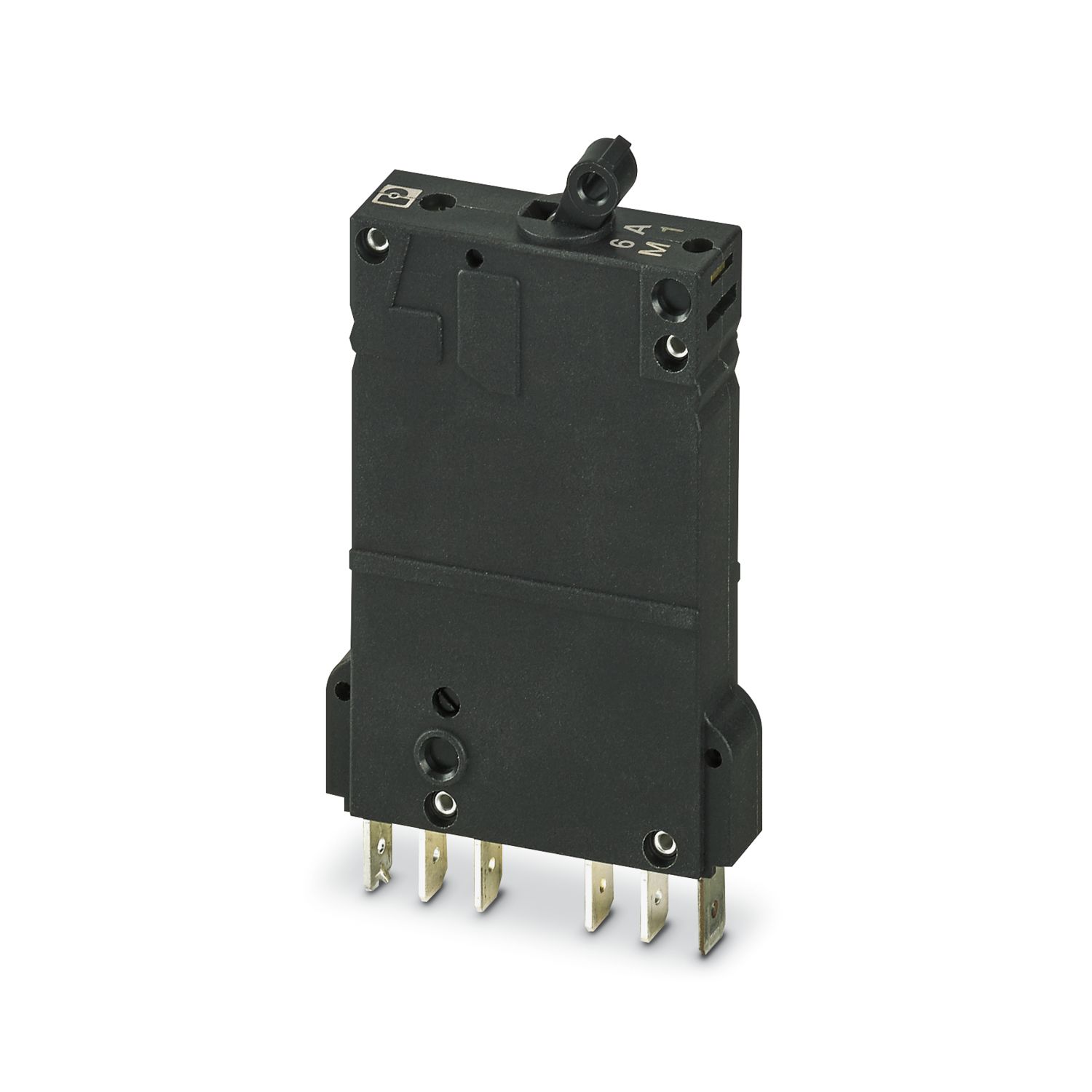

TMCP 1 M1 300 6,0A - Thermal-magnetic device circuit breaker

0915810

Thermal-magnetic circuit breaker, 1-pos., normal blow, 1 N/O contact and 1 N/C contact

Product details

Product type	Thermomagnetic device circuit breakers
Product family	TMCP
Type	Male
Number of positions	1
No. of channels	1
Insulation characteristics
Overvoltage category	II
Degree of pollution	2

Fuse type	Automatic device
Maximum power dissipation for nominal condition	≤ 1.62 VA
General
Rated voltage	250 V AC
	65 V DC
Rated current I_N	6 A
Rated surge voltage	2.5 kV
Insulation resistance R_iso	> 100 MΩ (500 V DC)
Auxiliary circuit	240 V AC / 1 A (Low-induction)
	65 V AC / 1 A (Low-induction)
Tripping method	TM (thermal-magnetic)
Device resistance	0.045 Ω
Rated short-circuit switching capacity I_cn	800 A
	2500 A (32 V DC)
Short-circuit switching capacity	5000 A (UL 1077: 277 V AC)
	2000 A (UL 1077: 65 V DC)
Dielectric strength	3000 V AC (Actuation area)
	1500 V AC (Main to auxiliary circuit)
	1000 V AC (Auxiliary circuit 11 - 12 to 23 - 24)
Switching cycles, max.	10000 (At 1 x I_n, inductive)
Fuse	M1 (normal blow)
Contact switching type	1 N/O contact
	1 N/C contact

Connection method	pluggable
Connection method	pluggable

Width	12.5 mm
Height	50 mm
Depth	78.5 mm
Complete module width	38 mm
Complete module height	115 mm
Complete module depth	121 mm

Color	black (RAL 9005)
Flammability rating according to UL 94	V-2
Insulating material group	II
Insulating material	PA66

Mechanical data
Open side panel	No

Ambient conditions
Degree of protection	IP30 (Actuation area)
	IP00 (Connection area)
Ambient temperature (operation)	-30 °C ... 60 °C
Humidity test	240 h, 95 % RH, 40 °C

Standards/specifications	EN 60934
Standards/specifications	UL 1077

Mounting type	on base element

Commercial data

Item number	0915810
Packing unit	6 pc
Minimum order quantity	6 pc
Sales key	CLA123
Product key	CLA123
Catalog page	Page 281 (CL-2002)
GTIN	4017918600655
Weight per piece (including packing)	44.108 g
Weight per piece (excluding packing)	45.416 g
Customs tariff number	85362010
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

Accessories

Your advantages

Individually adjustable with protective plugs

Switch higher starting currents with the aid of the M1 characteristic curve

High-level system transparency with integrated remote indication contact

Fast, replacement part-free recommissioning after an event with the reconnection options

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-25 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
SCIP	732538bd-5c93-4ec6-8ae7-457fcbf2b274

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TMCP 1 M1 300 6,0A - Thermal-magnetic device circuit breaker

0915810

Product details

ECLASS

ETIM

UNSPSC

CSA

UL Recognized

EAC

VDE approval of drawings

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

TMCP 1 M1 300 6,0A - Thermal-magnetic device circuit breaker 0915810

Product details

ECLASS

ETIM

UNSPSC

Compatible products

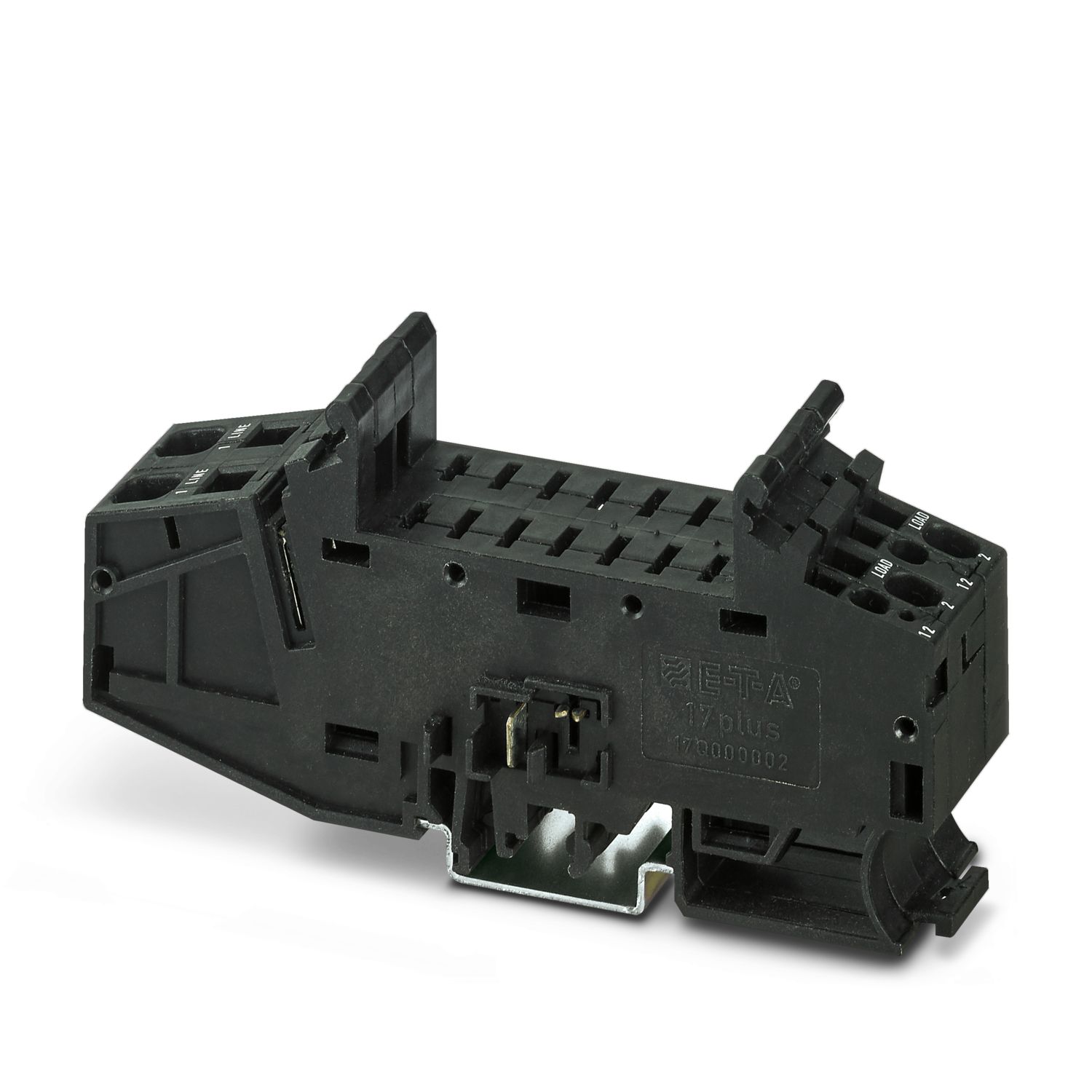

TMCP SOCKET M - Surface mounting housing 0916589

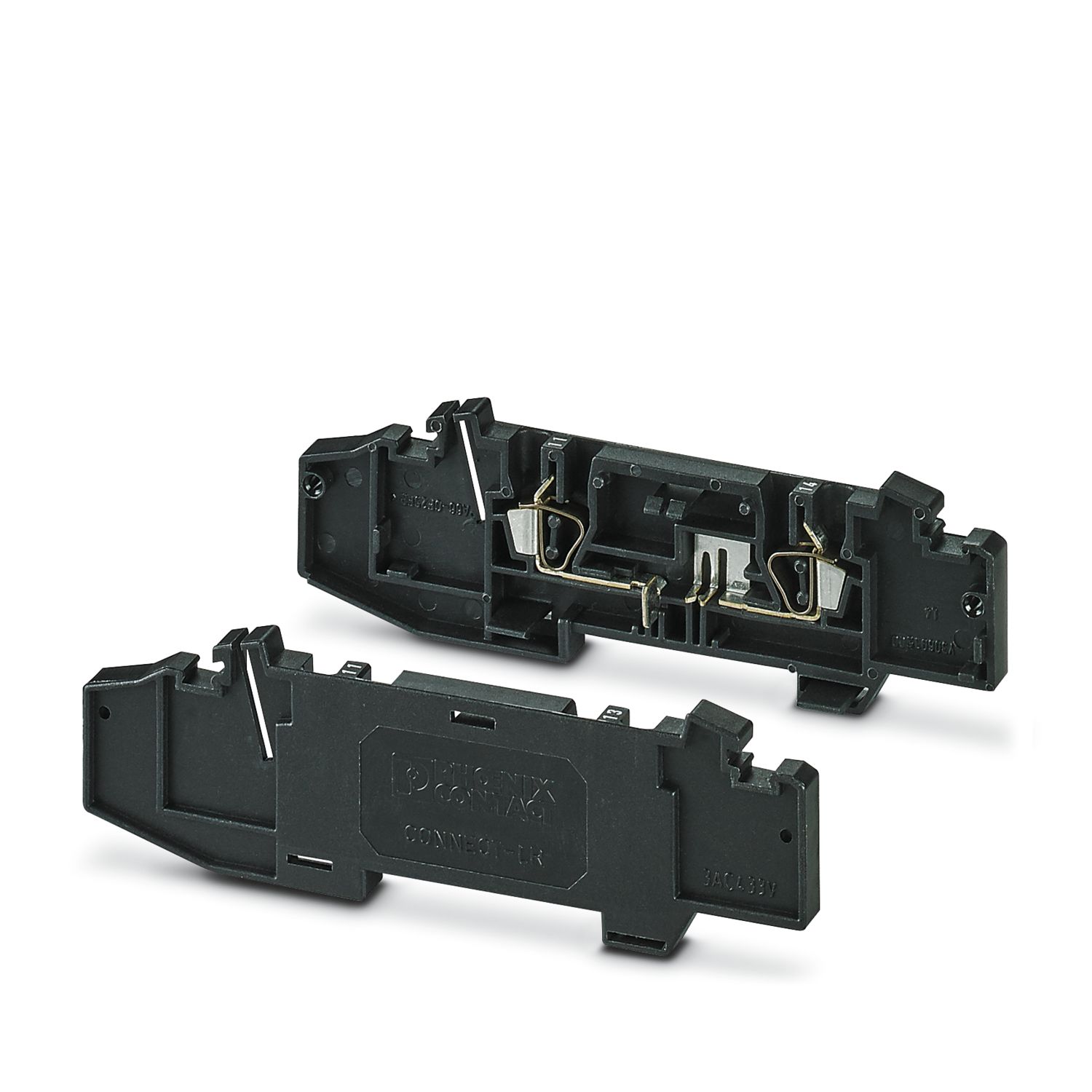

TMCP CONNECT LR - End cover 0916592
