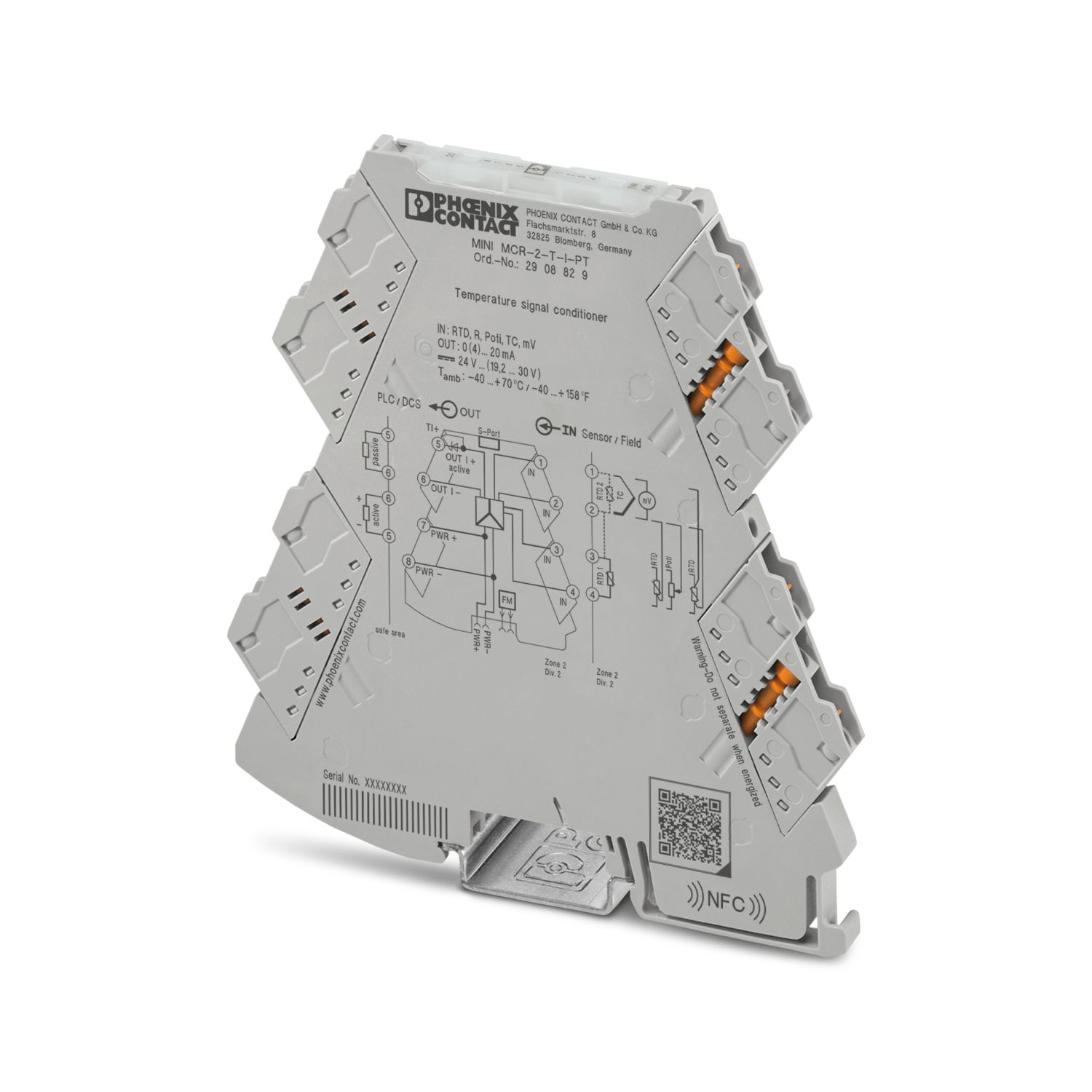

MINI MCR-2-T-I-PT - Temperature measuring transducer - 2908829

Product details

Technical data

Product properties

Product type	Temperature transmitter
Product family	MINI Analog Pro
Application	Temperature
Type	Ex i signal conditioners with SIL functional safety
Configuration	Software
	App

System properties

Functionality
Configuration	Software
	App

Electrical properties

Step response (0–99%)	≤ 250 ms
Maximum temperature coefficient	0.01 %
Maximum transmission error	0.1 %
Electrical isolation
Overvoltage category	II (≤ 5000 m)
Pollution degree	2 (≤ 5000 m)
Electrical isolation Input/output/power supply IEC/EN 61010-1
Standards/regulations	IEC/EN 61010-1
Rated insulation voltage	300 V_rms
Test voltage	2.5 kV AC (50 Hz, 60 s)
Insulation	Double/reinforced insulation
Electrical isolation Input/output/power supply IEC/EN 60079-7
Standards/regulations	IEC/EN 60079-7
Rated insulation voltage	251 V_rms
Supply
Nominal supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC
Power consumption	≤ 900 mW

Input data

Measurement
Sensor types (RTD) that can be used	Pt, Ni, Si, Cu sensors
Sensor types that can be used (TC)	J, K, B, E, N, R, S, T, C, A, L, U, A-1, A-2, A-3, L, M
Temperature measuring range	-200 °C ... 850 °C (Range depending on the sensor type)
Connection technology	2-, 3-, 4-conductor
Linear resistance measuring range	0 Ω ... 40 kΩ (Minimum measuring span: 10% of the selected measuring range)
Potentiometer resistance range	0 Ω ... 40 kΩ (Minimum measuring span: 10% of the selected measuring range)
Linear mV signal range	-1000 mV ... 1000 mV
Max. permissible overall conductor resistance	≤ 25 Ω (adjustable, 3-, 4-conductor, per cable)
	≤ 50 Ω (adjustable, 2-conductor)

Output data

Signal: Current
Number of outputs	1
Configurable/programmable	Yes
Current output signal	4 mA ... 20 mA (NE 43)
	0 mA ... 20 mA
	20 mA ... 0 mA
	0 mA ... 21 mA (freely adjustable)
	21 mA ... 0 mA (freely adjustable)
Load/output load current output	≤ 600 Ω

Connection data

Connection method	Push-in connection
Stripping length	10 mm
Conductor cross section rigid	0.2 mm² ... 1.5 mm² (with ferrule)
	0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12 (flexible)

Ex data

Ex installation (EPL)	Gc
	Div. 2

Interfaces

Connection method	S-PORT

Signaling

Status display	Green LED (supply voltage)
	Red LED (error messages)

Dimensions

Width	6.2 mm
Height	109.81 mm
Depth	119.2 mm

Material specifications

Color	gray (RAL 7042)
Housing material	PBT

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 70 °C (Any mounting position)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (at 25 °C, non-condensing)
Altitude range (IEC/EN 61010-1)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	300 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	300 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	150 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 60079-7)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	162 V_rms (Input/output/power supply)
Altitude range (IEC/EN 60079-7)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	60 V_rms (Input/output/power supply)
Altitude range (IEC/EN 60079-7)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	60 V_rms (Input/output/power supply)

Approvals

CE
Certificate	CE-compliant
ATEX
Identification	 II 3 G Ex ec ic IIC T4 Gc
Certificate	IBExU 21 ATEX B007 X
IECEx
Identification	Ex ec ic IIC T4 Gc
Certificate	IECEx IBE 21.0017 X
CCC / China-Ex
Identification	Ex ec IIC T4 Gc
Certificate	2023122310116238
UL, USA/Canada
Identification	UL 61010-2-201 Listed
Shipbuilding approval
Certificate	DNV TAA00003FZ
INMETRO
Identification	Ex ec IIC T4 Gc
Certificate	DNV 23.0187 X
Shipbuilding data
Temperature	B
Humidity	B
Vibration	A
EMC	A
Enclosure	Required protection according to the Rules shall be provided upon installation on board

EMC data

Electromagnetic compatibility	Tested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21
Noise immunity	EN 61000-6-2
Noise emission
Standards/regulations	EN 61000-6-4

Standards and regulations

GB Standard
Standards/regulations	GB/T 3836.1
	GB/T 3836.3
	GB/T 3836.4

Mounting

Mounting type	DIN rail mounting
Mounting position	any

Commercial data

Item number	2908829
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DK1125
Product key	DK1125
GTIN	4055626364766
Weight per piece (including packing)	118.8 g
Weight per piece (excluding packing)	118.8 g
Customs tariff number	85437090
Country of origin	DE

Classifications

Approvals

Environmental product compliance

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
		2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS: 79-94-7)
