HC-B 24-SD-FQU/FS-AL
-
Protective cover
1644614
Protective cover B24, for double locking latch, protective cover material: Al, height: 16 mm, seal: no, with lanyard
Product details
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | B24 |
| Type | for supporting base element with double locking latch |
| Retaining cord present | yes |
| Seal present | no |

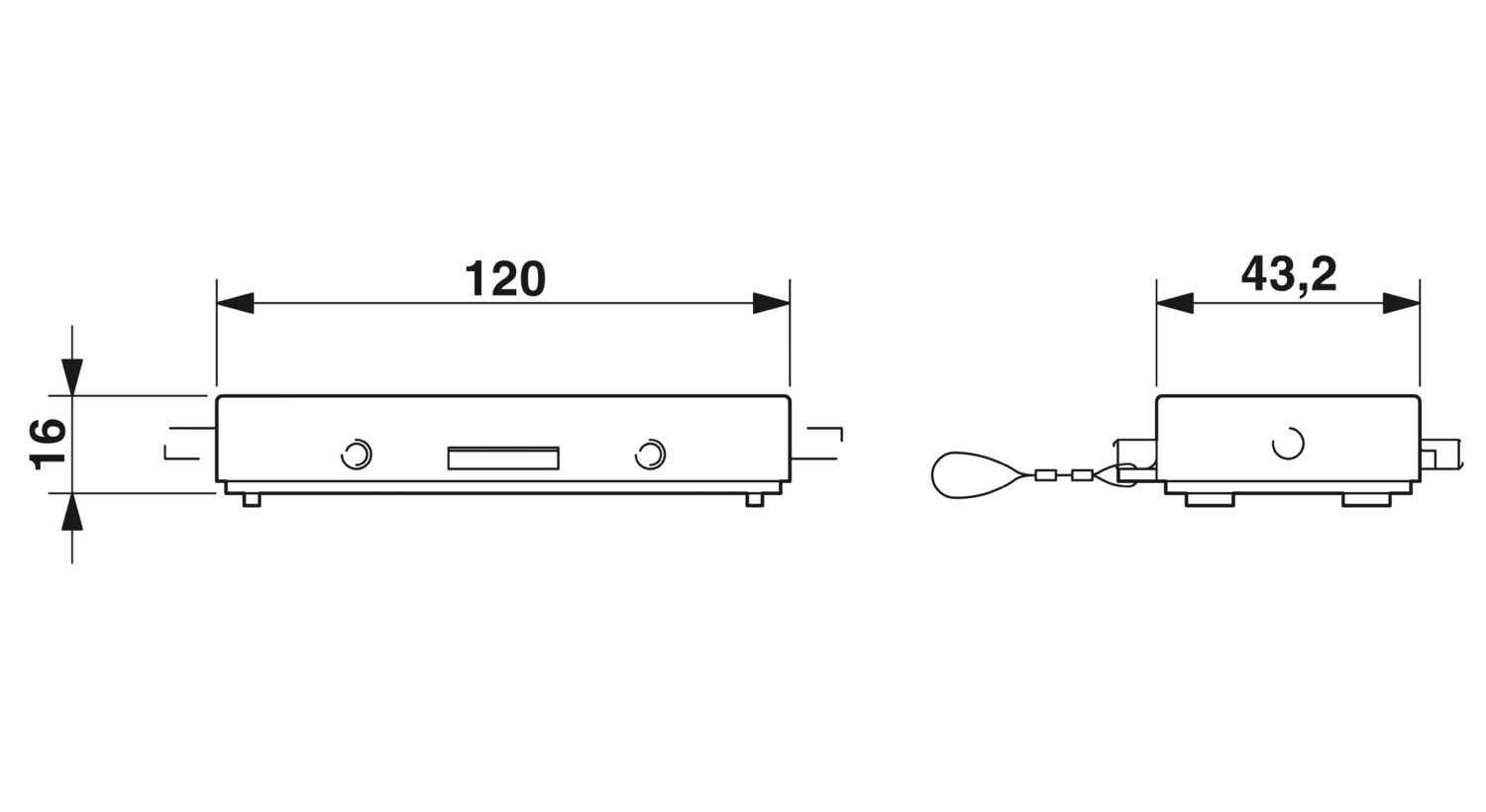

| Dimensional drawing |
|
| Width | 43.2 mm |
| Height | 16 mm |
| Length | 120 mm |
| Diameter | 30 mm |
| Material Protective cover | Die-cast aluminum (powder-coated) |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | Al |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | Not for HC-B...EMC housings |
| The guide pins of the protective cover must be removed when using coding sockets, pins, and bolts. |
