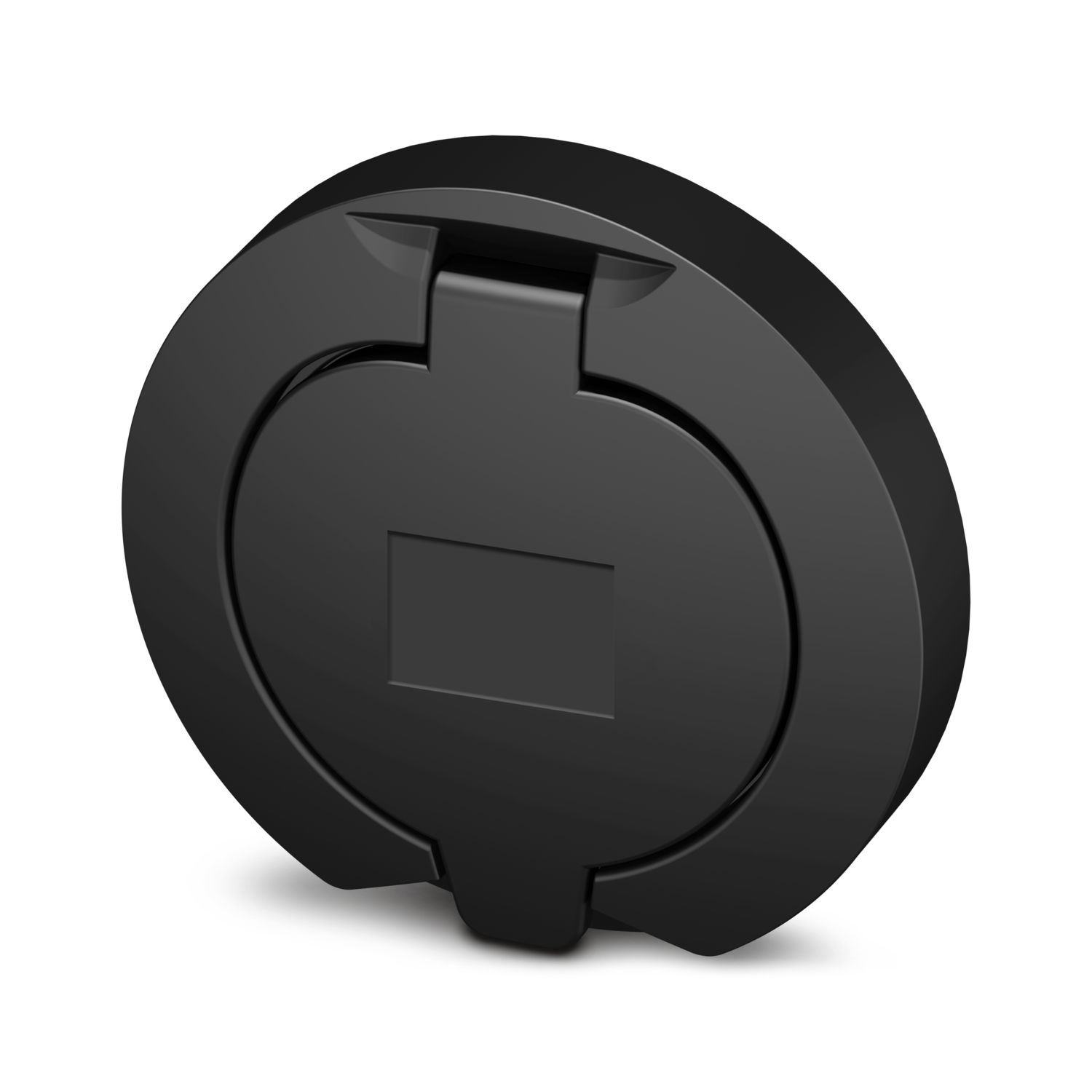

Self-closing protective cover for infrastructure charging socket
EV-T2SOCR-B-WL-STICK
-
Protective cover
1549871
CHARX connect modular, Type 2, Protective cover, Accessories, Basic, circular, Front mounting, M5 thread, with self-locking mechanism, with free label field, for attaching to infrastructure charging sockets, Free area for logo label, IEC 62196-2
Product details
| Product type | Protective cover for Socket Outlet |
| Product family | CHARX connect modular |
| Application | for attaching to infrastructure charging sockets |
| Design (Protective cover) | circular |
| Design | with self-locking mechanism |
| with free label field | |
| Compatibility | compatible with shutter, see accessories |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Affixed logo | Free area for logo label |
| Customer variations | On request |
| Label | 29.5 mm x 9.5 mm (free label field) |
| Protective cover | |
| Dimensional drawing |
|
| Depth | 22.9 mm |
| Bore dimensions | |
| Dimensional drawing |
|
| Width | 60 mm |
| Height | 60 mm |
| Color (Protective cover) | black (9005) |
| Material (Protective cover) | Plastic |
| Type of cover movement | Self-locking |
| Ambient conditions | |
| Degree of protection (Protective cover) | IP54 |
| IK08 | |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Mounting type Protective cover | Front mounting (rear screw connection) |
| Fixing screws | M5 thread |
