The AXL P FBPS 28DC/0.5A is a redundant, 500 mA PROFIBUS PA power supply plug with integrated PROFIBUS PA diagnostics and load sharing capabilities.

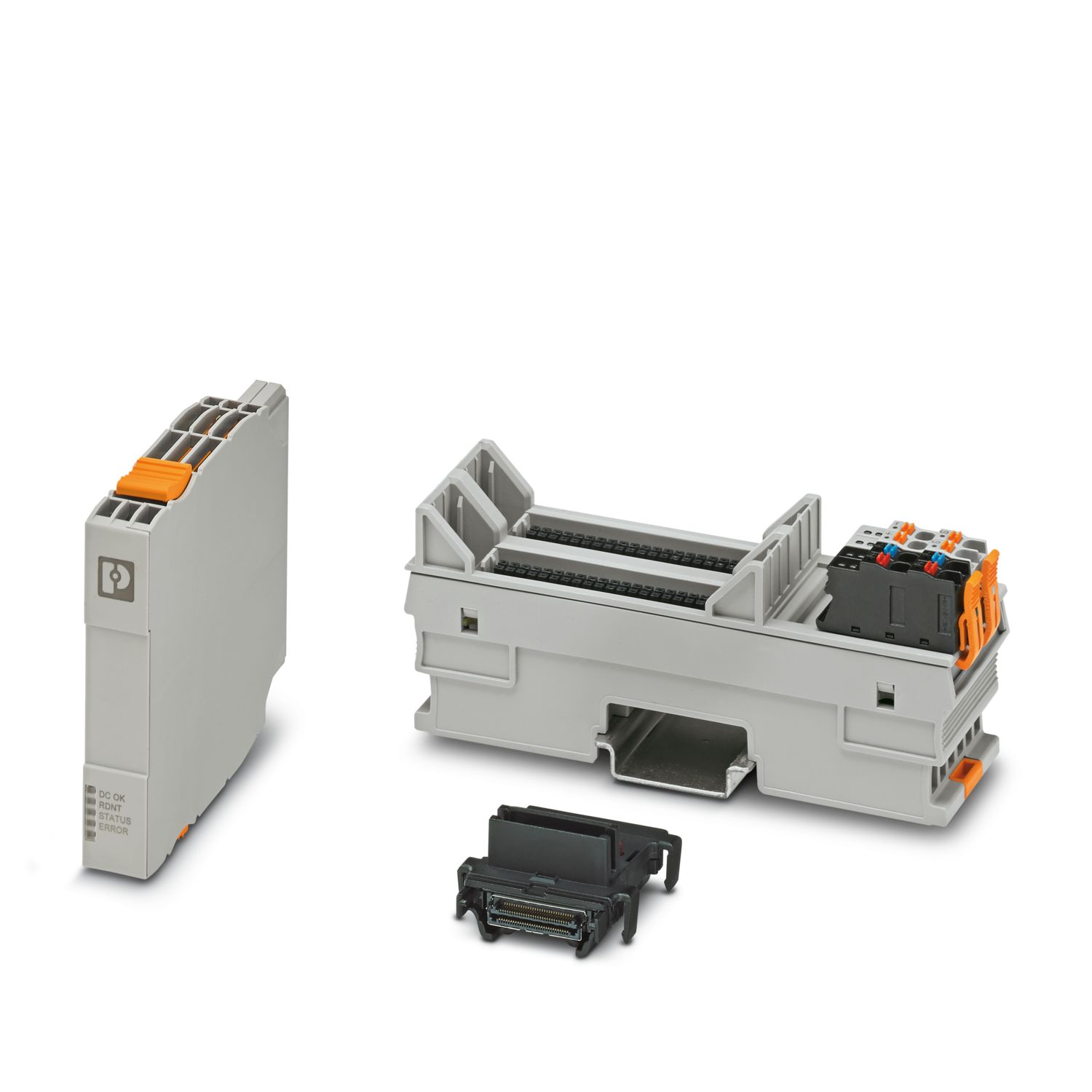

AXL P FBPS 28DC/0.5A
-
Feed-in module
2316394

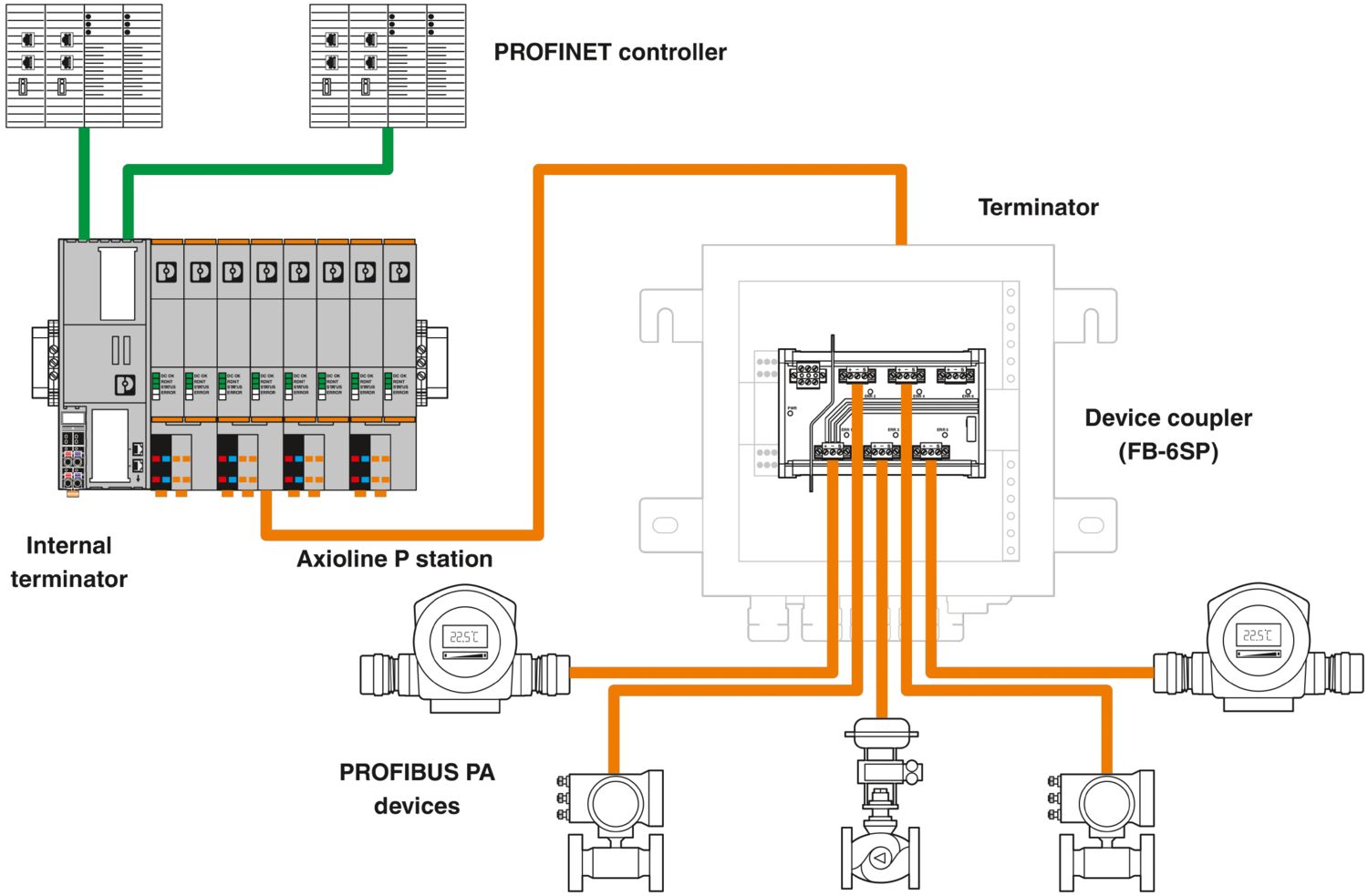

Axioline P redundant power supply plug for the PROFIBUS PA power supply base. Provides 500 mA @ 28 V DC to Fieldbus couplers along the trunk.
Product details

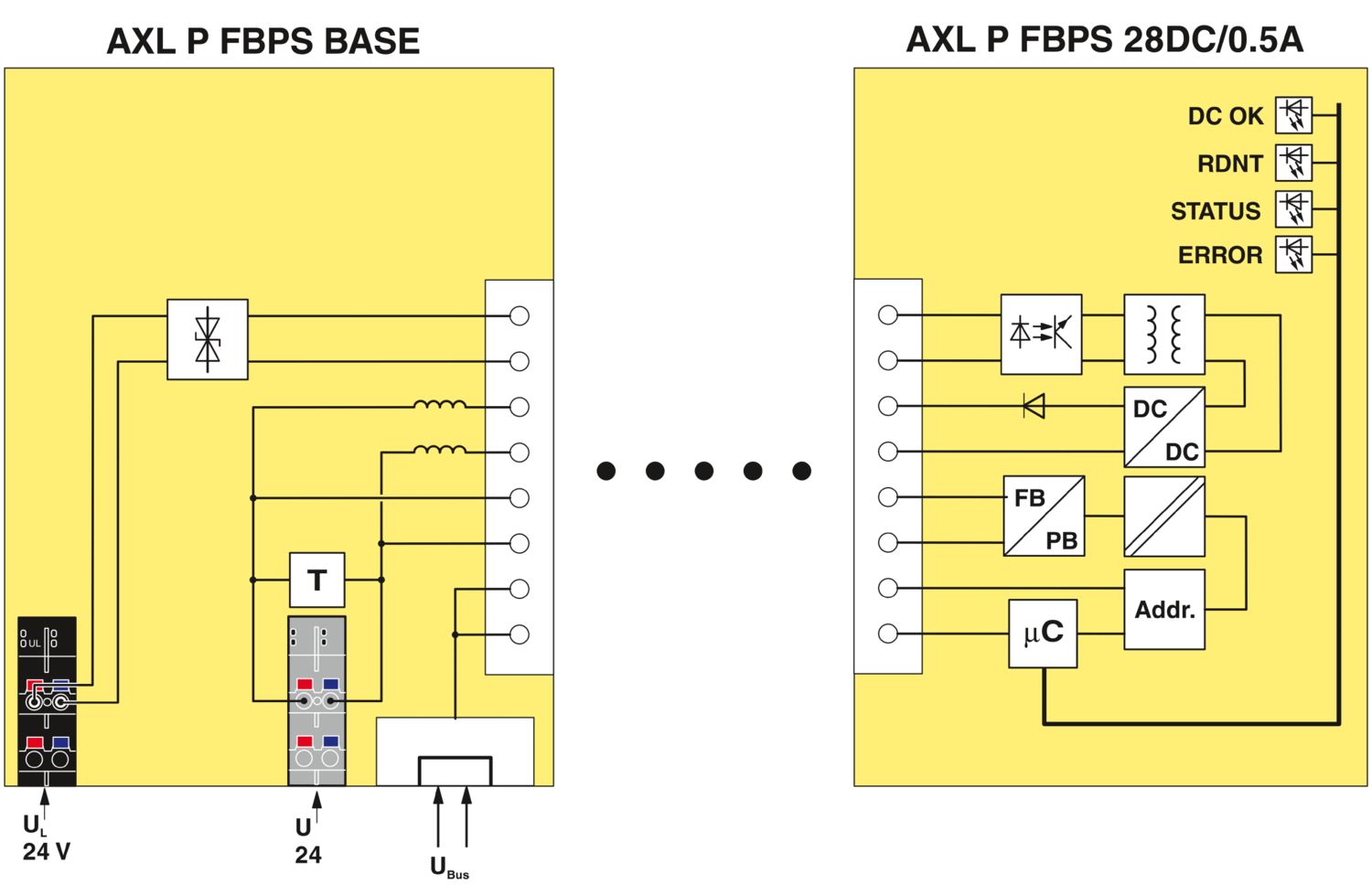

| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Utilization restriction | |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Input voltage | 24 V DC |
| Nominal input voltage range | 18.5 V DC ... 30.5 V DC |
| Input voltage range DC | 18.5 V DC ... 30.5 V DC |
| Short-term input voltage | 24 V DC |
| Current consumption | max. 1.35 A |
| Output voltage range | 28 V DC ... 30 V DC (on the trunk) |
| Power dissipation | 2.5 W (typical) |
| Connection in parallel | yes, for redundancy |
| Connection in series | no |
| Maximum power dissipation for nominal condition | 6 W |
| Product type | Power supply |
| Product family | Axioline P |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 2 |

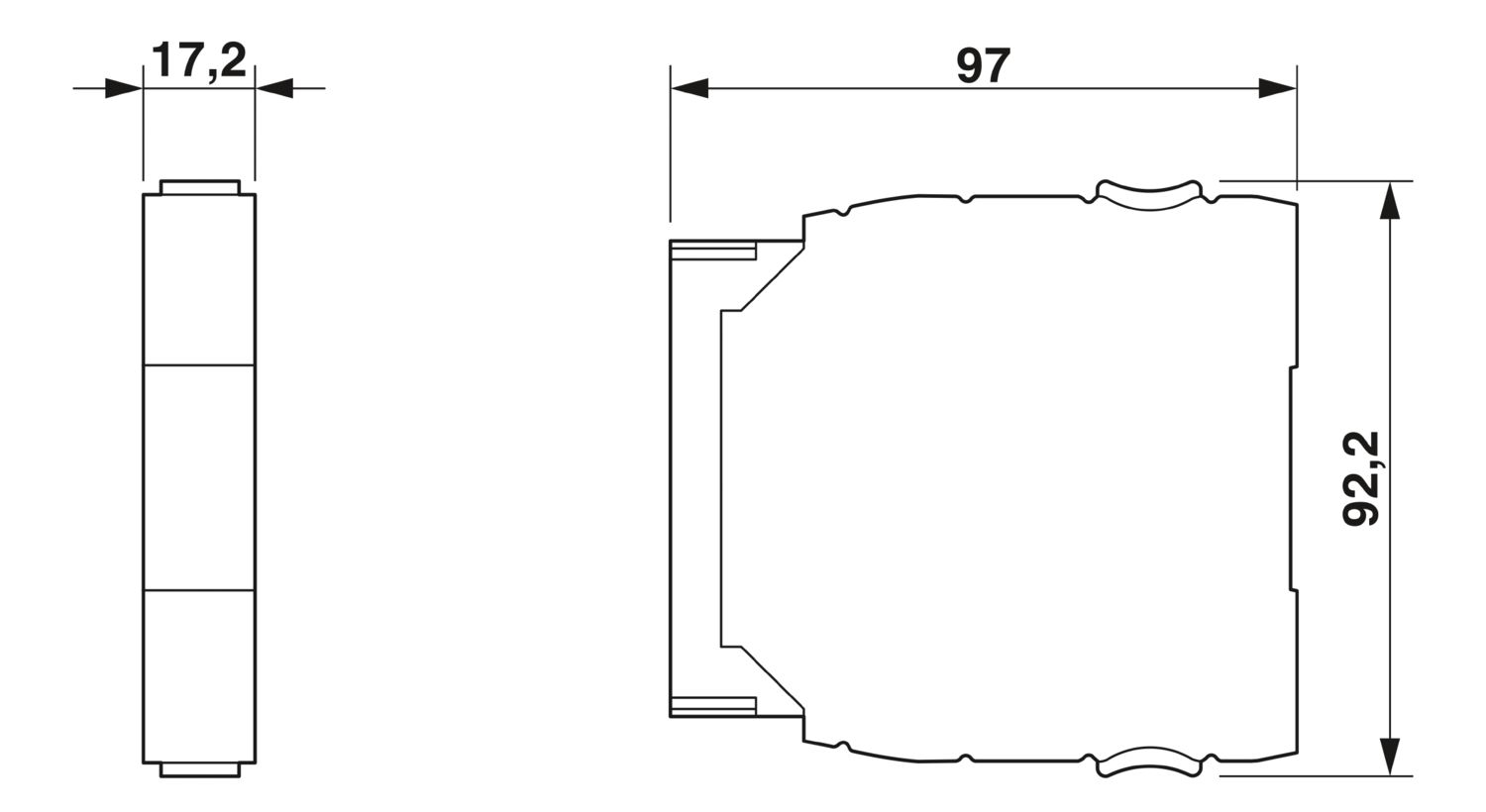

| Dimensional drawing |
|
| Width | 17 mm |
| Height | 92 mm |
| Depth | 97 mm |
| Assembly note | Plug-in connections may only be operated only when there is no load/voltage. |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Maximum altitude | 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock | 15g |
| Vibration (operation) | 2g |
| Standards/specifications | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standard designation | PROFIBUS standardization |
| Standards/specifications | IEC 61158-2 |
| ATEX | |
| Identification | II 3 G Ex ec IIC T4 Gc |
| Certificate | IBExU 18ATEXB018 X |
| IECEx | |
| Identification | Ex ec IIC T4 Gc |
| Certificate | IECEx IBE 18.0023X |
| UKCA Ex (UKEX) | |
| Identification | II 3G Ex ec IIC T4 Gc X |
| Ex data | |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4 |
