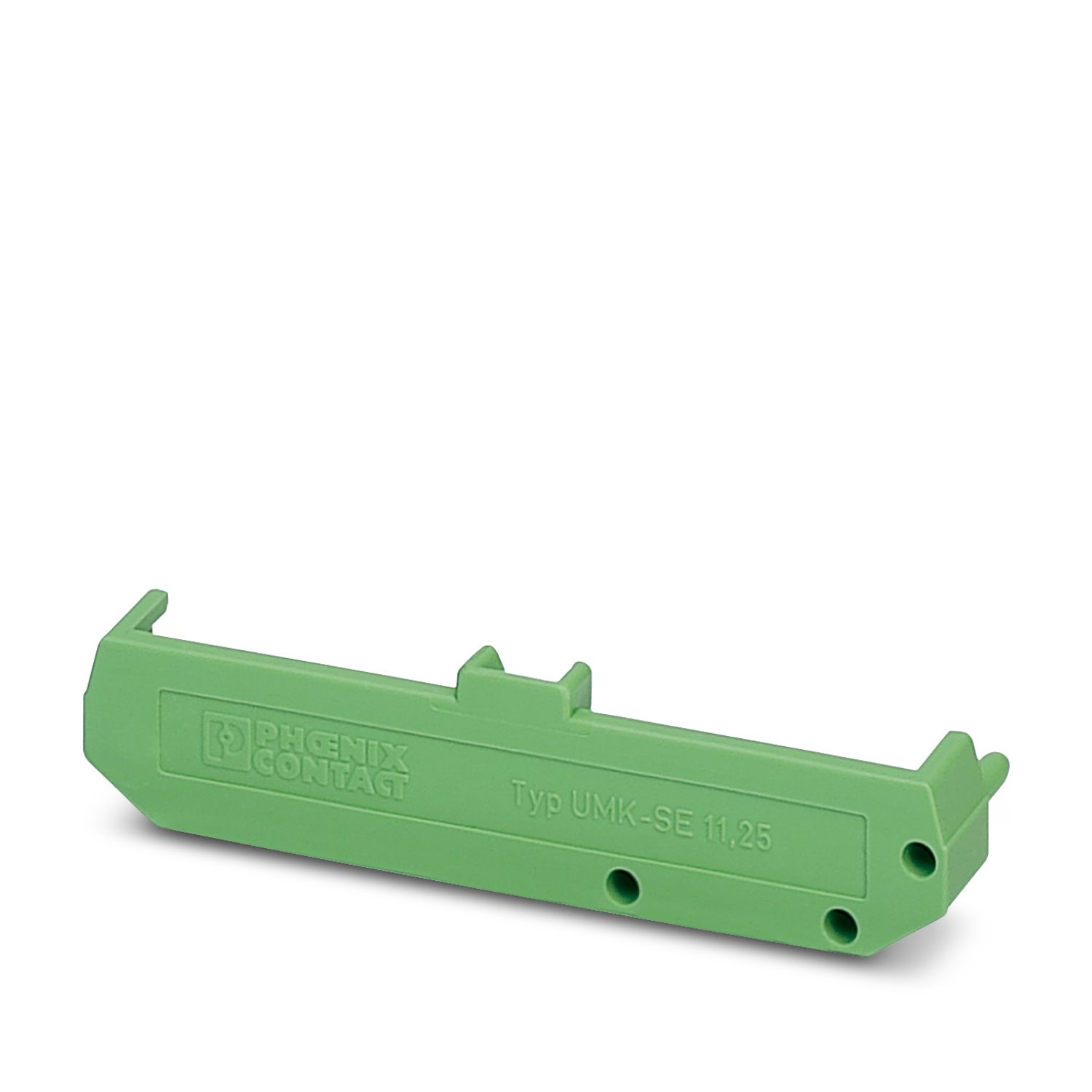

UMK-SE 11,25
-
Lateral element
2970002
Universal module, comprising: Side element, 11.25 mm wide, with marker groove
Product details
| Product type | Panel mounting base side part |
| Housing type | Press-drawn section housings |
| Housing series | UMK |
| Product family | UMK SE |
| Type | Lateral element |
| Ventilation openings present | no |
| Dimensional drawing |
|
| Depth | 15.5 mm |
| Length | 11.25 mm |
| External dimensions | |
| Profile width (external) | 77 mm |
| Internal dimensions | |
| Profile width (internal) | 72.2 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Housing material | PA |
| Surface characteristics | untreated |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
