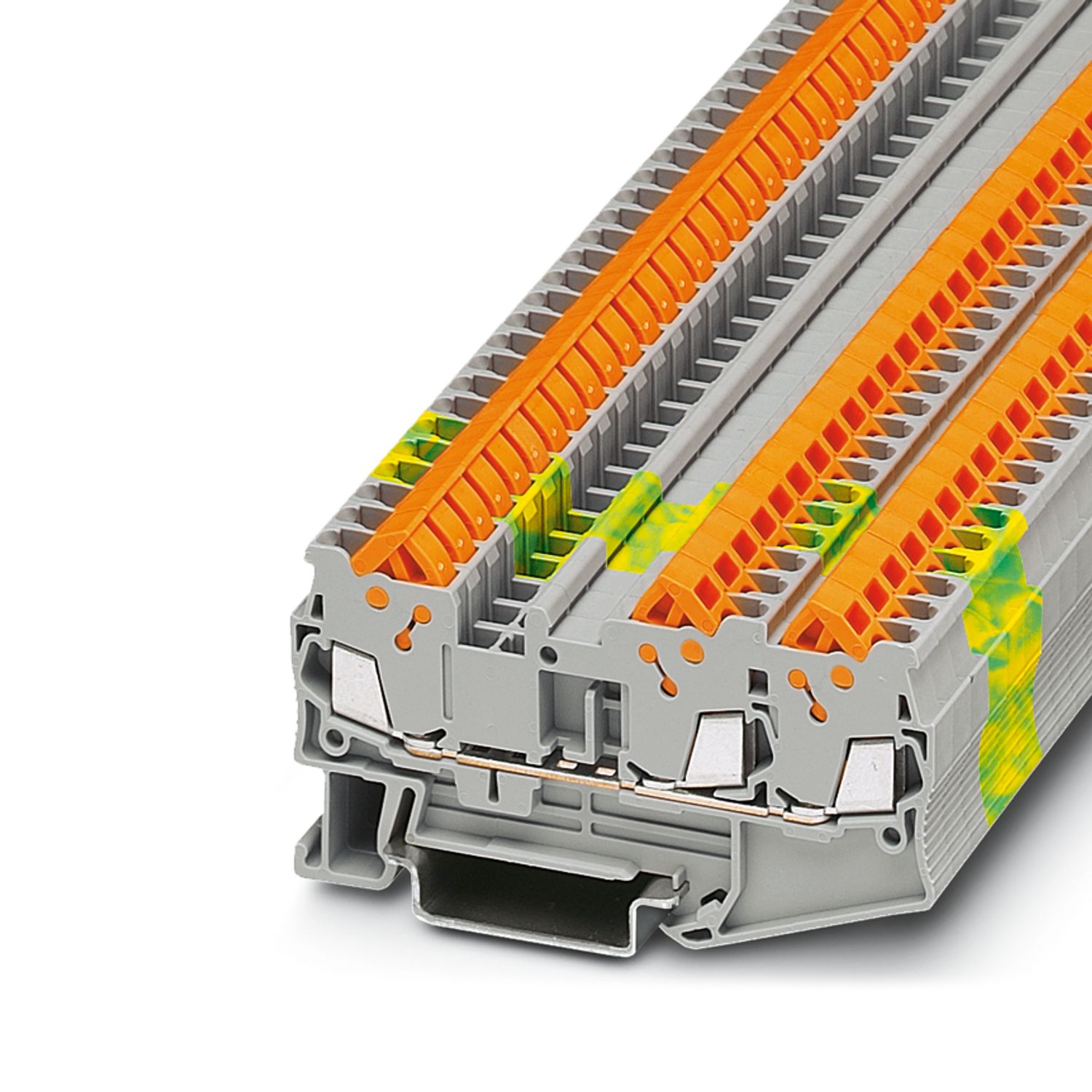

QTC 1,5-TWIN - Feed-through terminal block

3205048

Feed-through terminal block, nom. voltage: 800 V, nominal current: 17.5 A, number of connections: 3, connection method: Quick connection, Rated cross section: 1.5 mm², 1 level, cross section: 0.25 mm² - 1.5 mm², mounting type: NS 35/7,5, NS 35/7,5, color: gray

Product details

Product type	Multi-conductor terminal block
Product family	QTC
Area of application	Railway industry
	Machine building
	Plant engineering
	Process industry
Number of connections	3
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	0.56 W

Number of connections per level	3
Frequency of connections with the same cross section	100
Nominal cross section	1.5 mm²
1 level
Material wire insulation	PVC / PE
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.25 mm² ... 1.5 mm²
Cross section AWG	24 ... 16 (converted acc. to IEC)
Conductor cross section flexible	0.25 mm² ... 1.5 mm²
Conductor cross section, flexible [AWG]	24 ... 16 (converted acc. to IEC)
Cross section, sensor conductors	0.25 mm² ... 0.34 mm²
Nominal current	17.5 A (with 1.5 mm² conductor cross section)
Maximum load current	17.5 A (in case of a 1.5 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.)
Nominal voltage	800 V
Nominal cross section	1.5 mm²

Rated data (ATEX/IECEx)
Identification	 II 2 GD Ex eb IIC Gb
Operating temperature range	-45 °C ... 90 °C
Ex-certified accessories	3205190 D-QTC 1,5-TWIN
	3206212 ATP-QTC TWIN
	1204517 SZF 1-0,6X3,5
	3022276 CLIPFIX 35-5
	3022218 CLIPFIX 35
List of bridges	Plug-in bridge / FBS 2-5 / 3030161
	Plug-in bridge / FBS 3-5 / 3030174
	Plug-in bridge / FBS 4-5 / 3030187
	Plug-in bridge / FBS 5-5 / 3030190
	Plug-in bridge / FBS 10-5 / 3030213
	Plug-in bridge / FBS 20-5 / 3030226
Bridge data	16.5 A (1.5 mm²)
Ex temperature increase	40 K (20.4 A / 1.5 mm²)
for bridging with bridge	550 V
- At bridging between non-adjacent terminal blocks	352 V
- At cut-to-length bridging with cover	220 V
- At cut-to-length bridging with partition plate	275 V
Rated insulation voltage	500 V
output	(Permanent)
Ex level General
Rated voltage	550 V
Rated current	18.5 A
Maximum load current	18.5 A
Contact resistance	1.1 mΩ
Ex connection data General
Nominal cross section	1.5 mm²
Rated cross section AWG	16
Connection capacity rigid	0.25 mm² ... 1.5 mm²
Connection capacity AWG	24 ... 16
Connection capacity flexible	0.25 mm² ... 1.5 mm²
Connection capacity AWG	24 ... 16
Frequency of connections with the same cross section	100

Width	5.2 mm
End cover width	2.2 mm
Height	76.4 mm
Depth on NS 35/7,5	39.3 mm
Depth on NS 35/15	46.8 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Wire diameter incl. insulation	3 mm

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 1.5 mm²	0.18 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 35
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.2 mm² / 0.2 kg
	1.5 mm² / 0.4 kg
Result	Test passed

Aging
Temperature cycles	192
Result	Test passed
Needle-flame test
Time of exposure	30 s
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/7,5

Commercial data

Item number	3205048
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE3112
Product key	BE3112
Catalog page	Page 257 (C-1-2019)
GTIN	4017918932442
Weight per piece (including packing)	11.392 g
Weight per piece (excluding packing)	11.392 g
Customs tariff number	85369010
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	10 A	24 - 16
Use group C
	600 V	10 A	24 - 16

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	10 A	24 - 16
Use group C
	600 V	10 A	24 - 16

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	550 V	18.5 A		0.25 - 1.5

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Type examination certificate	550 V	18.5 A		0.25 - 1.5

Environmental product compliance

Compatible products

Accessories

Your advantages

Compact design

Tested for railway applications

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

QTC 1,5-TWIN - Feed-through terminal block

3205048

Product details

ECLASS

ETIM

UNSPSC

CSA

EAC

cULus Recognized

NK

ABS

DNV

EAC Ex

IECEx

ATEX

CCC

UKCA-EX

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

QTC 1,5-TWIN - Feed-through terminal block 3205048

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FBS 2-5 - Plug-in bridge 3030161

FBS 3-5 - Plug-in bridge 3030174

FBS 4-5 - Plug-in bridge 3030187

FBS 5-5 - Plug-in bridge 3030190

FBS 10-5 - Plug-in bridge 3030213

FBS 20-5 - Plug-in bridge 3030226

FBSR 2-5 - Plug-in bridge 3033702

FBSR 3-5 - Plug-in bridge 3001591

FBSR 4-5 - Plug-in bridge 3001592

FBSR 5-5 - Plug-in bridge 3001593

FBSR 10-5 - Plug-in bridge 3033710

FBS 2-5 BU - Plug-in bridge 3036877

FBS 3-5 BU - Plug-in bridge 3036880

FBS 4-5 BU - Plug-in bridge 3036893

FBS 5-5 BU - Plug-in bridge 3036903

FBS 10-5 BU - Plug-in bridge 3036916

FBS 20-5 BU - Plug-in bridge 3036929

FBS 50-5 BU - Plug-in bridge 3032114

RB ST (2,5/4)-1,5/S - Reducing bridge 3214356

RB ST 6-(2,5/4) - Reducing bridge 3030860

RB ST 10-(2,5/4) - Reducing bridge 3030873

RB ST 16-(2,5/4) - Reducing bridge 3030886

RB ST 35-(2,5/4) - Reducing bridge 3030899

RB ST (2,5/4)-1,5 - Reducing bridge 3038943

RB UT 6-ST(2,5/4) - Reducing bridge 3047264

RB UT 35-ST(2,5/4) - Reducing bridge 3047280

RB UT 10-ST(2,5/4) - Reducing bridge 3047086

RB UT 16-ST(2,5/4) - Reducing bridge 3047099

RB PTPOWER 35-ST(2,5/4) - Reducing bridge 3030900

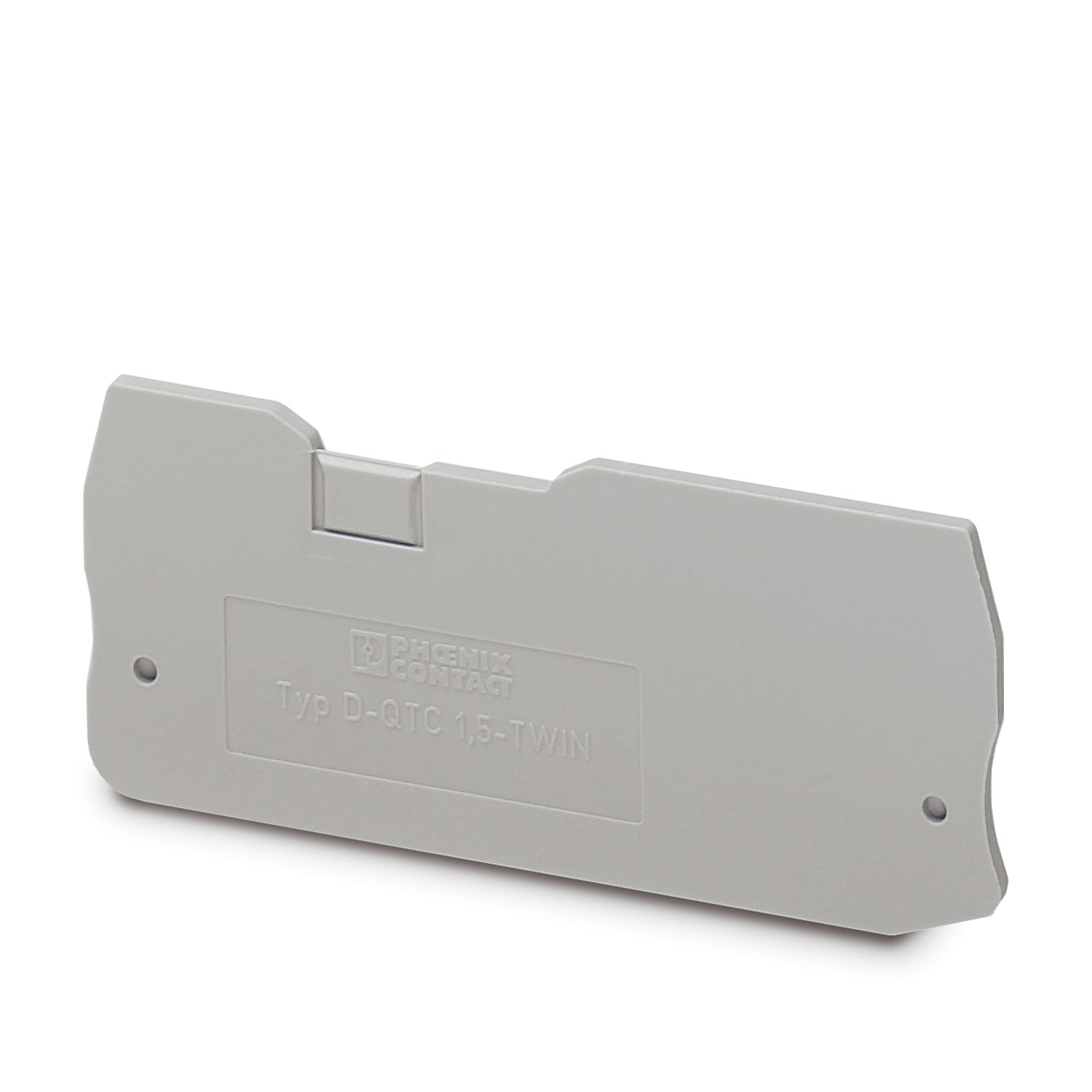

D-QTC 1,5-TWIN - End cover 3205190
