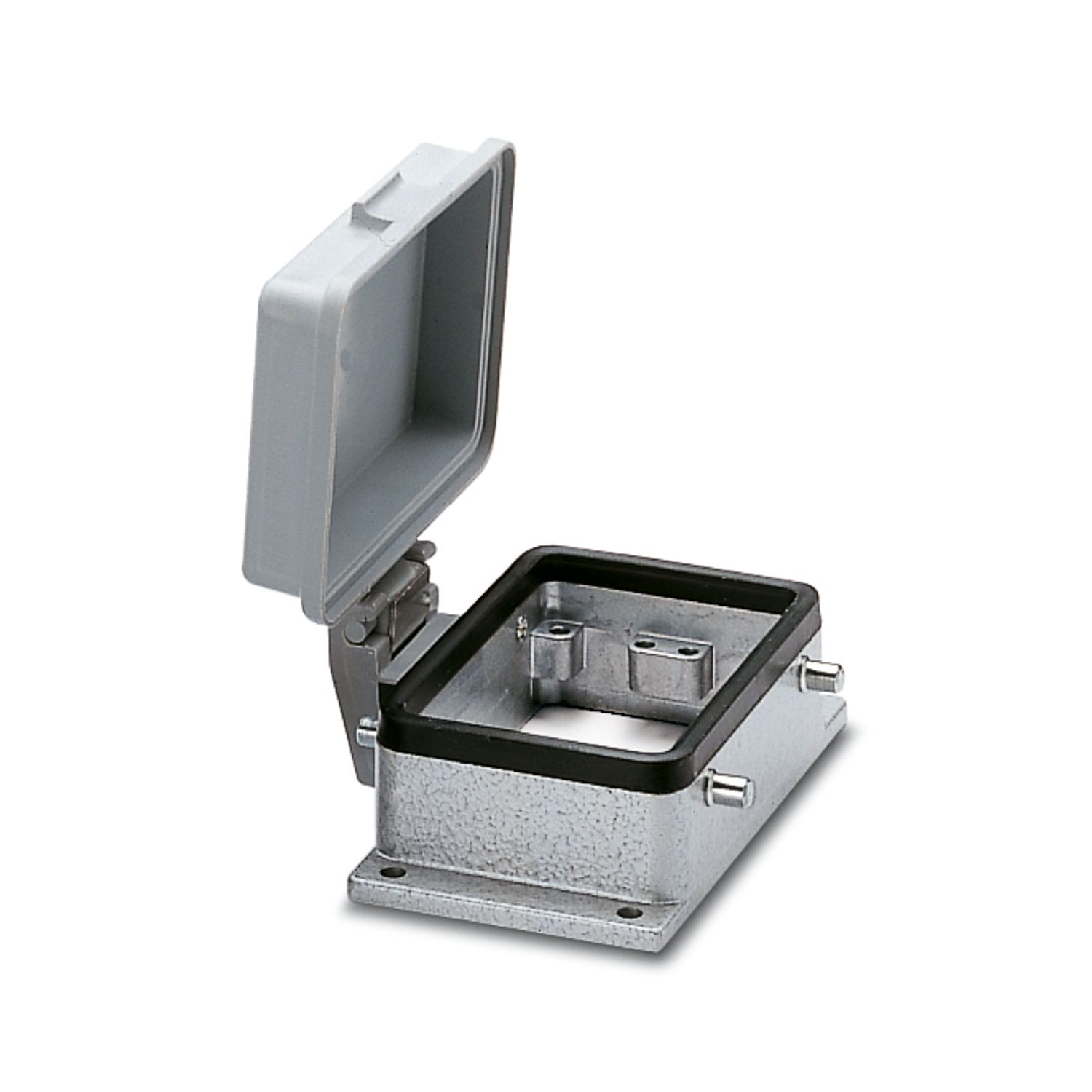

HC-D 50-AFQD
-
Housing
1775871
HEAVYCON panel mounting base B50, for double locking latch, height 28 mm, with cover
Product details
| General | For contact inserts HC-D25, A16/A32 |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | D50 |
| Protective cover | yes |
| Shielded | no |
| Pg screw connection | none |

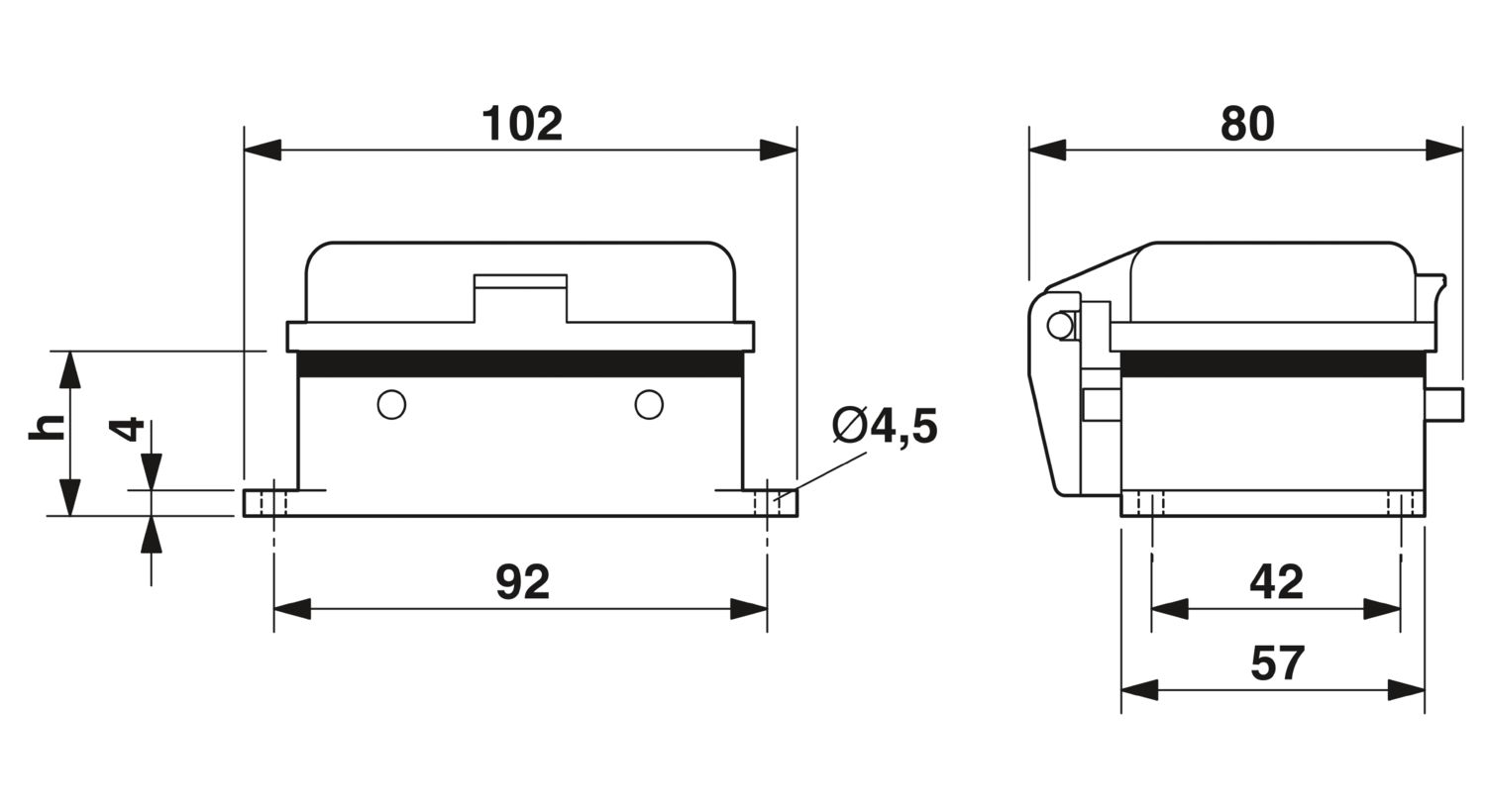

| Dimensional drawing |
|
| Width | 57 mm |
| Height | 28 mm |
| Length | 102 mm |
| Installation dimensions | |
| Width of the assembly cutout | 48 mm |
| Length of the assembly cutout | 76 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | PA |
| Locking latch material | Steel, galvanized |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP65 (When plugged in) |
| Ambient temperature (operation) | -40 °C ... 125 °C |
