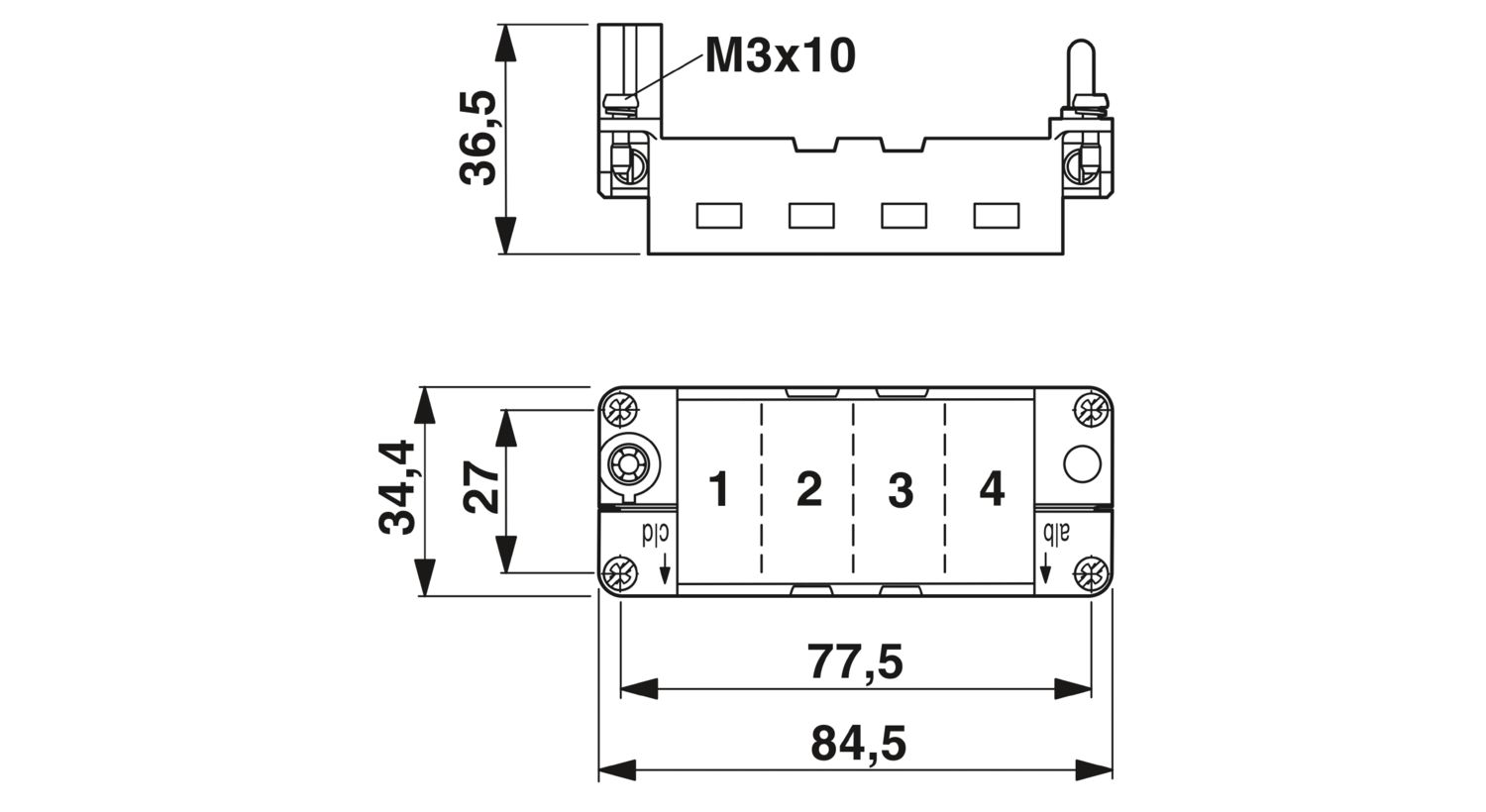

HEAVYCON hinged retaining frame, for HC-B 16 supporting base element, for 4 modules, labeling with lower case letters (a, b, c, etc.)
Product details
General
Hinged retaining frame
Product type
Module carrier frame
Series
HC-M-B
HC-M-02
HC-M-03
HC-M-03/04
HC-M-04
HC-M-05
HC-M-06
HC-M-08
HC-M-08-GBIT
HC-M-12
HC-M-17
HC-M-20
HC-M-25
HC-M-DSUB
HC-M-EMV
HC-M-HV
HC-M-HS
Application
Module carrier frame
Type
B16
B32
Number of module slots
4
Conductor connection
Conductor cross section
4 mm² ... 6 mm² (for PE conductor - power side)
1 mm² ... 2.5 mm² (for PE conductor control side)
Connection cross section AWG
12 ... 10 (for PE conductor - power side)
18 ... 14 (for PE conductor control side)
Contact carrier material
Die-cast zinc alloy
Mechanical data
Insertion/withdrawal cycles
≥ 500
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C
Assembly note
HC-MHR-PE16 ( 1636981) for PE connection extension to 16 mm².
Use wire end protection for PE wires (PE connection screws without wire protection) for housings without lateral connectors, max. thread length of the screw connection 12 mm
