IPD H 3P2,5 BK
-
H distributor
1499528
H distributor, product family: IPD, number of positions: 2+PE, 500 V, 20 A, black, coding: P
This product needs further products for operation.
Mandatory accessories
Product details
| Order information: | Mounting material is not supplied as standard. |
| Product type | Power distributor |
| Product family | IPD |
| Type | H-distributor |
| Number of positions | 3 |
| Connection profile | 2+PE |
| Position marking | L, N, PE |
| Coding | P |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

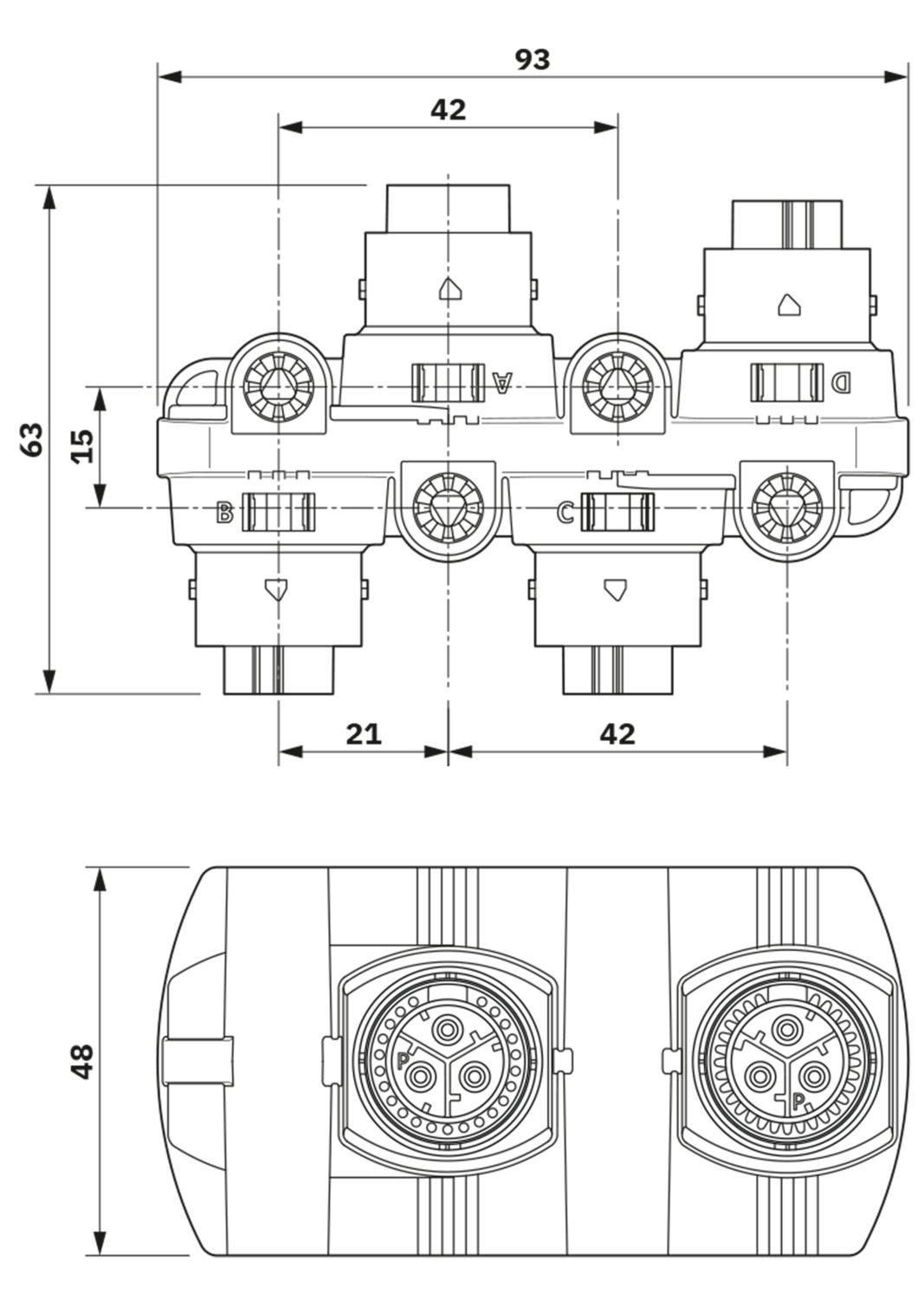

| Dimensional drawing |
|
| Width | 93 mm |
| Height | 48 mm |
| Length | 63 mm |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 20 A |
| Rated voltage (III/3) | 500 V |
| Nominal voltage UN | 500 V AC |
| 500 V DC | |
| Nominal current IN | 20 A |
| Mechanical data | |
| Insertion/withdrawal cycles | 50 (IP66/IP68/IP69K) |
| 100 (IP66) | |
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| Position marking | L, N, PE |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 24 h) | |
| IP69K | |
| Touch-proof when not plugged in (IP2X) | |
| Impact strength | IK07 |
| Ambient temperature (operation) | -30 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Resistance to UV radiation | yes |
Your advantages
Easy distribution of power, as components are plugged directly
Simple, time-saving wiring in the field with Push-Lock connection
Reliable installation in harsh environments with IP66, IP68, and IP69K throughout the entire system
Secure, tool-free locking even in particularly difficult installation situations
Fast commissioning with preassembled cable assemblies
