PT 4-PE/L/HESILED 24 (5X20) - Fuse modular terminal block

3002603

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20, nom. voltage: 24 V, nominal current: 6.3 A, connection method: Push-in connection, Rated cross section: 4 mm², cross section: 0.2 mm²- 6 mm², connection method: Push-in connection, cross section: 0.2 mm²- 6 mm², mounting type: NS 35/7,5, NS 35/15, color: black

Product details

General	The current is determined by the fuse used, the voltage by the selected LED. If the fuse is faulty, the downstream circuit will not be disconnected.
General
Note	The current is determined by the fuse used, the voltage by the fuse or selected light indicator.

Product type	Fuse terminal block
Number of connections	5
Number of rows	3
Potentials	3
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Fuse type	Glass / ceramics / ...
Rated surge voltage	6 kV
Maximum power dissipation for nominal condition	1.02 W
Fuse	G / 5 x 20
LED voltage range	12 V AC/DC ... 30 V AC/DC
LED current range	0.31 mA ... 0.95 mA
Maximum power dissipation	max. 1.6 W (with single arrangement of the fuse terminal block in the event of overload)
	max. 1.6 W (With interconnected arrangement of several fuse terminal blocks in the event of overload)
	max. 4 W (with single arrangement of the fuse terminal block in the event of a short-circuit)
	max. 2.5 W (With interconnected arrangement of several fuse terminal blocks in the event of a short-circuit)

LED voltage range	12 V AC/DC ... 30 V AC/DC

Number of connections per level	2
Nominal cross section	4 mm²
Level 1+2
Stripping length	10 mm ... 12 mm
Internal cylindrical gage	A4
Connection in acc. with standard	IEC 60947-7-1/IEC 60947-7-2
Conductor cross section rigid	0.2 mm² ... 6 mm²
Cross section AWG	24 ... 10 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 4 mm²
Nominal current	6.3 A
Maximum load current	6.3 A (with 6 mm² conductor cross section, rigid)
Nominal voltage	24 V
Nominal cross section	4 mm²
Level 3
Stripping length	10 mm ... 12 mm
Connection in acc. with standard	IEC 60947-7-3
Conductor cross section rigid	0.2 mm² ... 6 mm²
Cross section AWG	24 ... 10 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	24 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 4 mm²
Level 1+2 Connection cross sections directly pluggable
Conductor cross section rigid	0.5 mm² ... 6 mm²
Conductor cross section, rigid [AWG]	20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 4 mm²
Level 3 Connection cross sections directly pluggable
Conductor cross section rigid	0.5 mm² ... 6 mm²
Conductor cross section, rigid [AWG]	20 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 4 mm²

Rated data (ATEX/IECEx)
Identification	 II 3 G Ex ec llC Gc
Operating temperature range	-60 °C ... 130 °C
Ex-certified accessories	3002619 D-PT 4-PE/L/HESI
	1205066 SZS 1,0X4,0 VDE
	3022276 CLIPFIX 35-5
	3022218 CLIPFIX 35
List of bridges	Plug-in bridge / FBS 2-6 / 3030336
	Plug-in bridge / FBS 3-6 / 3030242
	Plug-in bridge / FBS 4-6 / 3030255
	Plug-in bridge / FBS 5-6 / 3030349
	Plug-in bridge / FBS 10-6 / 3030271
	Plug-in bridge / FBS 20-6 / 3030365
Bridge data	19 A / 4 mm²
for bridging with bridge	275 V
- At bridging between non-adjacent terminal blocks	275 V
- At cut-to-length bridging with cover	275 V
Rated insulation voltage	250 V
output	(Permanent)
Ex level General
Rated voltage	275 V
Ex connection data General
Nominal cross section	4 mm²
Rated cross section AWG	12
Connection capacity rigid	0.2 mm² ... 6 mm²
Connection capacity AWG	24 ... 10
Connection capacity flexible	0.2 mm² ... 4 mm²
Connection capacity AWG	24 ... 12
output	(Permanent)
Ex level Level 2
Rated current	29 A (4 mm²)
Maximum load current	32 A (6 mm²)
Contact resistance	0.9 mΩ
Temperature increase	40 K (29 A/4 mm²)
output	(Permanent)
Ex level Level 3
Rated current	6.3 A (4 mm²)
Maximum load current	6.3 A (6 mm²)
Contact resistance	5 mΩ

Width	6.2 mm
Height	119.5 mm
Depth	82.6 mm
Depth on NS 35/7,5	84.1 mm
Depth on NS 35/15	91.6 mm

Color	black (RAL 9005)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data
Open side panel	Yes

Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	0.964 (m/s²)²/Hz
Acceleration	0.58g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1/IEC 60947-7-2
	IEC 60947-7-3

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	3002603
Packing unit	50 pc
Minimum order quantity	50 pc
Sales key	BE2236
Product key	BE2236
Catalog page	Page 102 (C-1-2019)
GTIN	4055626369686
Weight per piece (including packing)	34 g
Weight per piece (excluding packing)	35 g
Customs tariff number	85369095
Country of origin	CN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
upper level	300 V	6.3 A	24 - 10
lower level	300 V	20 A	24 - 10
Use group C
upper level	300 V	6.3 A	24 - 10
lower level	300 V	20 A	24 - 10
Use group D
	600 V	5 A	24 - 10

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Feed-through	275 V	20 A	24 - 10	24 - 10
depending on the LED display	275 V	6.3 A	24 - 10	24 - 10

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
Feed-through	275 V	20 A	24 - 10
depending on the LED display	275 V	6.3 A	24 - 10

Environmental product compliance

Compatible products

Accessories

Your advantages

Convenient testing of fuses with test pick-offs on both sides

The compact design and front connection enable wiring in a confined space

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors

Quick identification of faulty fuses, thanks to LED status indicator

The easily accessible fuse inserts are easy to use or replace

In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PT 4-PE/L/HESILED 24 (5X20) - Fuse modular terminal block

3002603

Product details

ECLASS

ETIM

UNSPSC

CSA

EAC

cULus Recognized

cULus Recognized

cULus Recognized

cUL Recognized

IECEx

UL Recognized

CCC

ATEX

UKCA-EX

EAC Ex

Compatible products

Your advantages

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

PT 4-PE/L/HESILED 24 (5X20) - Fuse modular terminal block 3002603

Product details

ECLASS

ETIM

UNSPSC

Compatible products

FBS 2-6 - Plug-in bridge 3030336

FBS 3-6 - Plug-in bridge 3030242

FBS 4-6 - Plug-in bridge 3030255

FBS 5-6 - Plug-in bridge 3030349

FBS 6-6 - Plug-in bridge 1008238

FBS 10-6 - Plug-in bridge 3030271

FBS 20-6 - Plug-in bridge 3030365

FBSR 2-6 - Plug-in bridge 3033715

FBSR 3-6 - Plug-in bridge 3001594

FBSR 4-6 - Plug-in bridge 3001595

FBSR 5-6 - Plug-in bridge 3001596

FBSR 10-6 - Plug-in bridge 3033716

FBSRH 2-6 - Short-circuit connector 3033812

FBS 2-6 BU - Plug-in bridge 3036932

FBS 3-6 BU - Plug-in bridge 3036945

FBS 4-6 BU - Plug-in bridge 3036958

FBS 5-6 BU - Plug-in bridge 3036961

FBS 10-6 BU - Plug-in bridge 3032198

FBS 20-6 BU - Plug-in bridge 3032208

FBS 50-6 BU - Plug-in bridge 3032211

D-PT 4-PE/L/HESI - End cover 3002619

WS PT 4 - Warning label 1029563

LPS-6/E - Service connector 3270540

LPS-6 - Service connector 3270541

LPO 4/E - Pick-off plug 3270519

LPO 4 - Pick-off plug 3270522

NS 35/ 7,5 PERF 2000MM - DIN rail perforated 0801733

NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated 0801681

NS 35/ 7,5 WH PERF 2000MM - DIN rail perforated 1204119

NS 35/ 7,5 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1204122

NS 35/ 7,5 AL UNPERF 2000MM - DIN rail, unperforated 0801704

NS 35/ 7,5 ZN PERF 2000MM - DIN rail perforated 1206421

NS 35/ 7,5 ZN UNPERF 2000MM - DIN rail, unperforated 1206434

NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated 0801762

NS 35/ 7,5 CAP - End cap 1206560

NS 35/15 PERF 2000MM - DIN rail perforated 1201730

NS 35/15 UNPERF 2000MM - DIN rail, unperforated 1201714

NS 35/15 WH PERF 2000MM - DIN rail perforated 0806602

NS 35/15 WH UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1204135

NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated 1201756

NS 35/15 ZN PERF 2000MM - DIN rail perforated 1206599

NS 35/15 ZN UNPERF 2000MM - DIN rail, unperforated 1206586

NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1201895

NS 35/15 CAP - End cap 1206573

NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated 1201798

ZBF 6:UNBEDRUCKT - Zack Marker strip, flat 0808710

ZBF 6 CUS - Zack Marker strip, flat 0825027

UC-TMF 6 - Marker for terminal blocks 0818140

UC-TMF 6 CUS - Marker for terminal blocks 0824646

UCT-TMF 6 - Marker for terminal blocks 0828746

UCT-TMF 6 CUS - Marker for terminal blocks 0829665

MPS-MT/ 4MM - Test plug 3048577

MPS-IH WH - Insulating sleeve 0201663

MPS-IH RD - Insulating sleeve 0201676

MPS-IH BU - Insulating sleeve 0201689

MPS-IH YE - Insulating sleeve 0201692

MPS-IH GN - Insulating sleeve 0201702

MPS-IH GY - Insulating sleeve 0201728

MPS-IH BK - Insulating sleeve 0201731

PAI-4 - Test adapter 3030925

SZS 1,0X4,0 VDE - Screwdriver 1205066

X-PEN 0,35 - Marker pen 0811228

CRIMPFOX CENTRUS 6S - Crimping pliers 1213144

CRIMPFOX CENTRUS 10S - Crimping pliers 1213154

CRIMPFOX CENTRUS 6H - Crimping pliers 1213146

CRIMPFOX CENTRUS 10H - Crimping pliers 1213156

CRIMPFOX 10S - Crimping pliers 1212045

CRIMPFOX 6H - Crimping pliers 1212046

CRIMPFOX 2,5-M - Crimping pliers 1212719

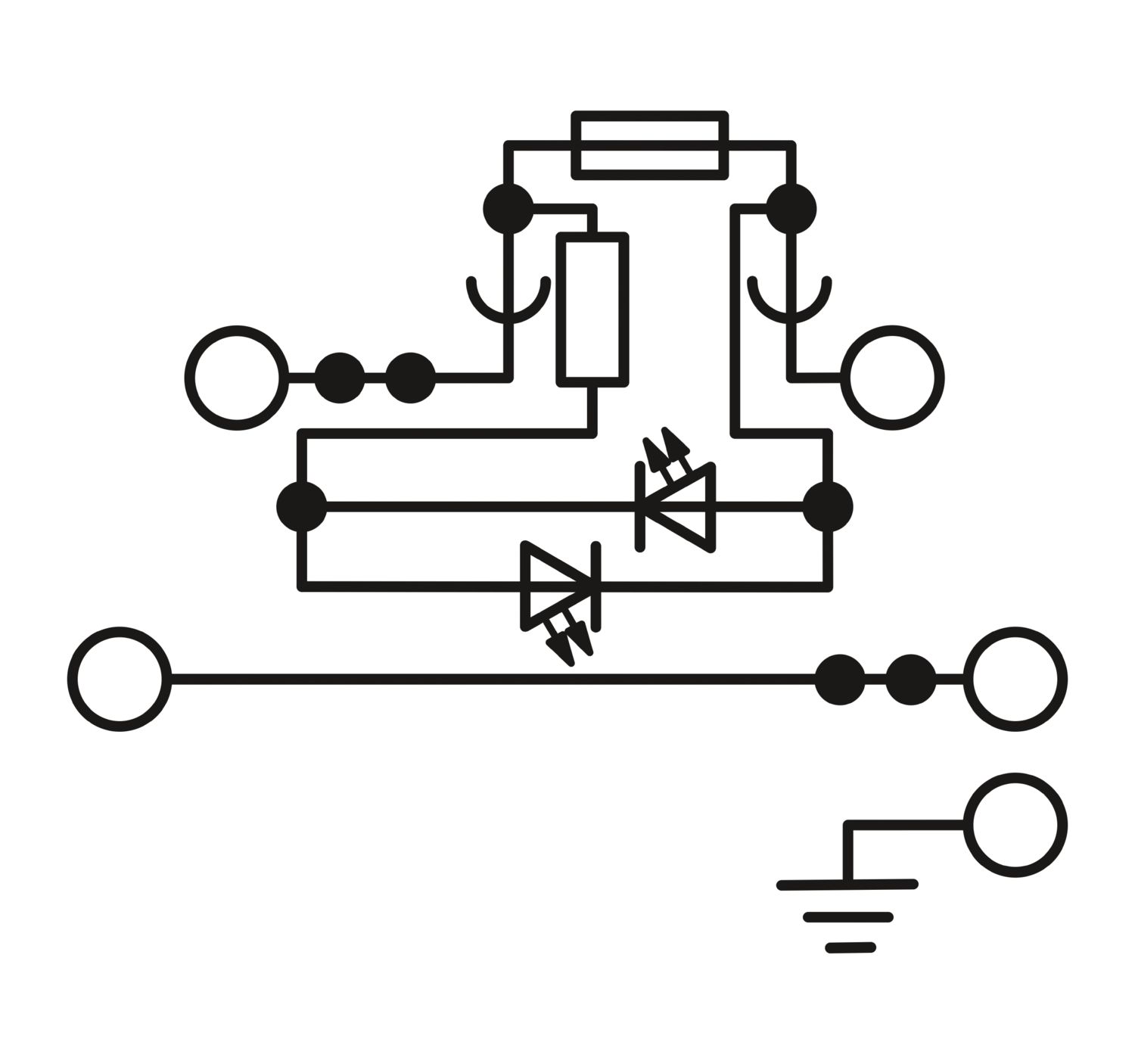

PT 4-PE/L/HESILED 24 (5X20) - Fuse modular terminal block

3002603
