HC-K-KV-M25(11-17)
-
Cable gland
1690639
Plastic screw connection up to 5 bar, thread length: 8 mm, cable diameter: 11 - 17 mm, WAF 29, screw connection: M25
Product details
| Product type | Cable screw gland |
| No. of conductors | 1 |
| Type of the screw connection | M25 |
| Shielded | no |

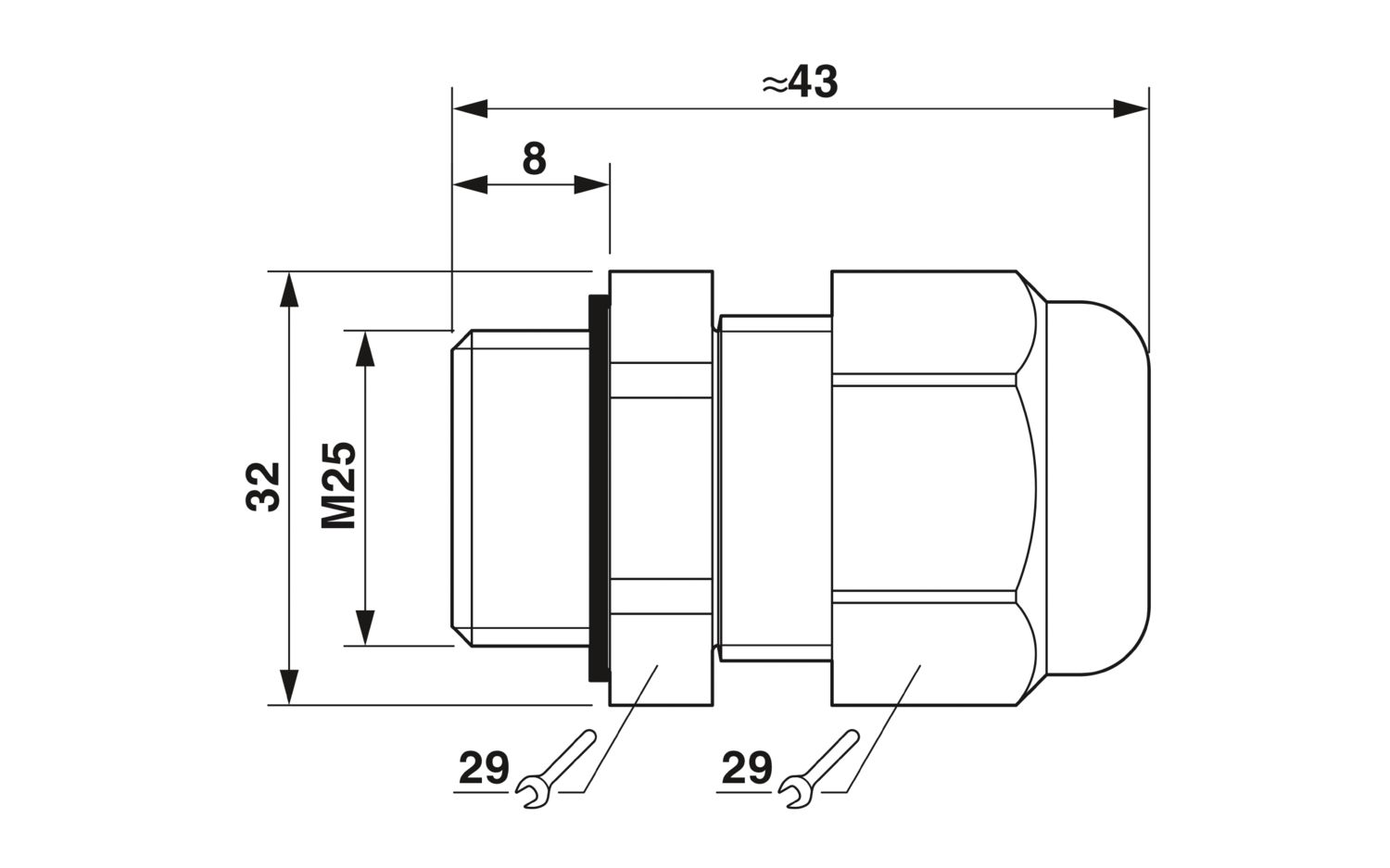

| Dimensional drawing |
|
| Length | 43 mm |
| Length of the connecting thread | 8 mm |
| Wrench size, union nut | 29 mm |
| Wrench size, support | 29 mm |
| Hexagon angular dimension | 32 mm |
| Thread type connection side | M25 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 5 Nm (Union nut) |
| 5 Nm (Support sleeve) |
| Color | silver grey (RAL 7001) |
| Flammability rating according to UL 94 | V2 |
| Seal material Cable seal | Neoprene |
| Material for screw connection | PA |
| External cable diameter Cable 1 | 11 mm ... 17 mm |
| Ambient conditions | |
| Degree of protection | IP68 (up to 5 bar) |
| Ambient temperature (operation) | -20 °C ... 100 °C |
