A-INLE-PG13,5-N-S
-
EMC nut
1411278
EMC nut, for threads Pg13.5, color: silver-colored
Product details
| Product type | Flat nut |
| Thread type | Pg13.5 |

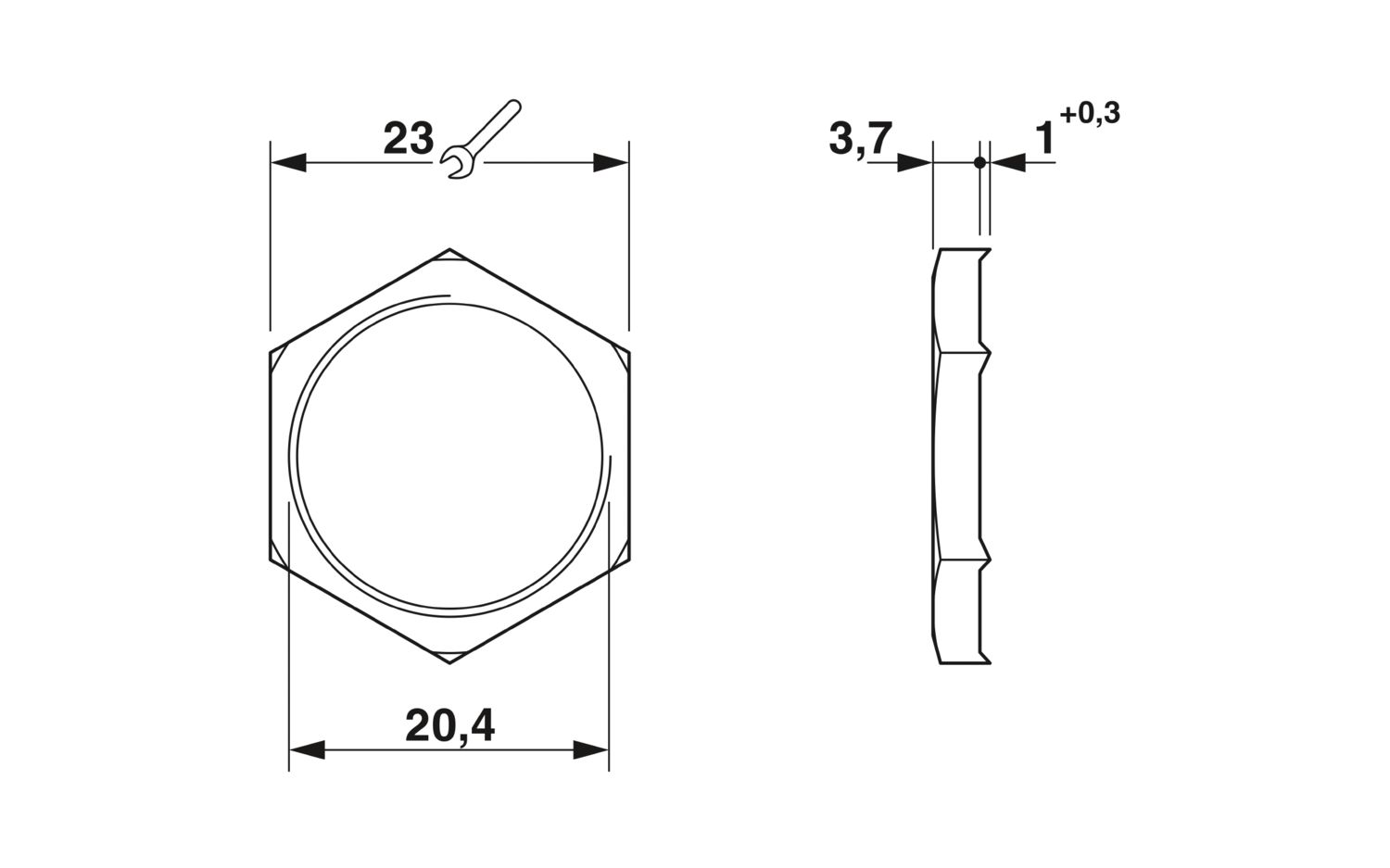

| Dimensional drawing |
|
| Length | 4.7 mm |
| Diameter | 20.4 mm |
| Connecting thread diameter | 20.4 mm |
| Wrench size, counter nut | 23 mm |
| Hexagon angular dimension | 26 mm |
| Thread type connection side | Pg13.5 |
| Material | Brass, nickel-plated |
| Halogen-free | yes |
| Ambient conditions | |
| Ambient temperature (operation) | -70 °C ... 220 °C |
| Assembly note | for EMC cable glands, for removing a non-conductive surface coating |
