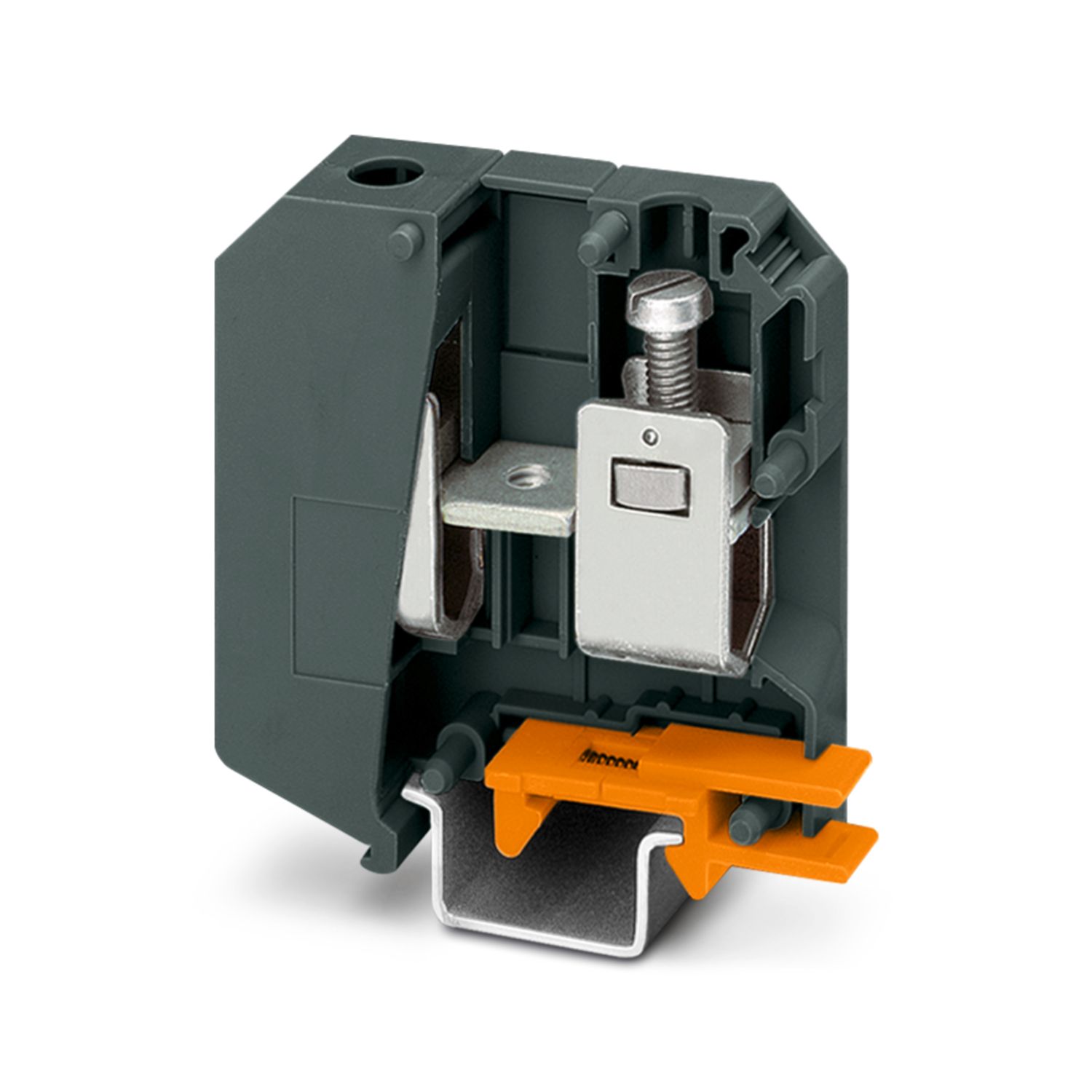

TB 50 I - Feed-through terminal block

3247180

Feed-through terminal block, nom. voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of positions: 1, connection method: Screw connection, Rated cross section: 50 mm², cross section: 16 mm² - 70 mm², mounting type: NS 35/7,5, NS 35/15, color: dark gray

Product details

Product type	Feed-through terminal block
Product family	TB
Number of positions	1
Number of connections	2
Number of rows	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Maximum power dissipation for nominal condition	4.73 W

Number of connections per level	2
Nominal cross section	50 mm²
Rated cross section AWG	1/0
Screw thread	M6
Tightening torque	6 ... 8 Nm
Stripping length	24 mm
Internal cylindrical gage	A10
	B10
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	16 mm² ... 70 mm²
Cross section AWG	4 ... 2/0 (converted acc. to IEC)
Conductor cross section flexible	25 mm² ... 70 mm²
Conductor cross section, flexible [AWG]	2 ... 2/0 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	25 mm² ... 50 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	25 mm² ... 50 mm²
2 conductors with same cross section, solid	10 mm² ... 16 mm²
2 conductors with the same cross-section AWG rigid	6 ... 4 (converted acc. to IEC)
2 conductors with same cross section, flexible	10 mm² ... 16 mm²
2 conductors with the same cross-section AWG flexible	6 ... 4 (converted acc. to IEC)
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	10 mm² ... 16 mm²
Nominal current	150 A
Maximum load current	150 A
Nominal voltage	1000 V
Nominal cross section	50 mm²

Width	20 mm
Height	70.5 mm
Depth on NS 32	81.5 mm
Depth on NS 35/15	83.5 mm

Color	traffic grey B (RAL 7043)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 50 mm²	6 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	2.2 kV
Result	Test passed

Mechanical data
Open side panel	No

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32/NS 35
Test force setpoint	10 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 (+/- 2) rpm
Revolutions	135
Conductor cross section/weight	16 mm² / 2.9 kg
	50 mm² / 9.5 kg
	70 mm²/10.4 kg
Result	Test passed

Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 35/7,5
	NS 35/15

Commercial data

Item number	3247180
Packing unit	10 pc
Minimum order quantity	10 pc
Sales key	BE1411
Product key	BEK311
GTIN	4046356723558
Weight per piece (including packing)	121.85 g
Weight per piece (excluding packing)	121.07 g
Customs tariff number	85369010
Country of origin	IN

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG
Use group B
	600 V	150 A	6 - 1/0
Use group C
	600 V	150 A	6 - 1/0

Environmental product compliance

Compatible products

Accessories

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
