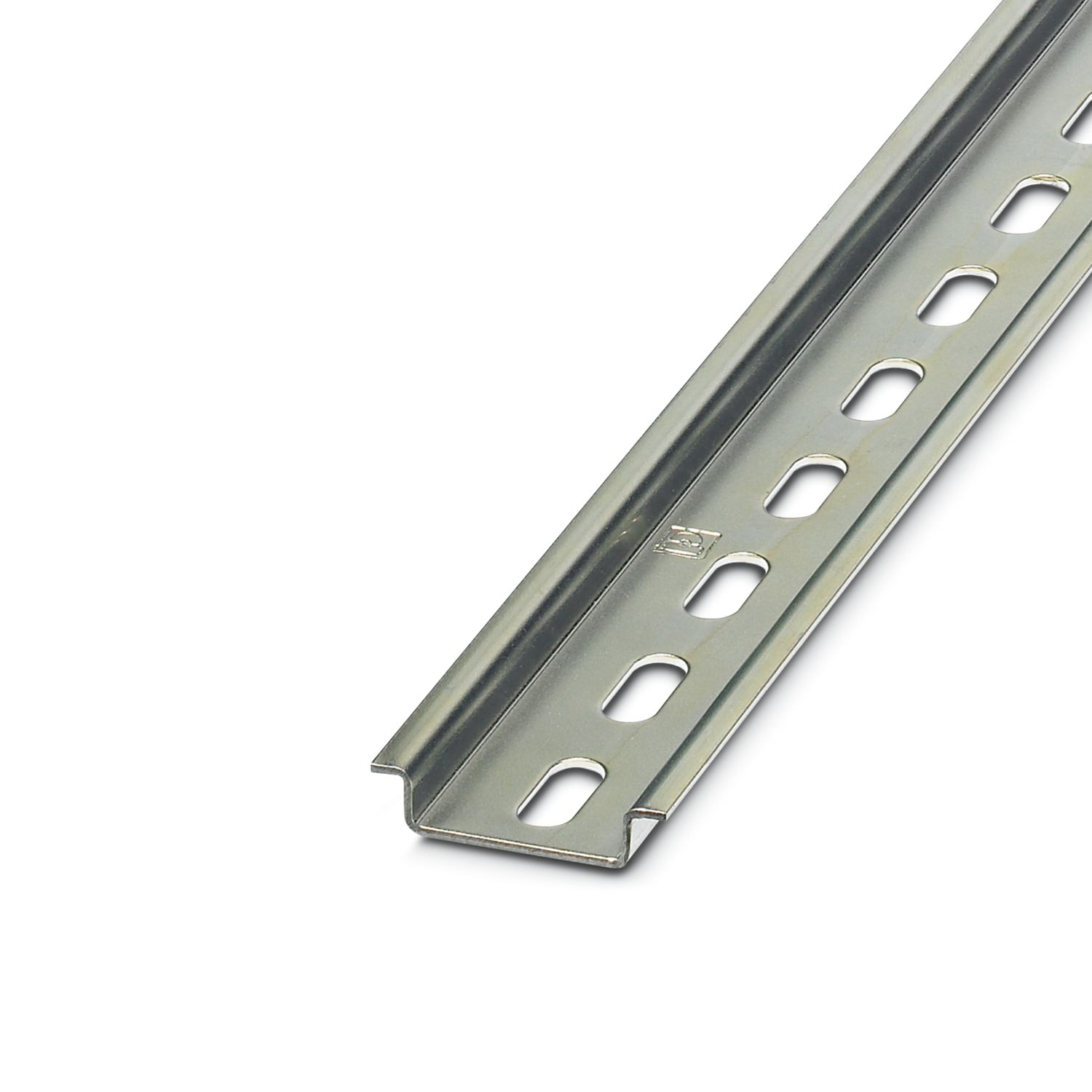

NS 35/ 7,5 PERF 755MM
-
DIN rail perforated
1207640
DIN rail perforated, acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
Product details
| Product type | DIN rail |
| Dimensional drawing |
|
| Width | 35 mm |
| Hole width | 15 mm |
| Hole height | 6.2 mm |
| Depth | 7.5 mm |
| Length | 755 mm |
| Drill hole spacing | 25 mm |
| Color | silver-colored |
| Material | Steel |
| Coating | galvanized, passivated with a thick layer |
| Connection in acc. with standard | IEC / EN |
| Tests | acc. to EN 60715 |
