PSR-PE60-3NO-24DC-SC-SET60 - Coupling relay - 1496313

Product details

Set consists of

Technical data

Notes

Note on application
Note on application	Only for industrial use

Product properties

Product type	Coupling relay
Product family	PSRclassic
Application	Safe switch off
	Safe switch on
	High demand
	Low demand
Control	1-channel
Relay type	Electromechanical relay in accordance with IEC/EN 61810
Insulation characteristics
Overvoltage category	III
Degree of pollution	2
Times
Typ. starting time with U_s	< 70 ms (with control via control input 3)
Typical release time	< 50 ms (with request via control input 3)
Recovery time	500 ms

Electrical properties

Maximum power dissipation for nominal condition	U_B = 26.4 V, U_S = 24 V, I_S = 31 mA, I_L² = 48 A, R_contact = 0.025 Ω
Nominal operating mode	100% operating factor
Rated insulation voltage	250 V AC
Rated surge voltage/insulation	Safe isolation, reinforced insulation 6.4 kV between 250 V load current paths and 24 V logic paths
Rated surge voltage/insulation		Basic insulation 4 kV between all current paths and housing
Supply
Designation	3/4
Rated control circuit supply voltage U_S	24 V DC -10 % ... +10 % (“1” signal)
Rated control supply current I_S	typ. 31 mA
Power consumption at U_S	typ. 745 mW
Inrush current	typ. 200 mA (Δt = 5 ms at U_s)
Filter time	1 ms (in the event of voltage dips at U_s)
Protective circuit	Serial protection against polarity reversal; Suppressor diode, 38.6 V/600 W

Output data

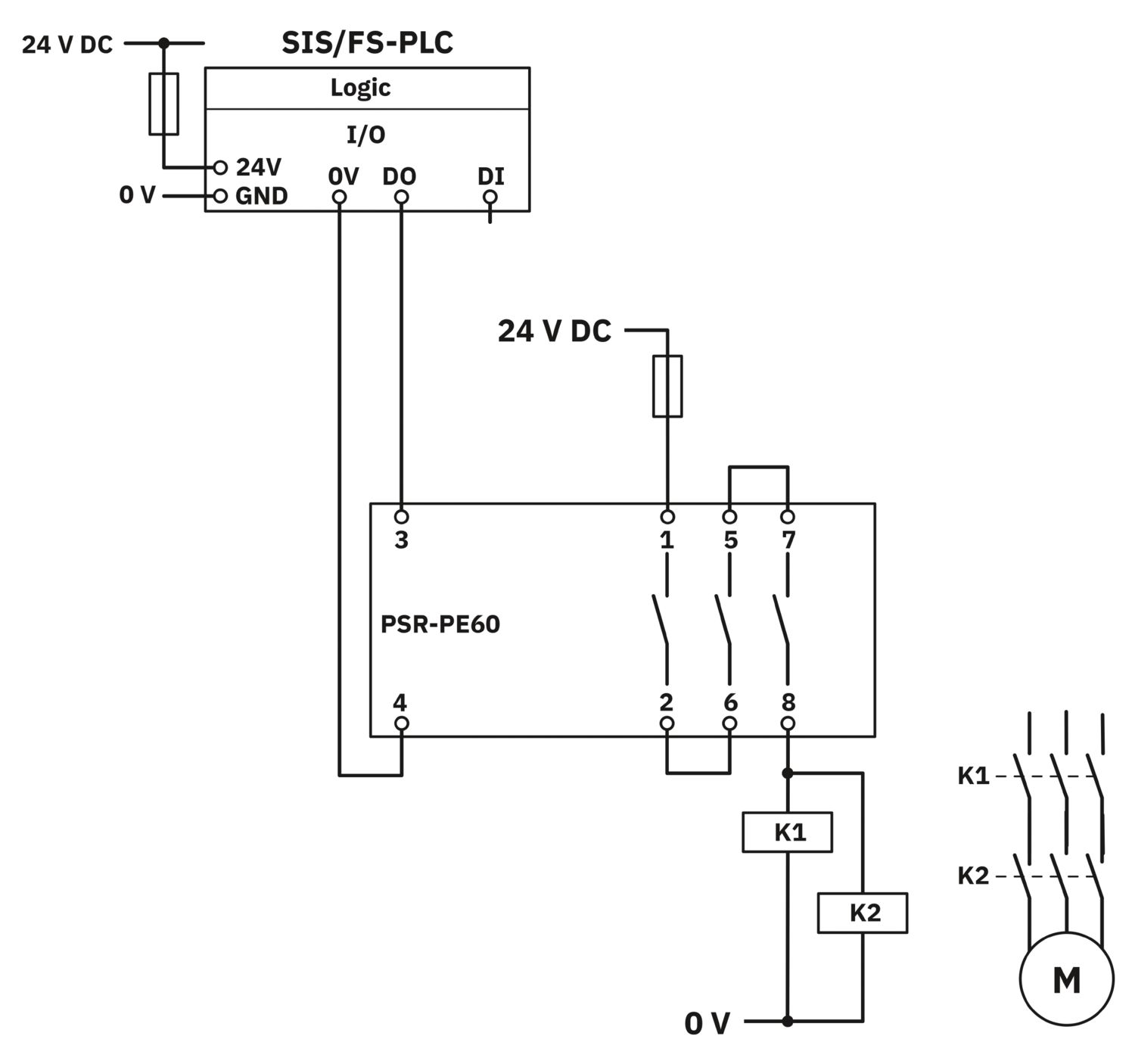

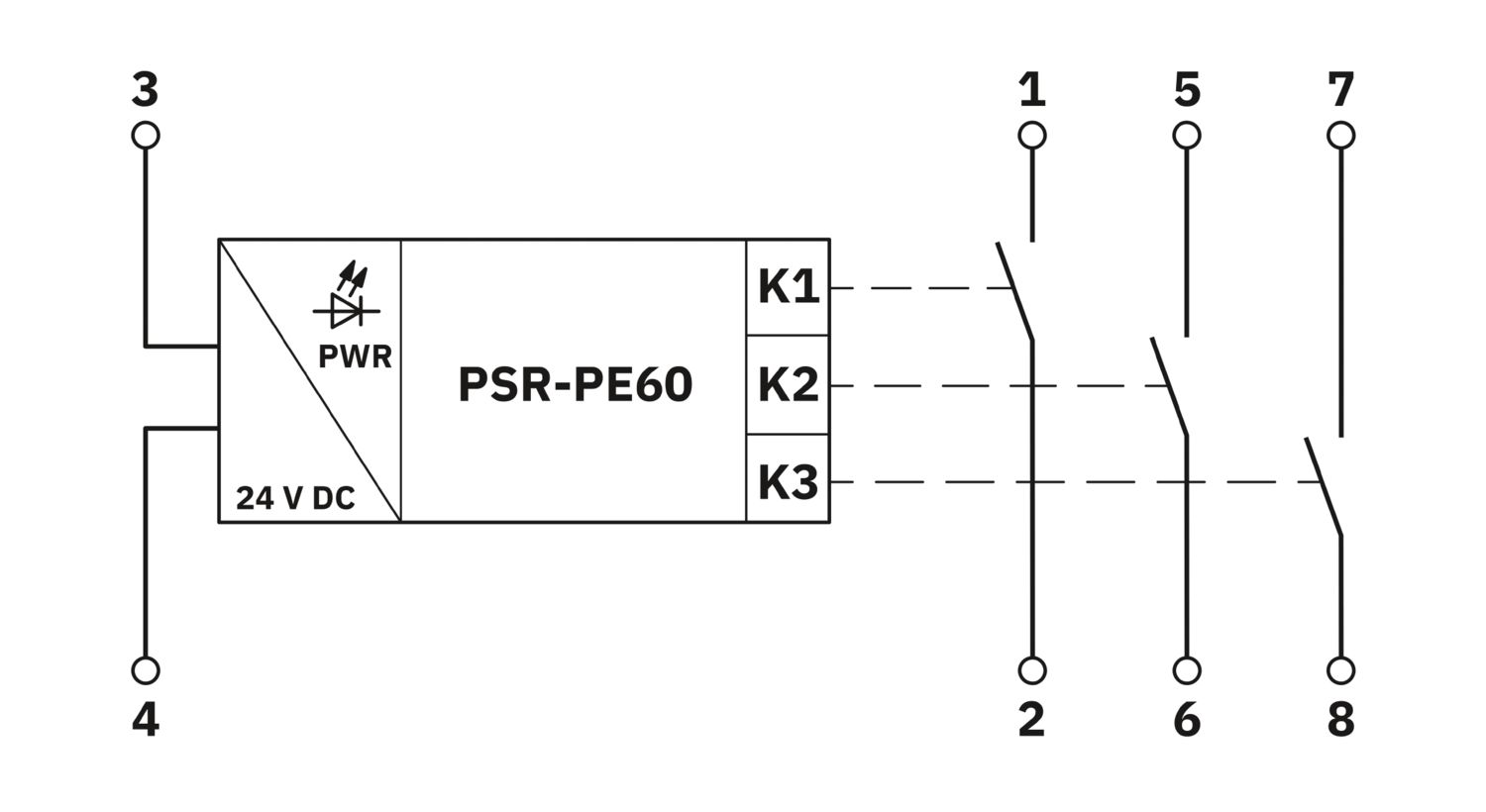

Relay: Enabling current paths (1/2, 5/6, 7/8)
Output description	1 N/O contact, undelayed, floating
Number of outputs	3 (non-safety-related)
Contact switching type	3 enabling current paths
Contact material	AgSnO2, +AU
Switching voltage	min. 12 V DC
	max. 250 V AC/DC
Switching capacity	min. 120 mW
Inrush current	min. 10 mA
	max. 4 A
Limiting continuous current	4 A
Sq. Total current	48 A² (observe derating)
Switching frequency	max. 0.1 Hz
Mechanical service life	10x 10⁶ cycles
Output fuse	4 A gL/gG (Safe state OFF application)

Connection data

Connection technology
pluggable	yes
Conductor connection
Connection method	Screw connection
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 12
Stripping length	7 mm
Screw thread	M3
Tightening torque	0.5 Nm ... 0.6 Nm

Signaling

Status display	1 x LED (green)

Dimensions

Width	12.5 mm
Height	99 mm
Depth	114.5 mm

Material specifications

Color (Housing)	gray (RAL 7042)
Housing material	PA

Characteristics

Safety data
Stop category	0
Safety data: EN 50156
Safety Integrity Level (SIL)	3
Safety data: IEC 61508 - high demand / safe state OFF
Safety Integrity Level (SIL)	3
Safety data: IEC 61508 - low demand / safe state OFF
Safety Integrity Level (SIL)	3
Safety data: IEC 61508 - low demand/safe state ON
Safety Integrity Level (SIL)	3

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Min. degree of protection of inst. location	IP54
Ambient temperature (operation)	-40 °C ... 70 °C (observe derating)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Maximum altitude	≤ 2000 m (Above sea level)
Max. permissible humidity (storage/transport)	75 % (on average, 85% infrequently, non-condensing)
Max. permissible relative humidity (operation)	75 % (on average, 85% infrequently, non-condensing)
Shock	15g
Vibration (operation)	10 Hz ... 150 Hz, 2g

Approvals

CE
Identification	CE-compliant

Mounting

Mounting type	DIN rail mounting
Assembly note	See derating curve
Mounting position	vertical or horizontal

Commercial data

Item number	1496313
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	DNA161
Product key	DNA161
GTIN	4063151944773
Weight per piece (including packing)	6,420 g
Weight per piece (excluding packing)	5,818.8 g
Customs tariff number	85371098
Country of origin	DE

Classifications

Approvals

Environmental product compliance

Compatible products

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	Lead (CAS: 7439-92-1)
