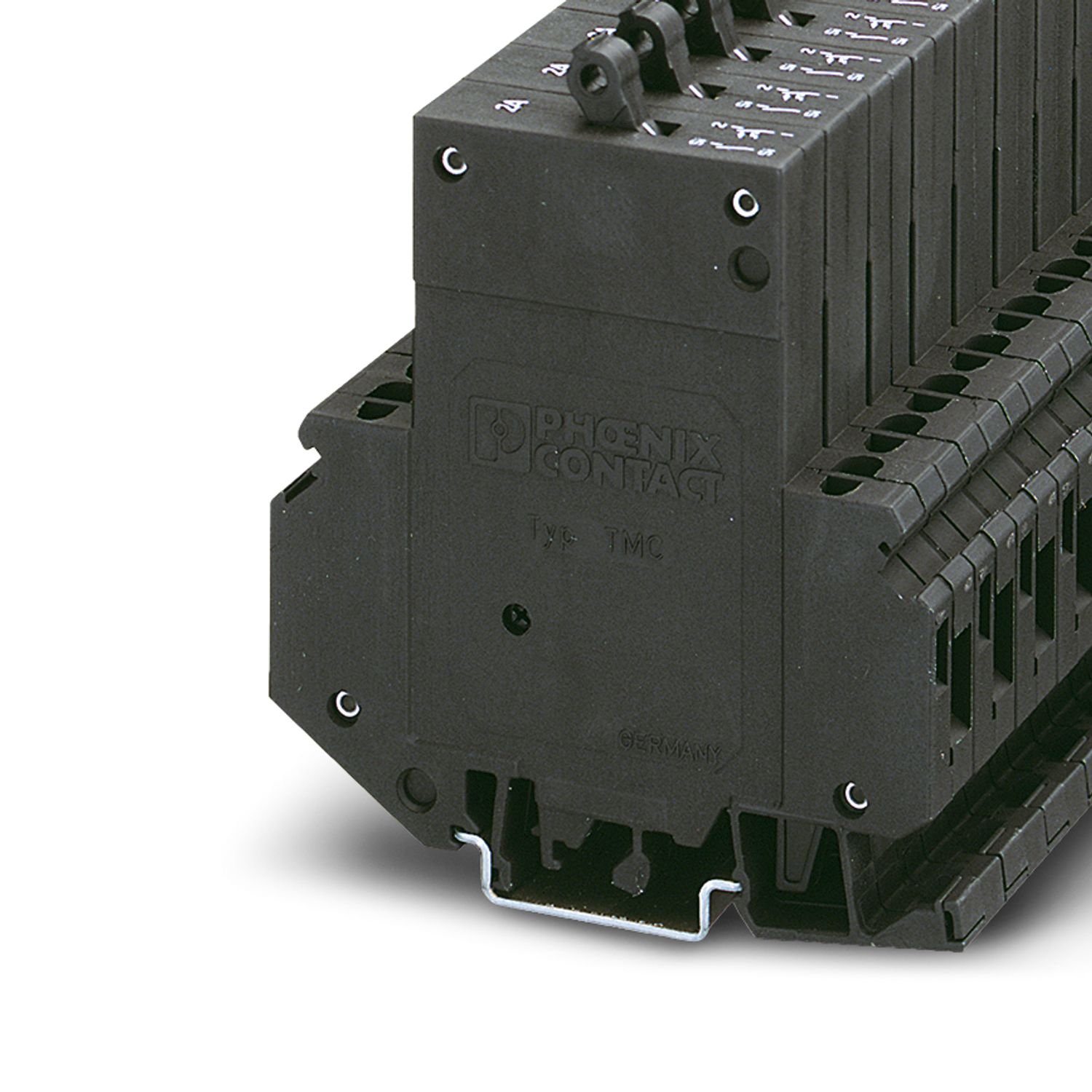

Thermal-magnetic circuit breaker, 3-pos., normal blow, 1 N/O contact and 2 N/C contacts, with universal foot for mounting on NS 32 or NS 35
Product details
Product type
Thermomagnetic device circuit breakers
Product family
TMC
Type
DIN rail module, one-piece
Number of positions
3
Number of connections
4
Number of rows
2
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Fuse type
Automatic device
Rated surge voltage
4 kV
General
Fuse
M1 (normal blow)
Contact switching type
1 N/O contact
2 N/C contacts
Main contact
Screw thread
M3
Tightening torque
0.6 ... 0.8 Nm
Stripping length
12 mm
Internal cylindrical gage
A3
Conductor cross section rigid
0.2 mm² ... 6 mm²
Cross section AWG
24 ... 10 (converted acc. to IEC)
Conductor cross section flexible
0.2 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)
0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid
0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible
0.2 mm² ... 0.75 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 2.5 mm²
Nominal current
20 A
Nominal voltage
250 V AC
65 V DC
Auxiliary contact
Screw thread
M3
Tightening torque
0.6 ... 0.8 Nm
Stripping length
12 mm
Internal cylindrical gage
A1
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Cross section AWG
24 ... 14 (converted acc. to IEC)
Conductor cross section flexible
0.2 mm² ... 1.5 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)
0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid
0.2 m² ... 0.75 m²
2 conductors with same cross section, flexible
0.2 m² ... 0.75 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.25 mm² ... 0.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 0.75 mm²
Nominal current
20 A
Nominal voltage
250 V AC
65 V DC
Width
37.5 mm
Height
83.5 mm
Height NS 35/15
103.5 mm
Height NS 35/7,5
96 mm
Height NS 32
100.5 mm
Depth
96 mm
Color
black (RAL 9005)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA-F
Mechanical data
Open side panel
No
Ambient conditions
Ambient temperature (operation)
-30 °C ... 60 °C
Mounting type
DIN rail: 35 mm
Item number
0915443
Packing unit
2 pc
Minimum order quantity
2 pc
Sales key
CL34
Product key
CLA121
GTIN
4046356338752
Weight per piece (including packing)
77.77 g
Weight per piece (excluding packing)
77.77 g
Customs tariff number
85362010
Country of origin
DE
ECLASS
ECLASS-13.0
27140401
ETIM
ETIM 9.0
EC003538
UNSPSC
UNSPSC 21.0
39121410
EU RoHS
Fulfills EU RoHS substance requirements
Yes
Exemption
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-25
An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
