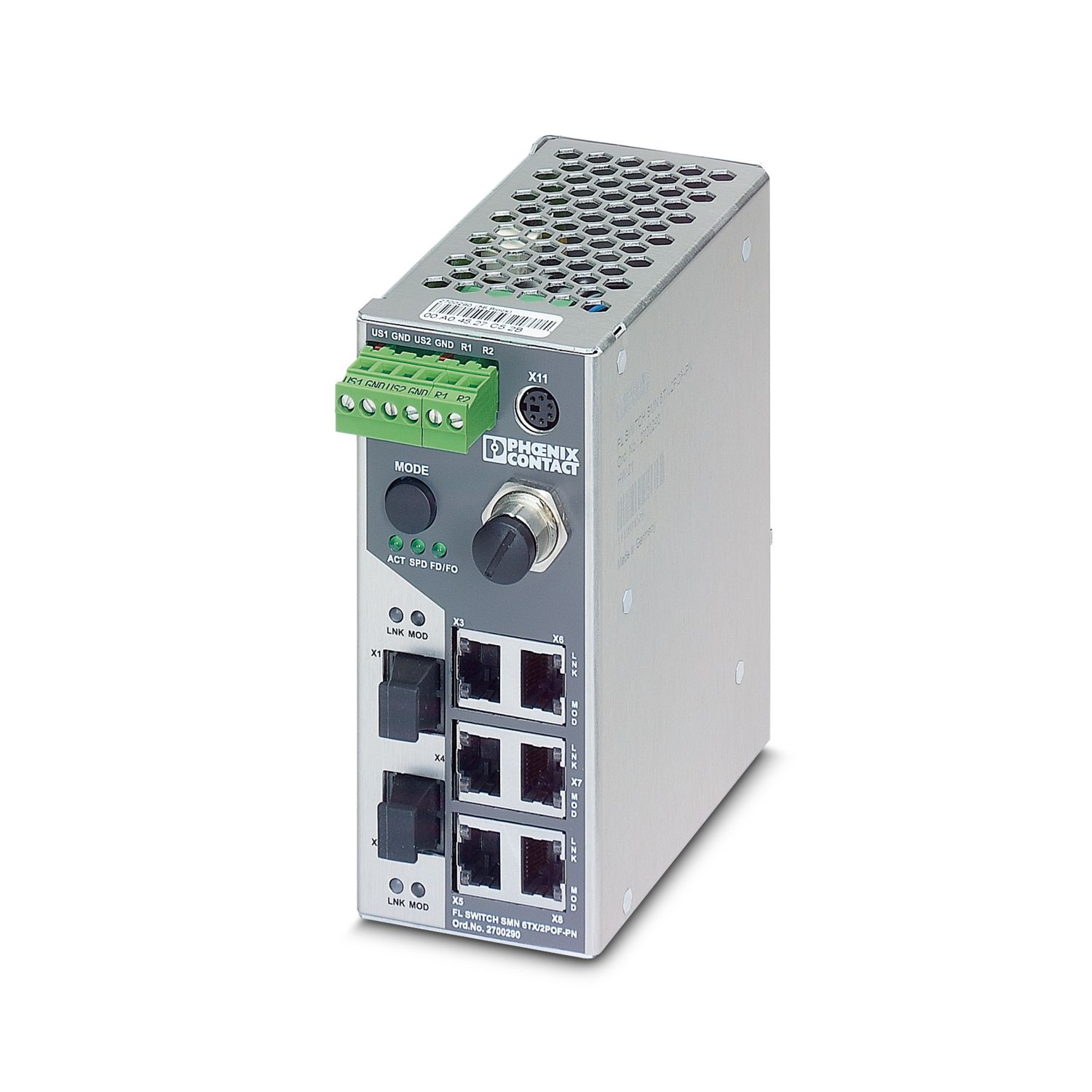

FL SWITCH SMN 6TX/2POF-PN - Industrial Ethernet Switch - 2700290

Dimensions

Width	57 mm
Height	133 mm
Depth	125 mm

Material specifications

Color	gray aluminum

Mounting

Mounting type	DIN rail mounting

Interfaces

Ethernet
Connection method	RJ45
Note on the connection method	Auto negotiation and autocrossing
Transmission speed	10/100 Mbps
Transmission physics	Copper
Transmission length	100 m (per segment)
Signal LEDs	Supply voltage, data transmission, error, link, activity
No. of channels	6 (RJ45 ports)
POF/PCF
Connection method	POF SC-RJ
Transmission speed	10/100 Mbps (full duplex)
Transmission physics	POF-SCRJ
Transmission length	up to 100 m (depending on the fiber used)
Wavelength	650 nm
No. of channels	2 (SC-RJ)
Serial (RS-232)
Connection method	RS-232-C, 6-pos. MINI-DIN socket (PS/2)

Product properties

Product type	Switch
Product family	Managed Switch SMN
Type	Book type
Basic functions	Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP).
Switch functions
Diagnostic functions	RMON History
		N:1-Portmirroring
		LLDP (Link Layer Discovery Protocol)
		SNMP-Traps
Basic functions	Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP).
Signal contact control voltage	24 V (typical)
Signal contact control current	100 mA
PROFINET conformance class	Conformance-Class B
PROFINET device function	PROFINET device
PROFINET device function		Fast Startup
Filter functions	Quality of Service (4 priority classes)
		Port-Priorisierung
		VLAN
		IGMP Snooping (128 groups)
		IGMP Query
		Auto-Query-Port
		Extended Multicast Filtering
		Static Multicast Filtering
Management	Web-based management (HTTP)
		SNMP v1/v2
		Serial interface (V.24)
Redundancy	MRP (Media Redundancy Protocol)
		RSTP (Rapid Spanning Tree Protocol)
		FRD (Fast Ring Detection)
		Large Tree Support
Status and diagnostic indicators	LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex)
Supported browsers	Internet Explorer 5.5 or higher
Additional functions	BootP
Additional functions		DHCP-Client
Time synchronization	SNTP
Security functions
Basic functions	Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP).
Link Layer Discovery Protocol (LLDP)	As per protocol 802.2

Electrical properties

Current consumption	320 mA
Local diagnostics	US1/2 Supply voltage US1, US2 Green LED
		FAIL Div. LED red
		LNK/ACT Link status Green LED
		ACT/MODE Receiving/sending telegrams Green LED
		SPD/MODE Data transmission speed Green LED
		FD/FO Duplex mode with twisted pair ports; system reserve of the POF-SCRJ interface Green LED
Maximum power dissipation for nominal condition	7.68 W
Transmission medium	Copper
Transmission medium		FO
Supply
Supply voltage (DC)	24 V DC (redundant)
Supply voltage range	18 V DC ... 32 V DC
Power supply connection	Via COMBICON, max. conductor cross-section 2.5 mm²
Residual ripple	3.6 V_PP (within the permitted voltage range)
Typical current consumption	340 mA (at U_S = 24 V DC)
Current consumption	320 mA
Function
Signal contact control voltage	24 V (typical)
Signal contact control current	100 mA

Connection data

Connection method	Screw connection
Conductor cross-section, rigid	0.2 mm² ... 2.5 mm²
Conductor cross-section, flexible	0.2 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 12
Stripping length	7 mm

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	0 °C ... 55 °C (non-condensing)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	5 % ... 95 % (non-condensing)
Vibration (operation)	in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz
Air pressure (operation)	86 kPa ... 108 kPa (2000 m above mean sea level)
Air pressure (storage/transport)	66 kPa ... 108 kPa (3500 m above sea level)

Standards and regulations

Free from substances that could impair the application of coating	Yes

EMC data

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Conformance with EMC directives	IEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion A
	IEC 61000-4-3 (electromagnetic fields) Criterion A
	IEC 61000-4-4 (burst) Criterion A
	IEC 61000-4-5 (surge) Criterion A
	IEC 61000-4-6 (immunity to conducted interference) Criterion A
Noise immunity	EN 61000-6-2:2005
Noise emission
Standards/regulations	EN 61000-6-4:2007 + A1:2011

System properties

Functionality
Basic functions	Store-and-forward switch complies with IEEE 802.3 4 priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, port-mirroring, integrated web server function, multicast filtering, IGMP snooping, VLAN, Rapid Spanning Tree (RSTP), PROFINET Device, Media Redundancy Protocol (MRP).
System requirements
Supported browsers	Internet Explorer 5.5 or higher

Signaling

Item number	2700290
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	D25
Product key	DNN122
GTIN	4046356525954
Weight per piece (including packing)	845.8 g
Weight per piece (excluding packing)	720 g
Customs tariff number	85176200
Country of origin	DE

EU RoHS
Fulfills EU RoHS substance requirements	Yes
Exemption	6(a)-I, 6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 An article-related China RoHS declaration table can be found in the download area for the respective article under "Manufacturer declaration". For all articles with EFUP-E, no China RoHS declaration table issued and required.
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
