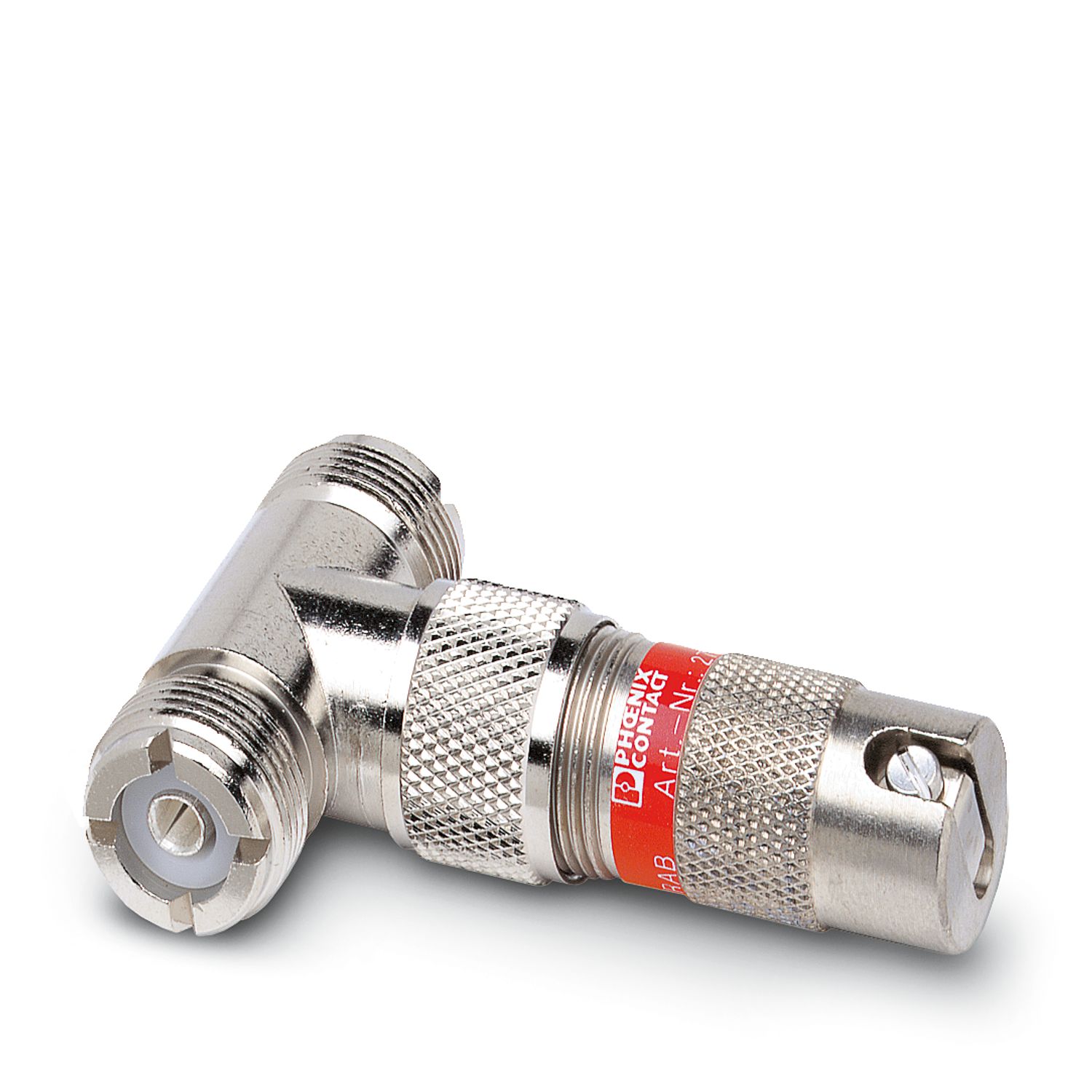

RF-TRAB 500 - Surge protection device - 2765084

Product properties

Product type	Surge protection for transceiver systems
IEC test classification	C2
	C3
	D1
Type	Intermediate plug

Connection data

Connection method	UHF connector

Dimensions

Material specifications

Housing material	Nickel-plated brass

Mechanical properties

Mechanical data
Open side panel	No

Protective circuit

Direction of action	Line-Shield/Earth Ground
Maximum continuous operating voltage U_C	265 V AC
Maximum continuous voltage U_C (line-earth)	265 V AC
Maximum continuous voltage U_C (line-shield)	265 V AC
Operating effective current I_C at U_C	≤ 1 µA
Protective conductor current I_PE	≤ 1 µA
Nominal discharge current I_n (8/20) µs (line-ground)	10 kA
Nominal discharge current I_n (8/20) µs (line-shield)	10 kA
Total surge current (8/20) µs	10 kA
Output voltage limitation at 1 kV/µs (line-earth) spike	≤ 1.5 kV
Output voltage limitation at 1 kV/µs (line-shield) spike	≤ 1.5 kV
Output voltage limitation at 1 kV/µs (line-earth) static	≤ 1.5 kV
Output voltage limitation at 1 kV/µs (line-shield) static	≤ 1.5 kV
Voltage protection level U_p (line-earth)	≤ 1.5 kV
Voltage protection level U_p (line-shield)	≤ 1.5 kV
Response time t_A (line-earth)	≤ 100 ns
Response time tA (line-shield)	≤ 100 ns

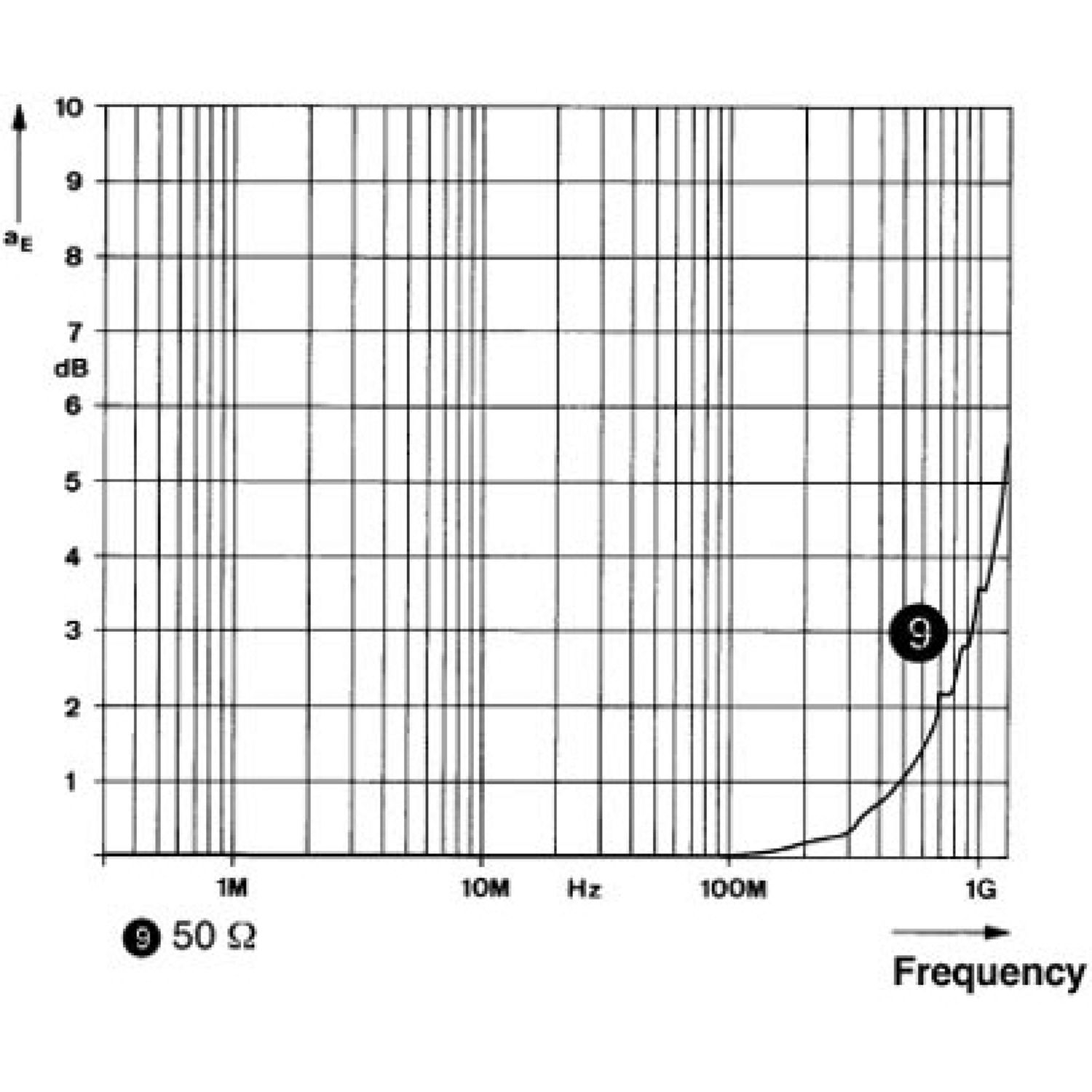

Input attenuation aE, asym.	0.3 dB (≤ 250 MHz)
Cut-off frequency fg (3 dB), asym. (shield) in 50 Ω system	typ. 950 MHz
Voltage standing wave ratio VSWR in a 50 Ω system	≤ 1.20 (≤ 80 MHz)
Permissible HF power P_max at VSWR = xx (50 ohm system)	1 kW (VSWR = 1.1)
Permissible HF power P_max at VSWR = xx (50 ohm system)		300 W (VSWR = ∞)
Impulse durability (line-earth)	C2 - 10 kV / 5 kA
Impulse durability (line-earth)		D1 - 2.5 kA

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 90 °C

Standards and regulations

Standards Information technology specification
Standards/regulations	IEC 61643-21
	IEC 61643-21
Standards/specifications	IEC 61643-21
Note	2000

Mounting

Item number	2765084
Packing unit	1 pc
Minimum order quantity	1 pc
Note	Made to order (non-returnable)
Sales key	CL33
Product key	CL3316
GTIN	4017918066154
Weight per piece (including packing)	79.47 g
Weight per piece (excluding packing)	75.178 g
Customs tariff number	85363080
Country of origin	DE

RF-TRAB 500 - Surge protection device

2765084

EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
