HC-D 7-SD-FL/FS
-
Protective cover
1772573

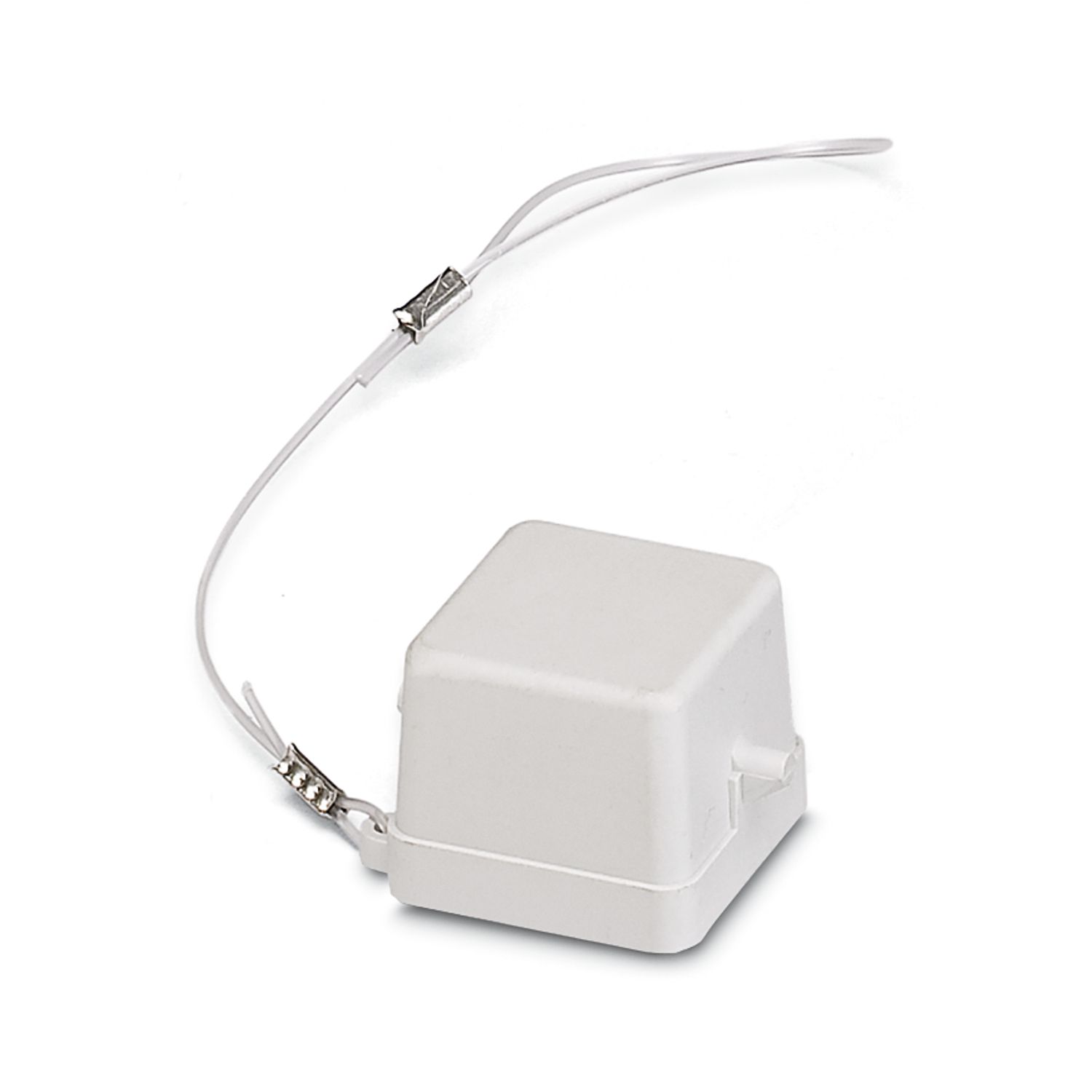

Protective cover D7, for single locking latch, protective cover material: PA, height: 17 mm, seal: no, with lanyard
Product details
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | D7 |
| Type | for supporting base element with single locking latch |
| Seal present | no |
| Dimensional drawing |
|
| Width | 26.5 mm |
| Height | 17 mm |
| Length | 26.5 mm |
| Diameter | 30 mm |
| Flammability rating according to UL 94 | V2 |
| Material, protective cover | PA |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
| Assembly note | Plastic protective cover for short-term protection |
