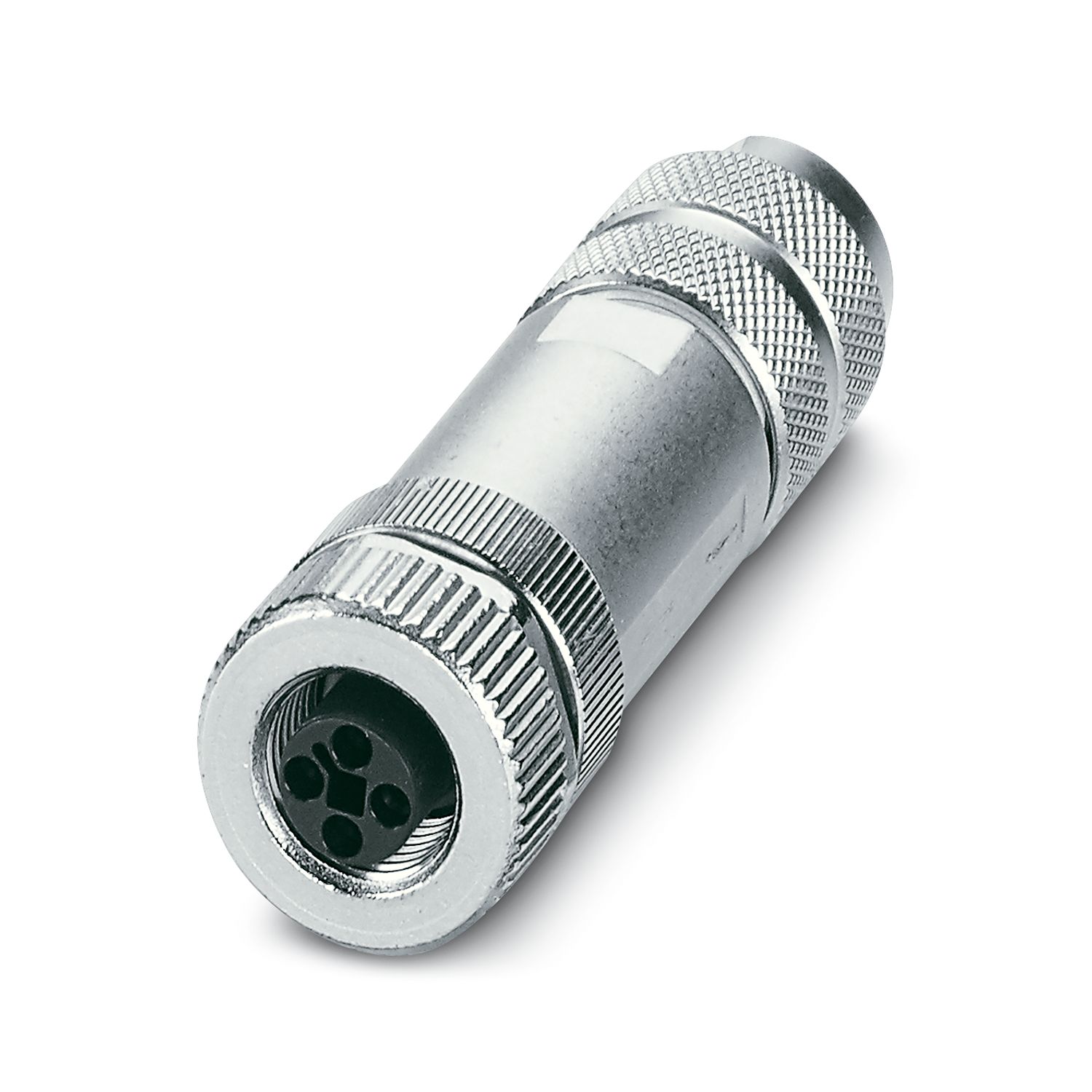

SACC-M12FST-4CON-S8-9 SH
-
Power connector
1424706
Power connector, Socket straight M12, coding: T, Screw connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 8 mm ... 9 mm, For direct current up to 12 A/63 V
Product details
| Product type | Circular connector (cable-side) |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | T |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |

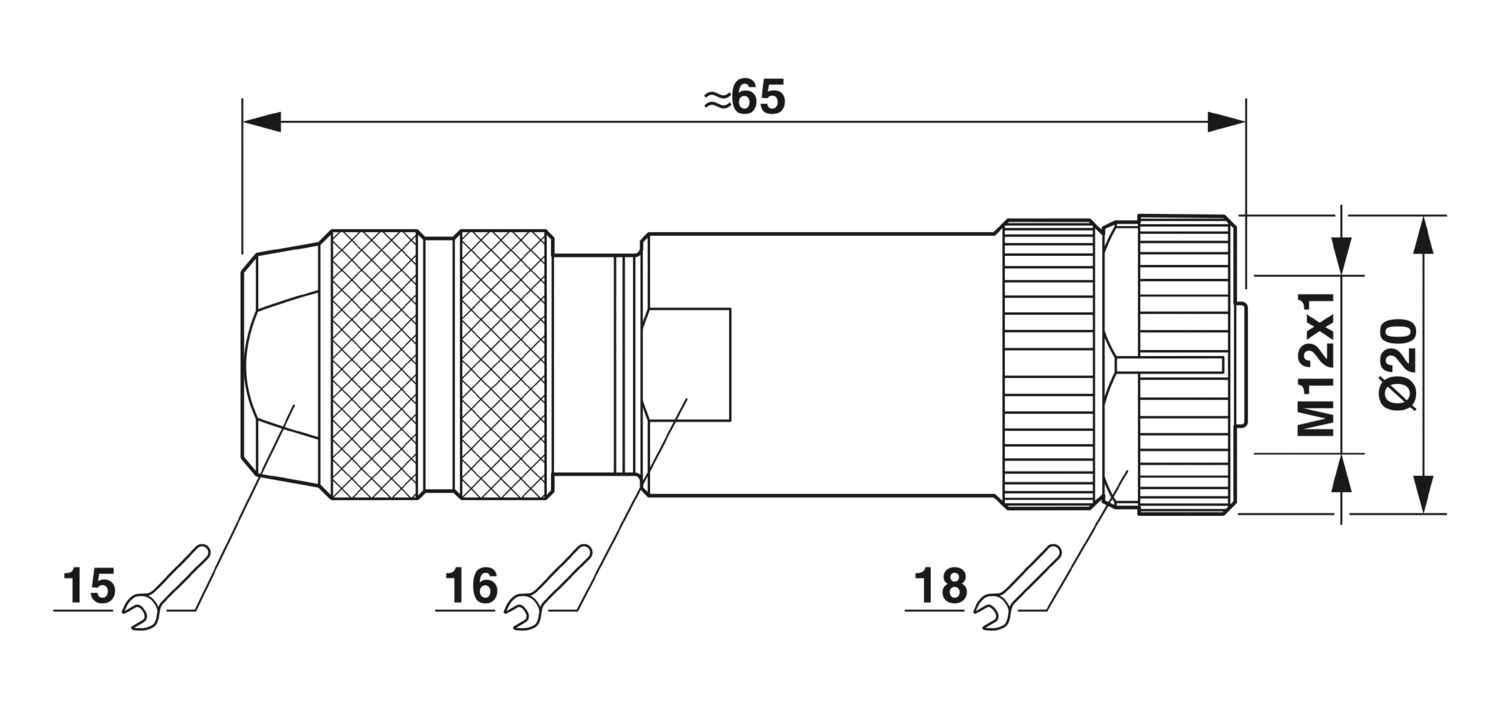

| Dimensional drawing |
|
| Length | 65 mm |
| Wrench size, union nut | 15 mm |
| External dimensions | |
| Outside diameter | 8 mm ... 9 mm |
| Flammability rating according to UL 94 | V0 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Conductor connection | |
| Connection method | Screw connection |
| Connection cross section | 0.75 mm² ... 1.5 mm² |
| Connection cross section AWG | 18 ... 16 |
| Stripping length of the individual wire | 5 mm |
| Tightening torque | 0.4 Nm (M12 knurl) |
| ≥ 1 Nm (Pressure screw with sleeve housing) | |
| Screw plug insert with sleeve housing as far it will go | |
| 0.2 Nm (Screw terminal blocks) | |
| Nominal voltage UN | 63 V DC |
| Nominal current IN | 12 A (when using 1.5 mm² conductors) |
| 12 A (at 40 °C) |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Connection 1 | |
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | T |
| Stripping length of the individual wire | 5 mm |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -40 °C ... 85 °C (Plug / socket) |
| Standards/specifications | IEC 61076-2-111 |
Your advantages
Safe use in the field, thanks to a high degree of protection
Screw connection: proven connection technology for a large selection of different conductors
High-performance: DC connectors for up to 12 A and 60 V DC
Protection against incorrect connection using special T-coding
