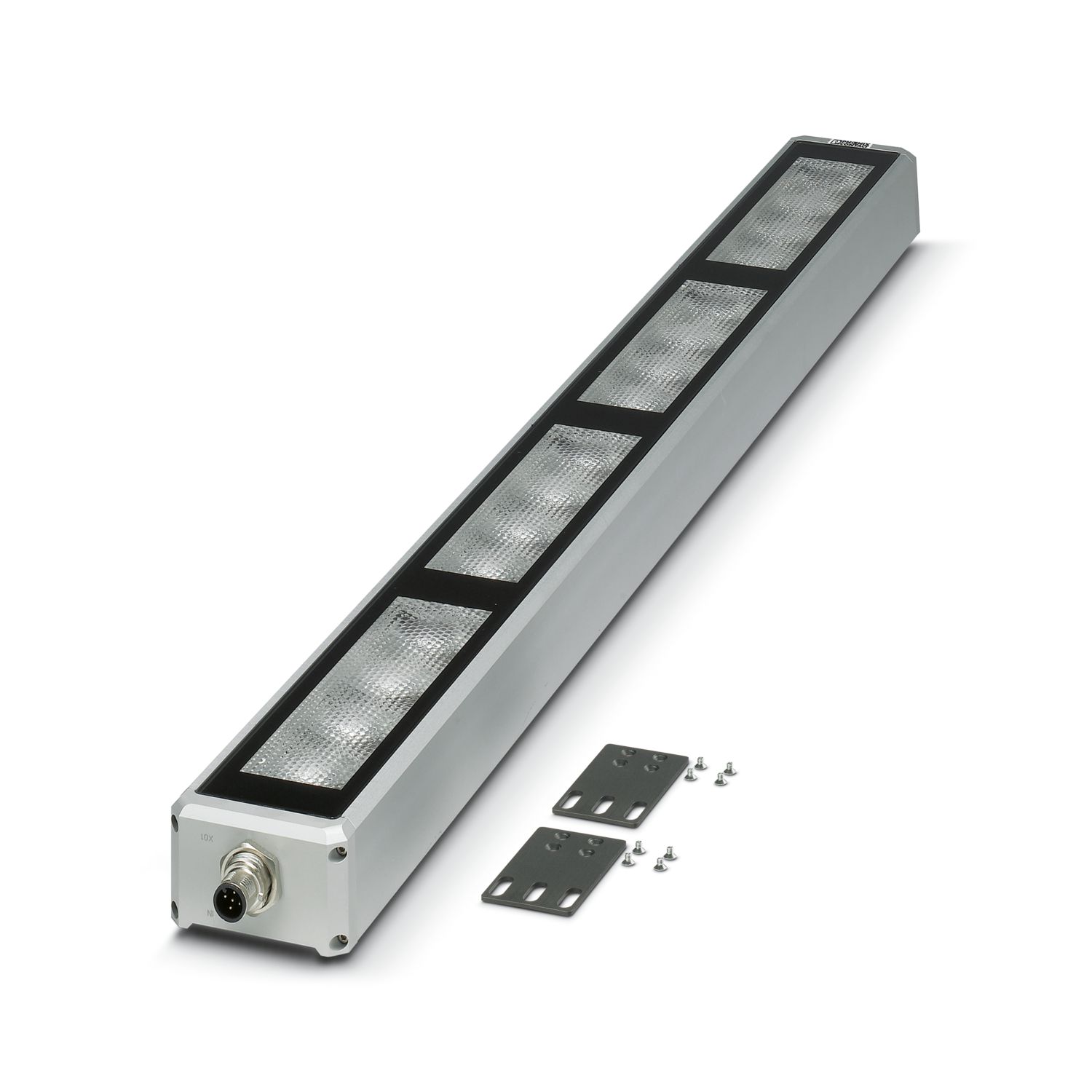

PLD M 360 W-50 695 - LED machine light - 2701691

Product type	Machine light
Application	Machine
	Machine tool
Mounting position	any
Special properties	can be switched in series
	Dimming
	Flash mode
	resistant to coolants and lubricants
	including mounting accessories
Light color	Neutral white

Maximum power dissipation for nominal condition	22 W
Supply: Module electronics
Connection technology	M12 connector
Connection method	M12 connector, A-coded
Number of positions	5
Supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 28.8 V DC
Current consumption	typ. 0.92 A (at 24 V DC)
Power consumption	typ. 22 W

Connection method	M12 connector, A-coded

Light properties
Source of light type	LED
Number of LEDs	16
Light color	Neutral white
Color temperature	5000 K ±5 %
Color rendering index	Ra ≥ 80
Luminous flux	1410 lm
Illumination	max. 4830 lx (50 cm distance)
	max. 1755 lx (Distance of 1 m)
Luminous intensity	max. 2110 Cd
Average illumination	1160 lx (1 m x 1 m measuring field with 50 cm distance)
Can be dimmed	Via PWM signal
Emission angle	50 °

Width	60 mm
Height	35 mm
Length	695 mm
Note on dimensions	Length without M12 flush-type connector

Color	silver
Material ()	Anodized aluminum (Light housing)
	Satined acrylic (Light cover)
Material	Anodized aluminum
	Laminated safety glass (LSG)

Ambient conditions
Ambient temperature (operation)	-25 °C ... 60 °C
Degree of protection	IP67
Air pressure (operation)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)	70 kPa ... 106 kPa (up to 3000 m above sea level)
Ambient temperature (storage/transport)	-25 °C ... 85 °C
Permissible humidity (operation)	95 % (non-condensing)

Protection class	III (IEC 61140, EN 61140, VDE 0140-1)

Mounting type	Screw mounting
Mounting position	any

Item number	2701691
Packing unit	1 pc
Minimum order quantity	1 pc
Sales key	D24
Product key	DRL223
GTIN	4046356783330
Weight per piece (including packing)	2,350 g
Weight per piece (excluding packing)	2,000 g
Customs tariff number	94054099
Country of origin	DE

Your advantages

Protection against polarity reversal, excessively high supply voltage, and overtemperature

Error indication via digital output

Two PWM inputs for dimming and flash mode

Laminated safety glass enables use even in environments with potential mechanical strain

Particularly economical thanks to energy-efficient LED technology and an LED service life of at least 50000 h

Can be switched in series via sensor/actuator cables with SPEEDCON M12 rapid interlock system

Focused illumination, thanks to 50° emission angle

Homogenous and glare-free lighting thanks to innovative optics
