HC-B 24-TFQ-76/O1STM40S-EMV
-
EMC housing
1642836

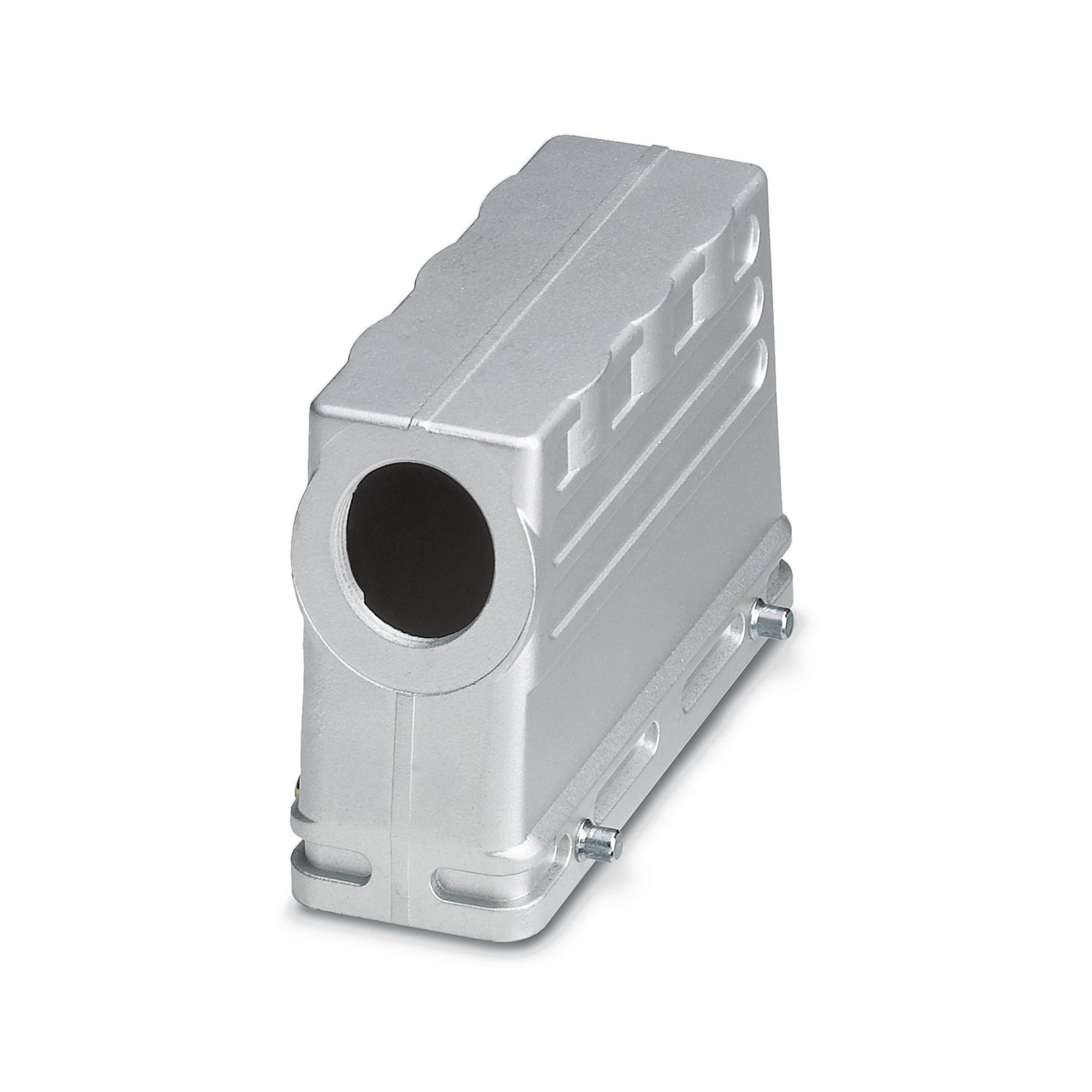

HEAVYCON sleeve housing B24, for double locking latch, height 76 mm, with thread M40, lateral cable outlet, EMC version
Product details
| General | For contact inserts HC-B24, BB46, BBB64, D64, DD108, M |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | EMC |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M40 |
| Shielded | yes |
| Cable outlet | lateral |
| Pg screw connection | none |

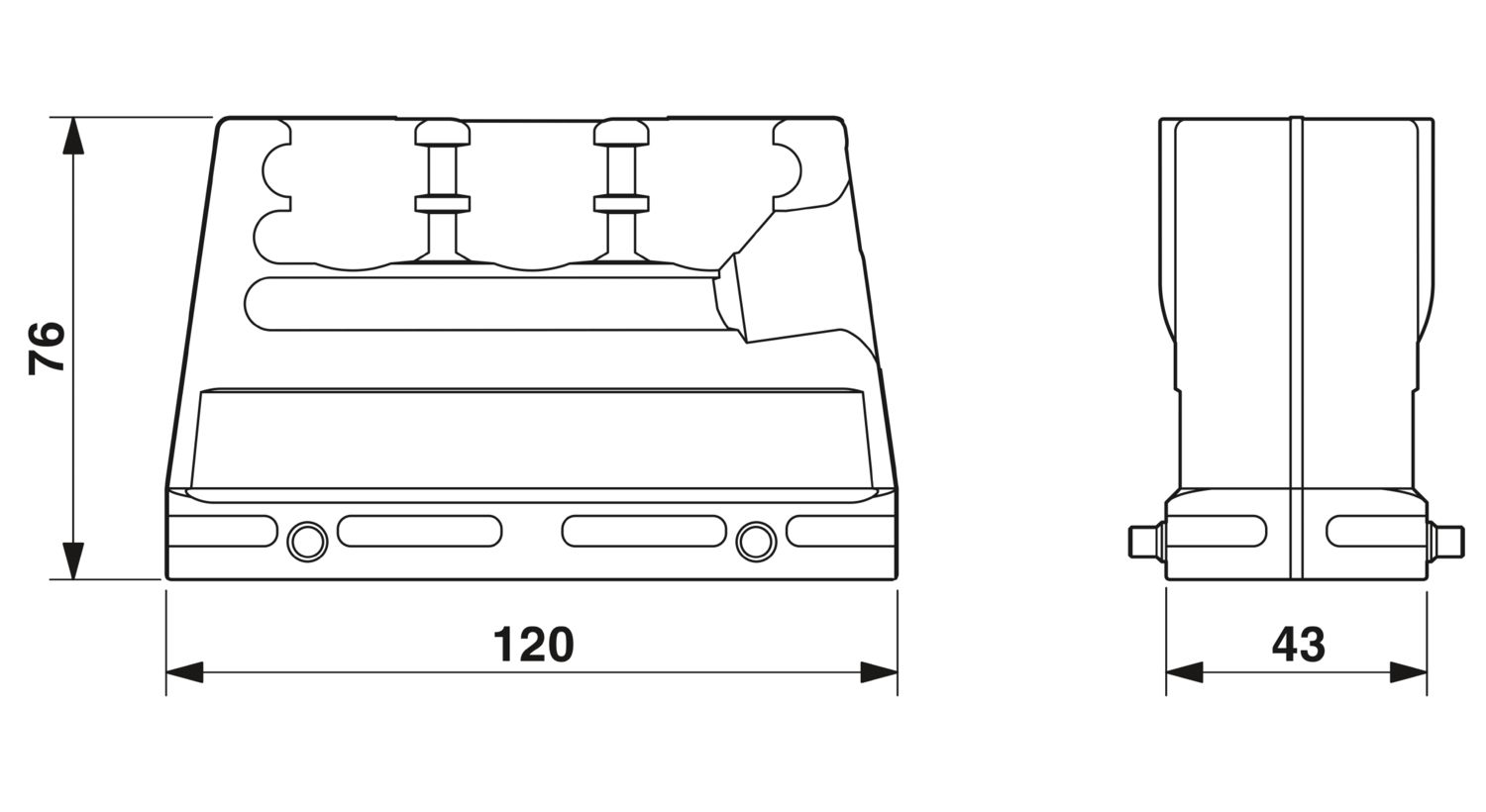

| Dimensional drawing |
|
| Width | 43 mm |
| Height | 76 mm |
| Length | 120 mm |
| Housing material | Die-cast aluminum |
| Housing surface material | EMC coating, silver |
| Mechanical data | |
| Type of the screw connection | 1x M40 |
| Locking type | Pin |
| Assembly note | Sleeve housing fits on the HC-B 24-AMQ-EMV panel mounting base |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
