HC-B 24-AMLD-AL
-
Housing
1645493

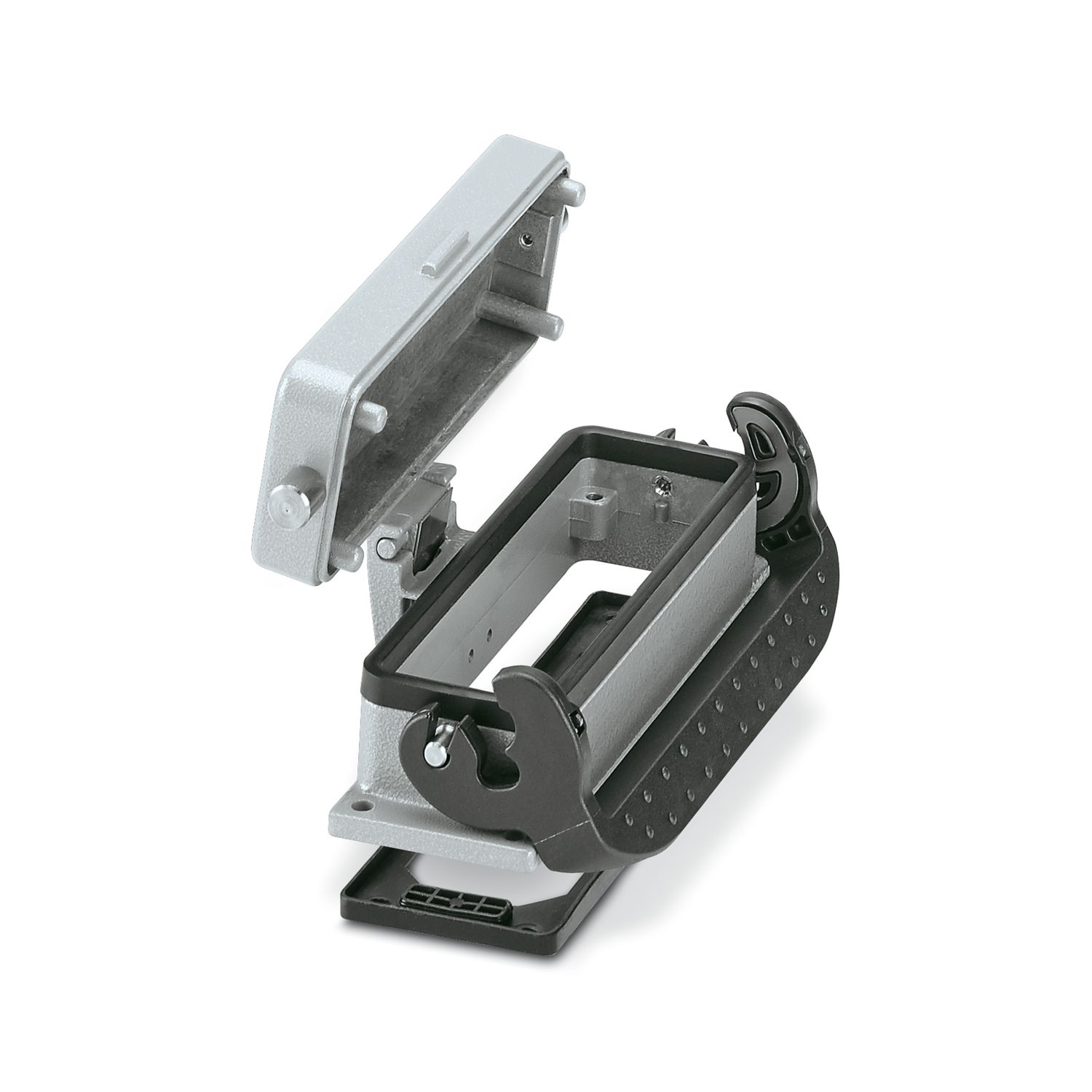

Panel mounting base B24, with single locking latch, material: Die-cast aluminum, protective cover material: Al, height: 29 mm, cable gland: none, protective cover: yes, Standard, with flat gasket
Product details
| General | For contact inserts HC-B24, BB46, BBB64, D64, DD108, M |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B24 |
| Protective cover | yes |
| Shielded | no |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 43 mm |
| Height | 29 mm |
| Length | 140 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 113 mm |
| Seal material | NBR |
| CR | |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | Al |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Locking type | Latch |
| Tightening torque | 1.5 Nm ... 2 Nm (Mounting screw) |
| Ambient conditions | |
| Degree of protection | IP65 (When plugged in) |
| IP54 (with closed protective cover) | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
