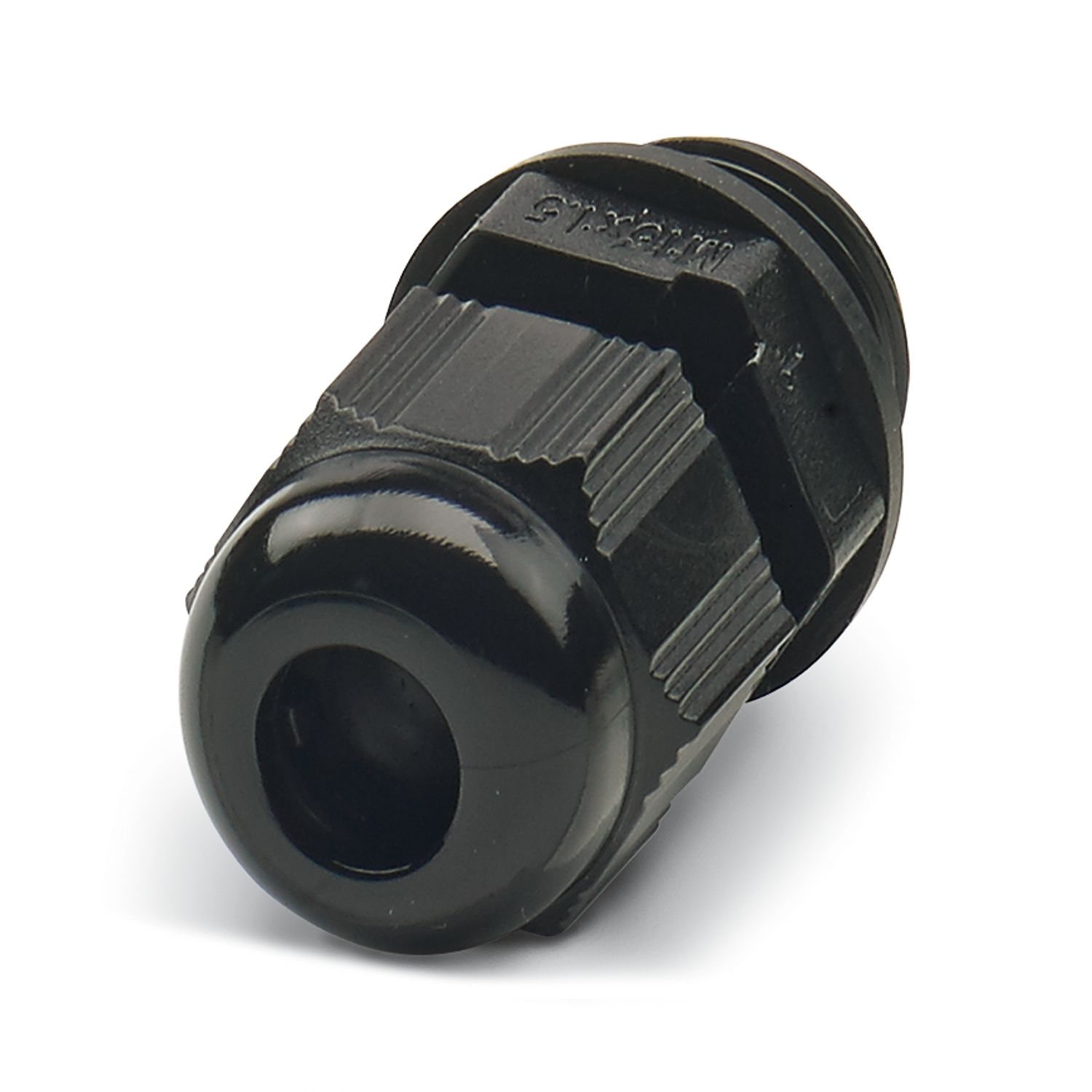

Cable gland with integrated pressure compensation element. Prevents low pressure forming in the housing. Membrane: resistant to water and dirt
G-INVEN-M12-M67N-PNES-BK
-
Cable gland
1424535
Cable gland, material for screw connection: PA, application: Standard, external cable diameter 4 mm ... 7 mm, shielding: no, connecting thread: M12 x 1.5, color: jet black RAL 9005, with pressure compensation element and flat gasket
Product details
| Product type | Cable screw gland |
| Application | Standard |
| No. of conductors | 1 |
| Type | with pressure compensation element and flat gasket |
| Manufacturer | BIMED |
| Manufacturer Designation | BMVG-2S |
| Air flow rate | 25 (l/h at a pressure differential of 70 mbar) |
| Shielded | no |
| Execution of the strain relief | A |
| Category of shock impact | 5 |
| Design, Strain relief | A |

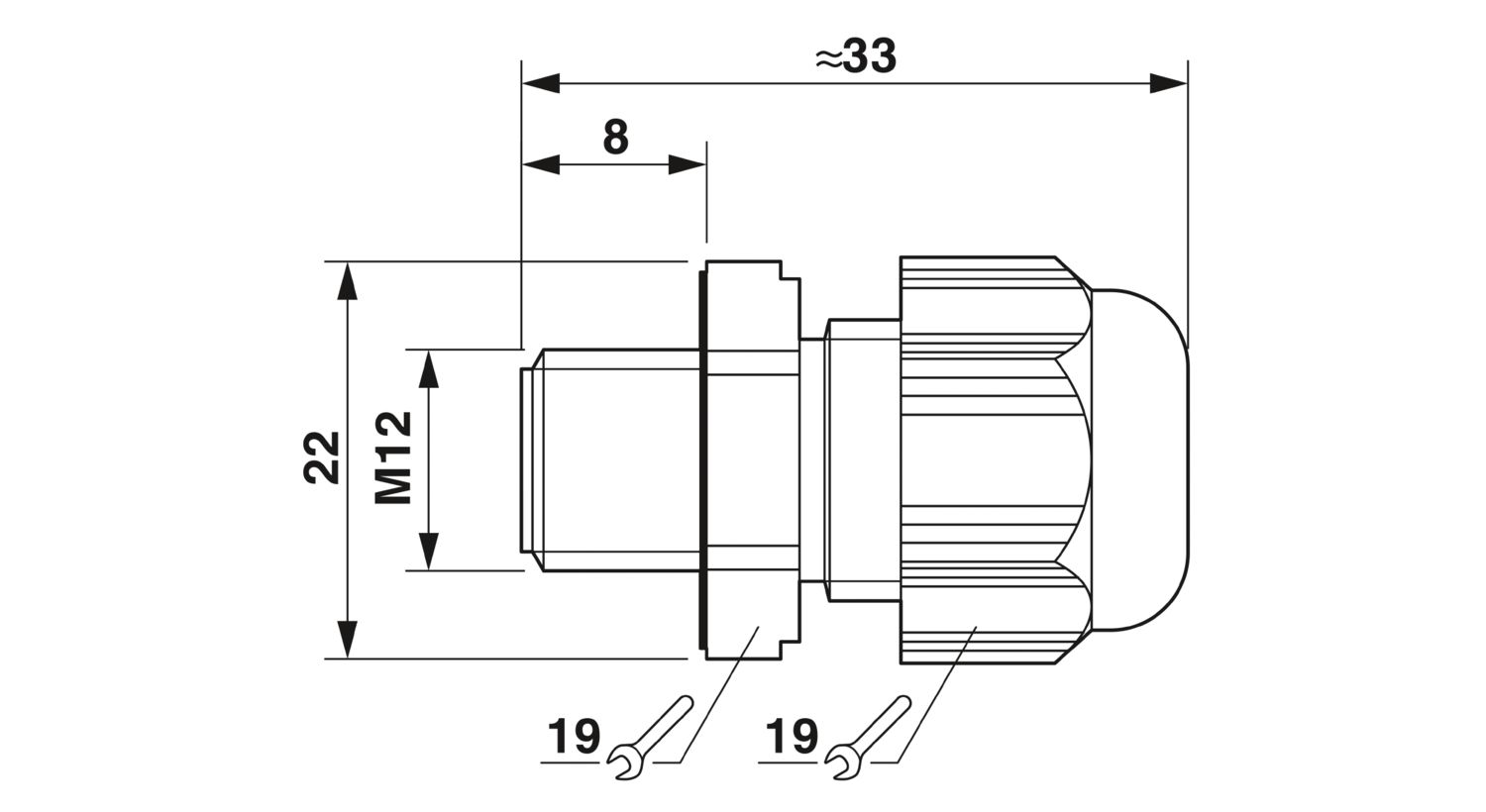

| Dimensional drawing |
|
| Length | 33 mm |
| Length of the connecting thread | 8 mm |
| Hole diameter | 12.1 mm ... 12.2 mm |
| Wrench size, union nut | 19 mm |
| Wrench size, support | 19 mm |
| Thread type connection side | M12 x 1.5 |
| Thread pitch | 1.5 mm |
| Tightening torque | 2 Nm ±0.2 Nm (Cap nut) |
| 1.5 Nm (Support sleeve) |
| Color | black (RAL 9005) |
| Material | PTFE (The material specification refers to the ventilation membrane) |
| Flammability rating according to UL 94 | V2 |
| Seal material Flat gasket | NBR |
| Seal material Cable seal | CR |
| Material for screw connection | PA |
| External cable diameter Cable 1 | 4 mm ... 7 mm |
| External cable diameter | 4 mm ... 8 mm (for UL 514 B) |
| Halogen-free | no |
| Ambient conditions | |
| Degree of protection | IP67 |
| IP66 | |
| Enclosure rating (NEMA) | 1 |
| 4 | |
| 4X | |
| 12 | |
| 13 | |
| Ambient temperature (operation) | -20 °C ... 100 °C (static) |
cUL Recognized
Approval ID: E199260UL Recognized
Approval ID: E199260
Your advantages
Reduces the formation of condensation
Screw connection with integrated pressure compensation element
Plastic material conforms to UL 746C f1
